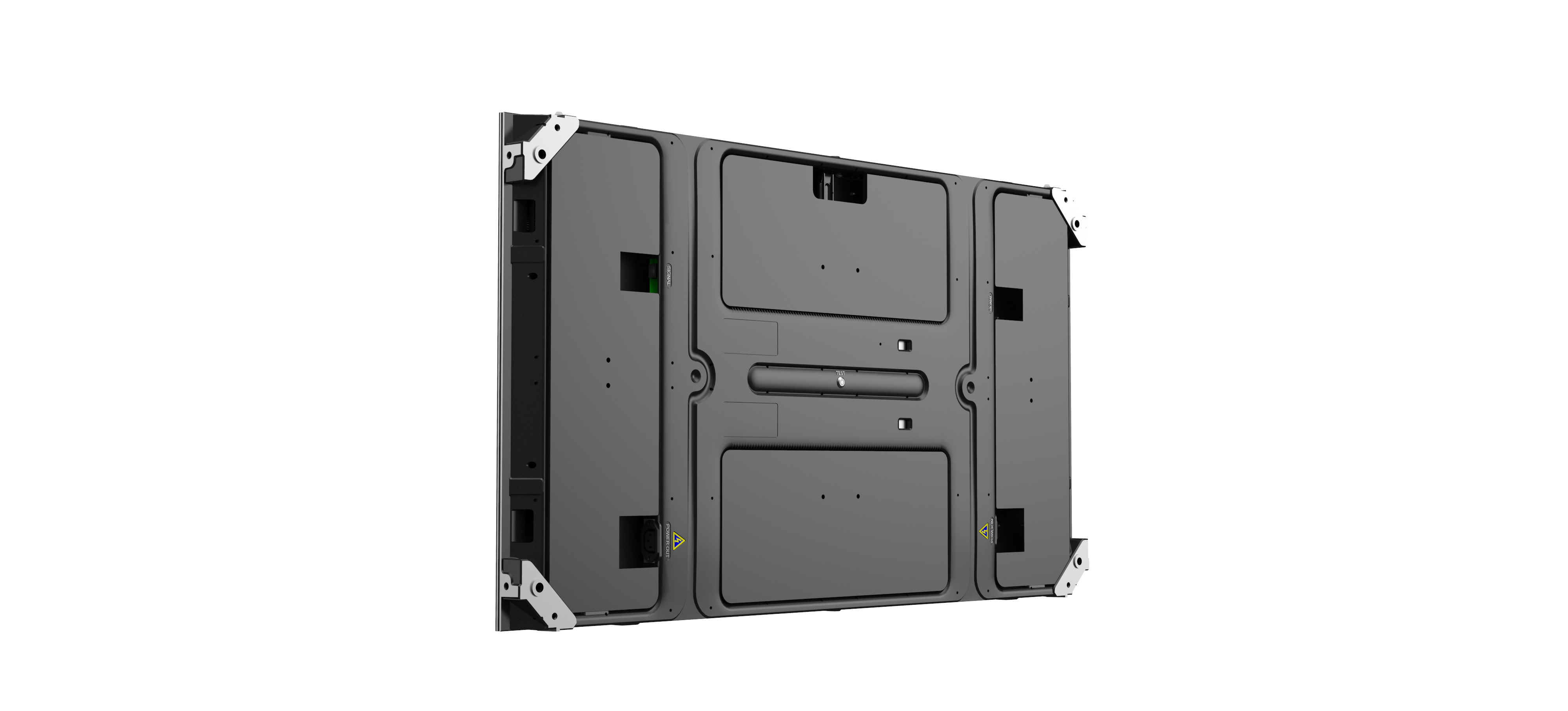

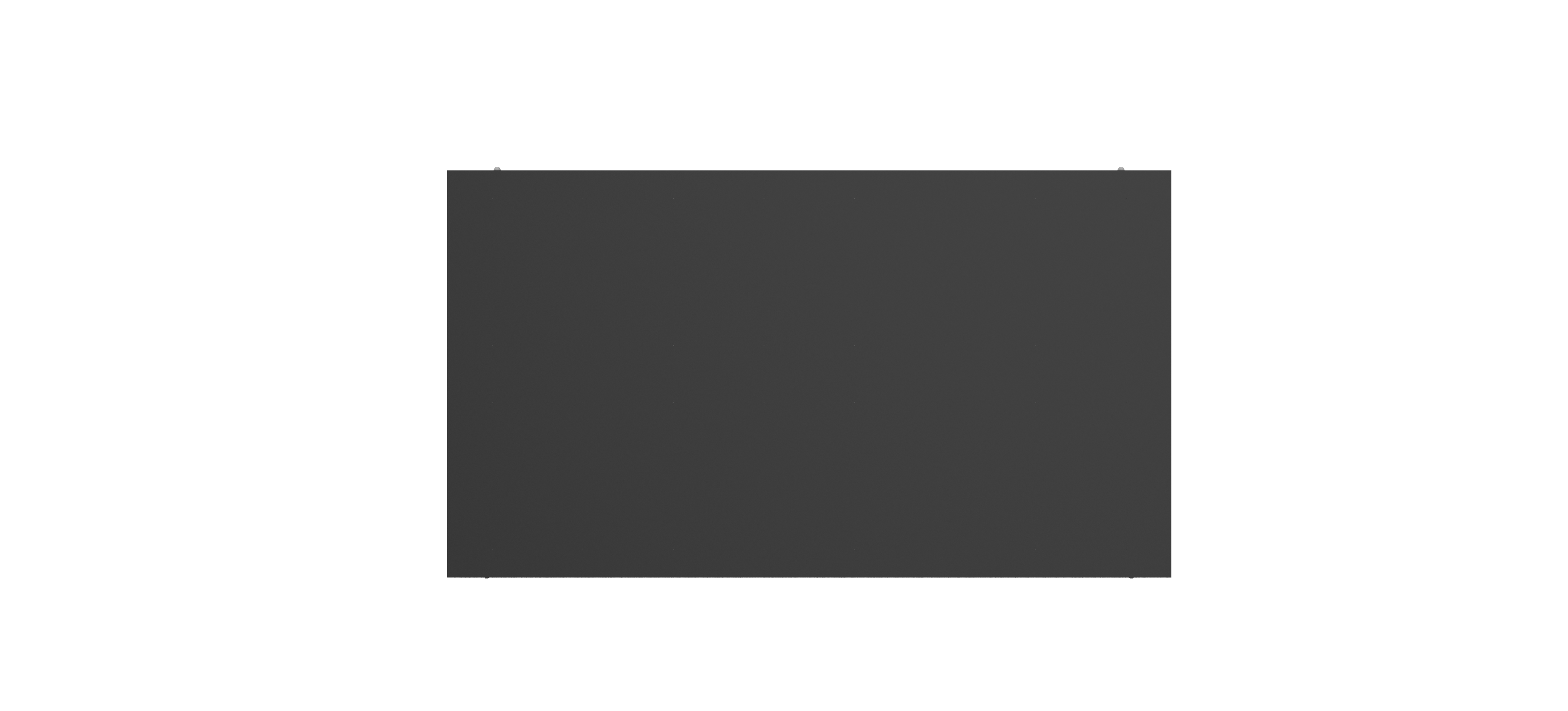

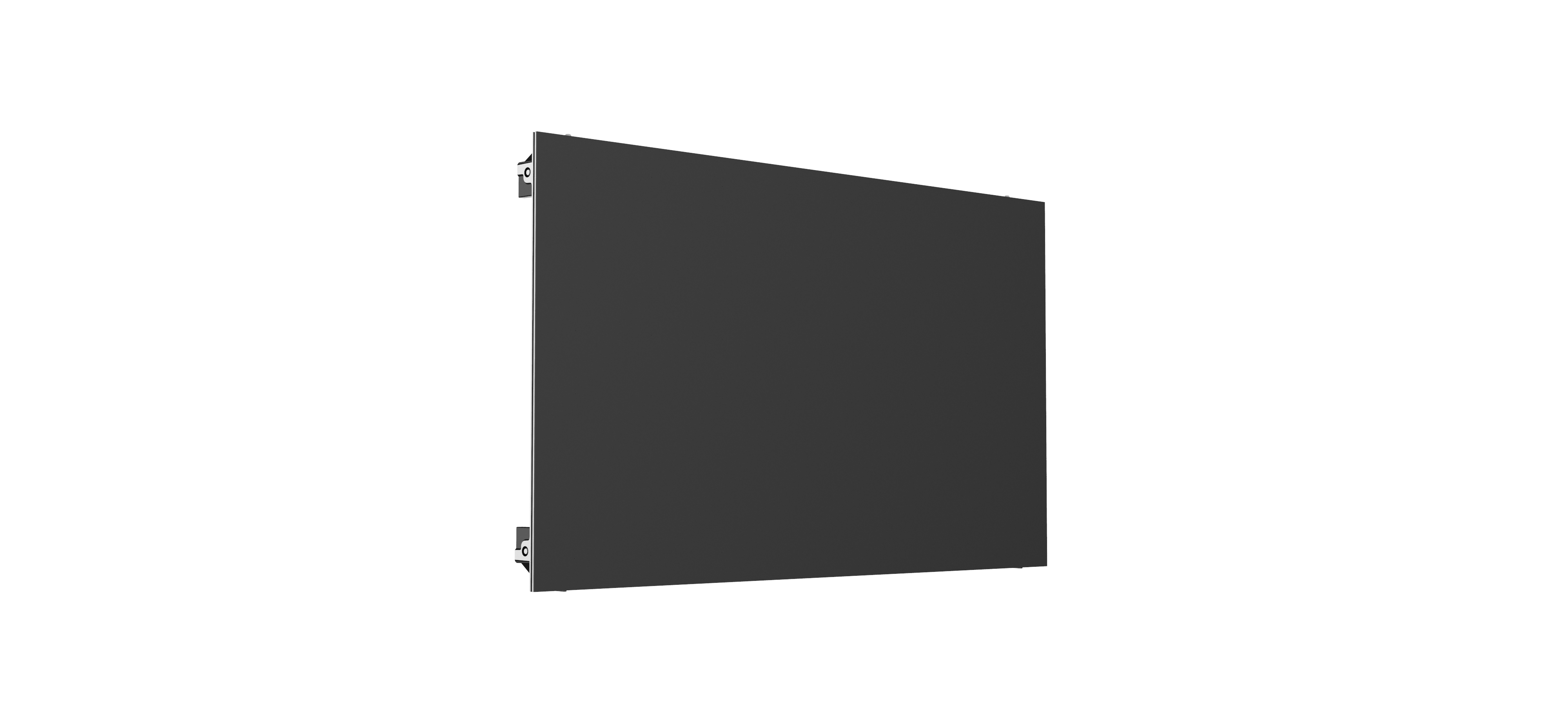

BIM MAX Series
16:9 Golden Ratio Classic LED Display
P1.6/P1.9/P2.6/P4 16:9 Golden Ratio Cabinet
Friendly 16:9 Cabinet
Designed in 16:9 ratio, BIM MAX Series is ultra friendly to assemble LED walls in 2K, 4K,8K, etc

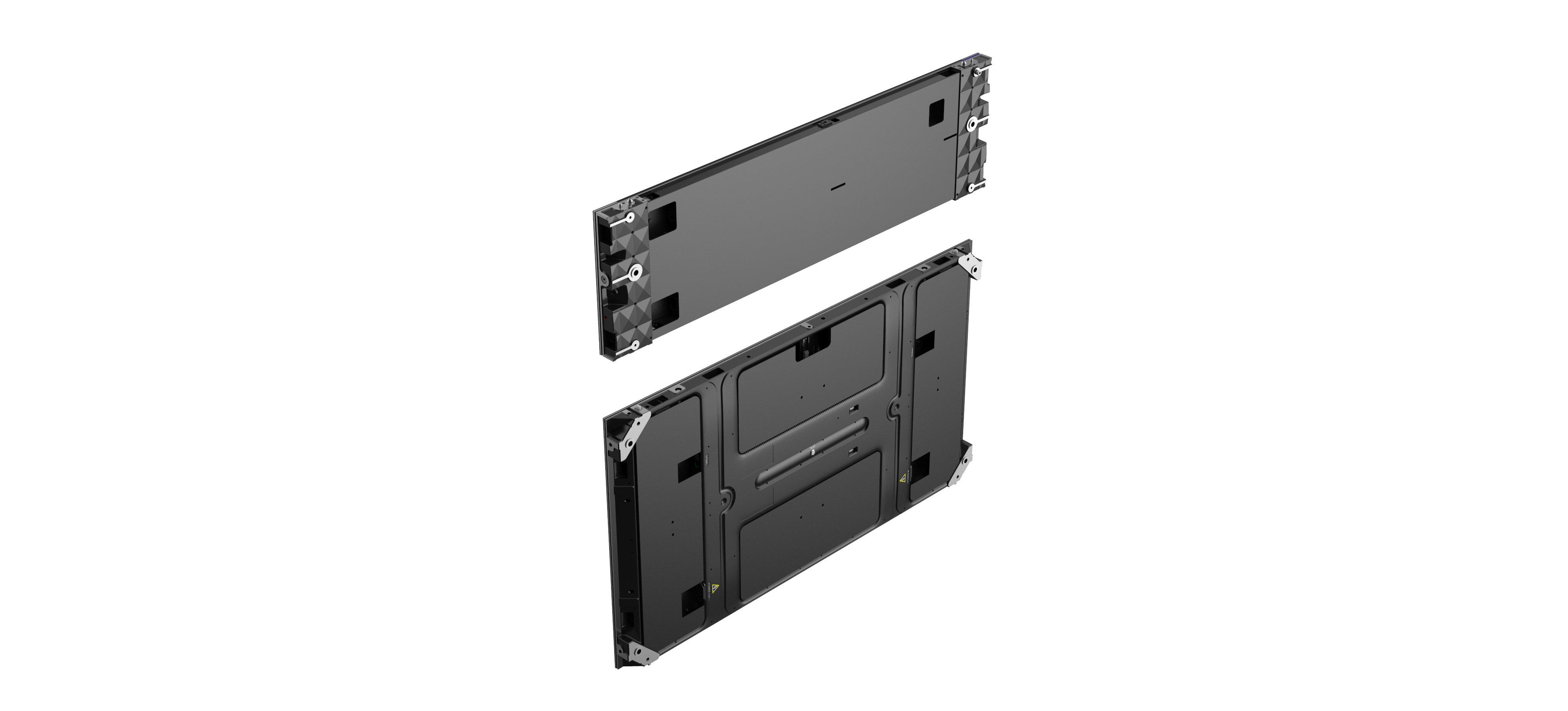

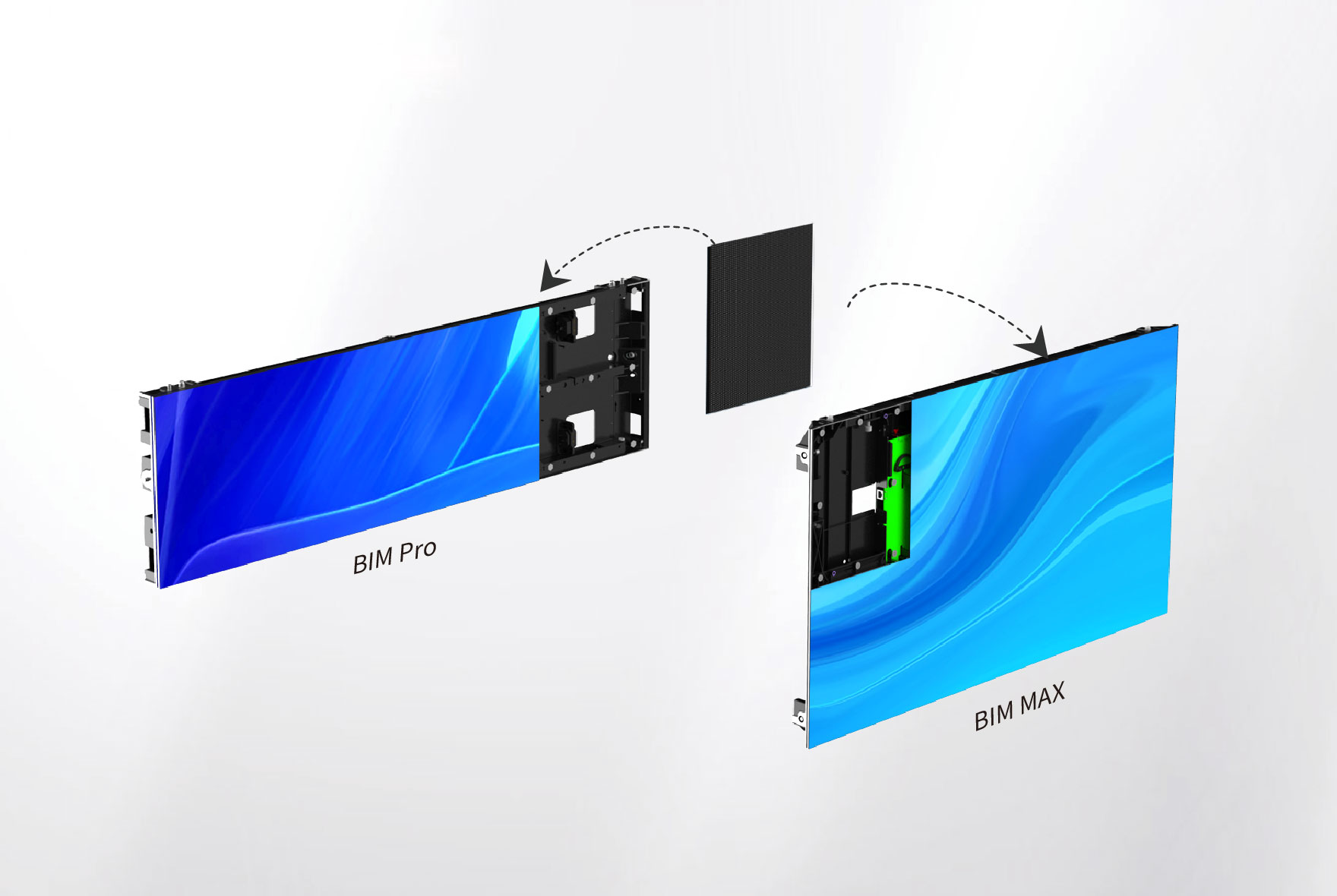

Universal Modules, Flexible Splicing
BIM MAX Series and BIM Pro Series share the universal modules and can be mixedly spliced up and down

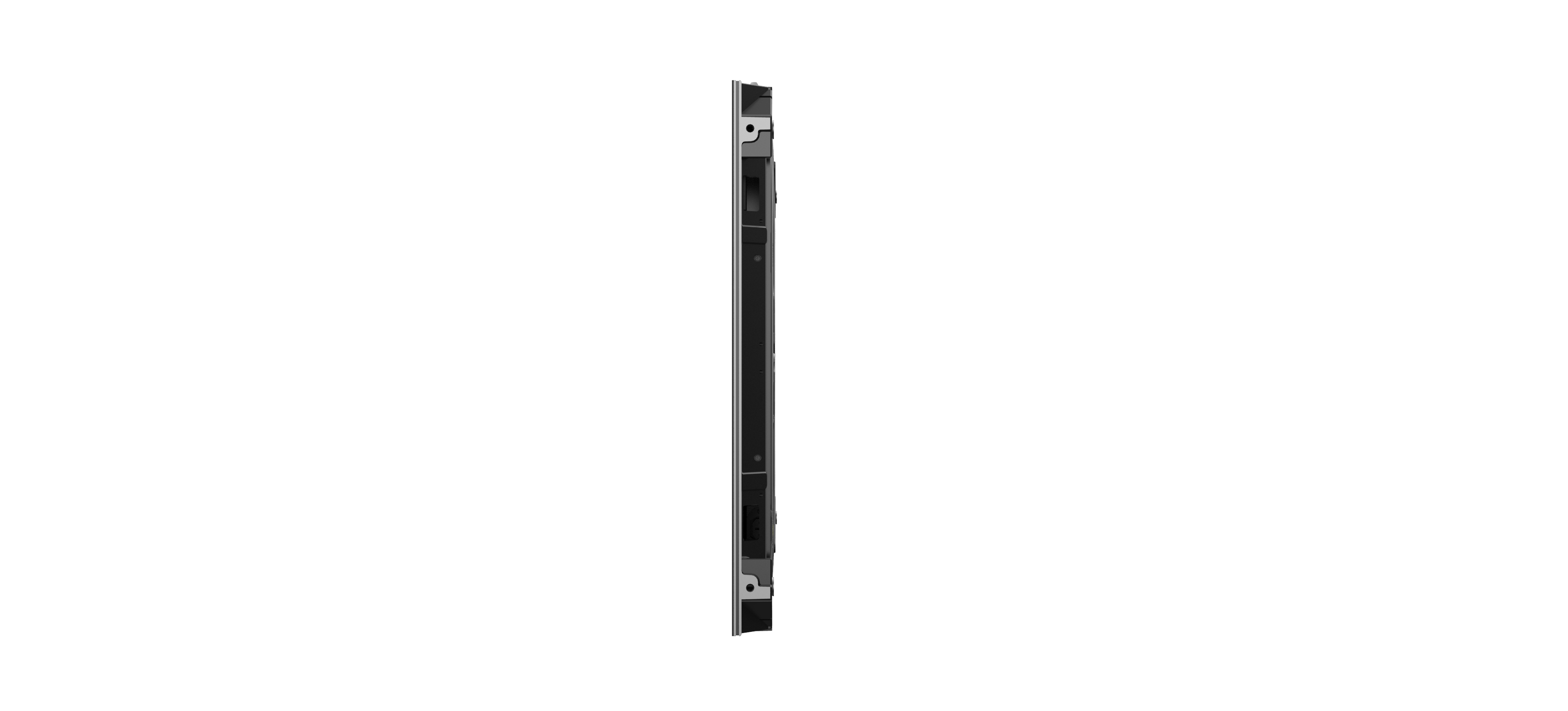

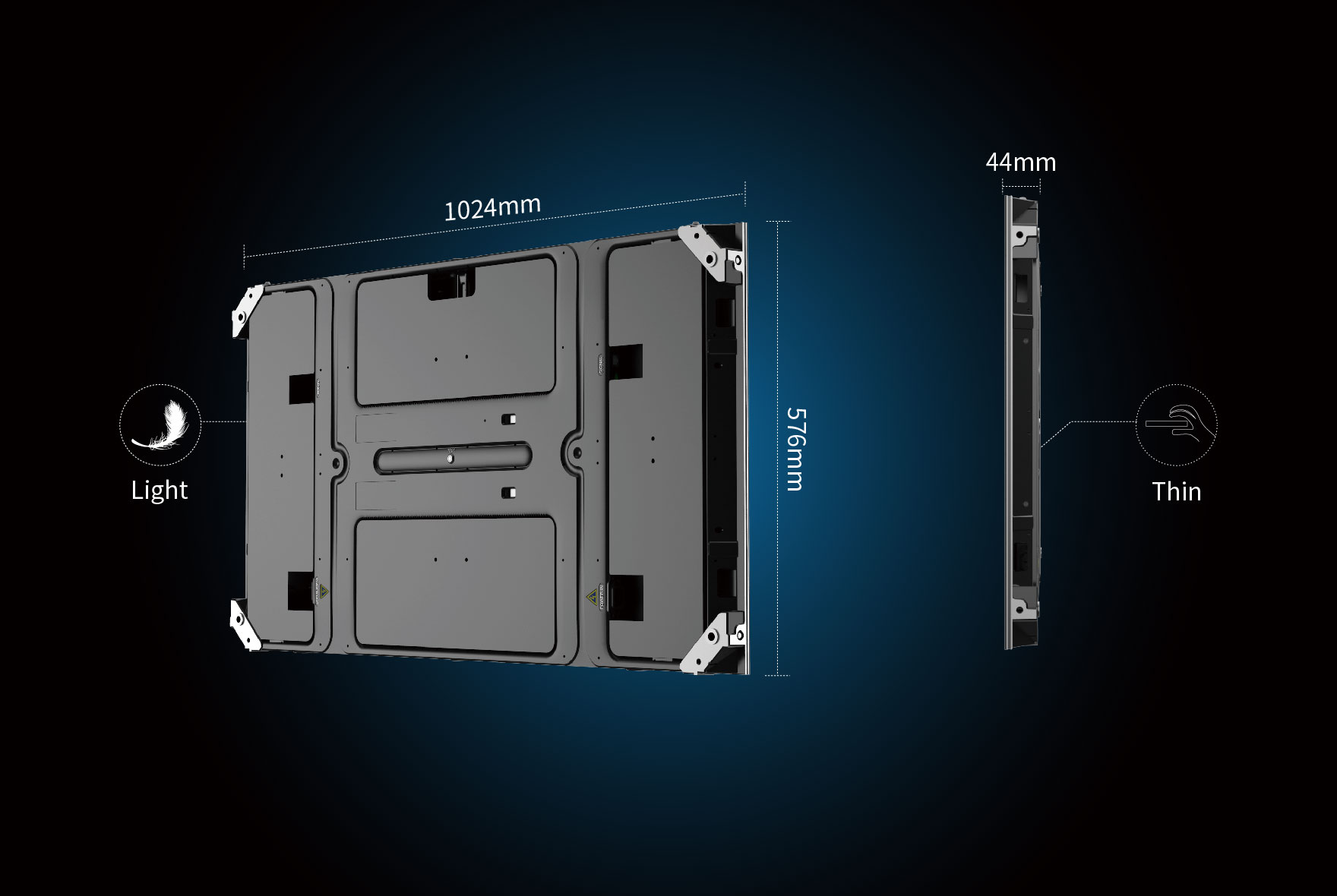

Slim & Lightweight Design
Ultra-thin cabinet with 11.6Kg/pc only makes more effortless installation & maintenance

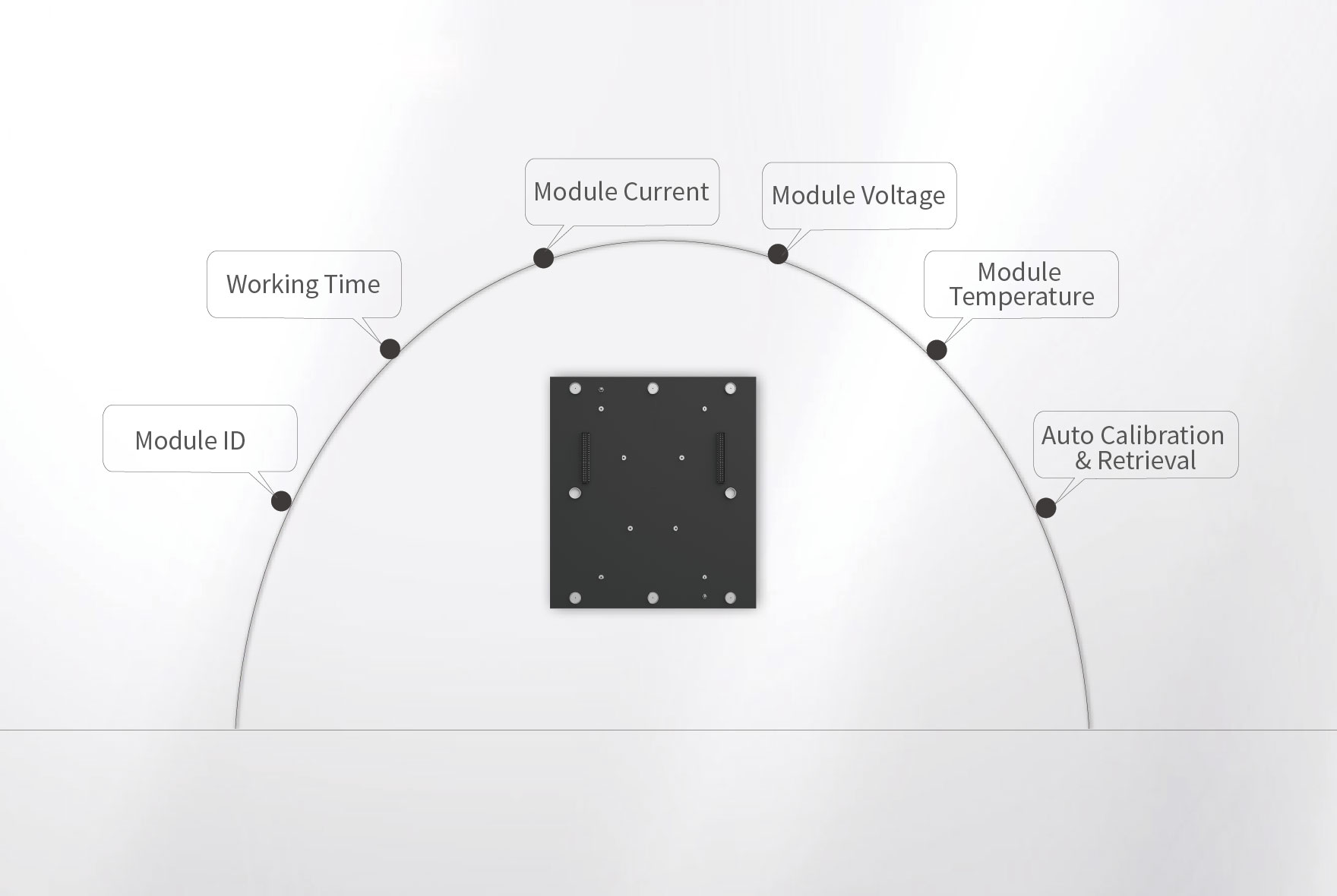

Intelligent Modules(Optional)
Modules are built in with calibration data and can automatically retrieve data after module replacement
Bigger, Faster & More Cost Saving
With bigger-sized cabinet, BIM MAX Series facilitates more cost-effective solution with faster installation to save your cost

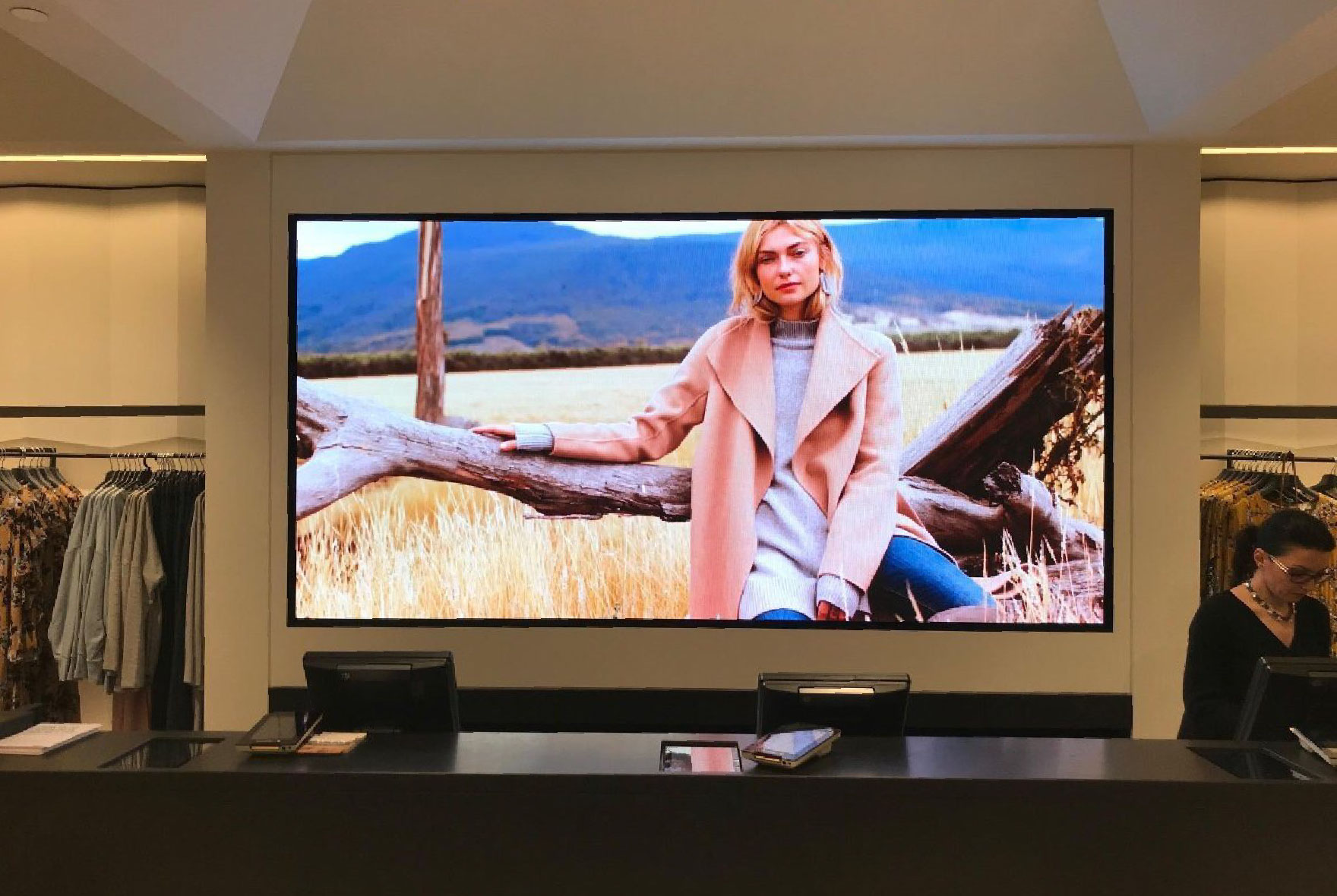

Impress Your Viewers with Superb Visuals
Ultra-high grayscale, refresh rate, contrast ratio with 160° wide views conspire to deliver excellent images to capture your viewers’ attention with your content.
Product Specifications
*Swipe right to see all
| Model | BIM MAX1.6 | BIM MAX1.9 | BIM MAX2.6 | BIM MAX4 |
| Pixel Pitch (mm) | 1.6 | 1.9 | 2.6 | 4 |
| Panel Size (mm) | 1024*576*42.5 | |||
| Panel Resolution | 640*360 | 520*290 | 384*216 | 256*144 |
| Weight (Kg/pc) | 11.6 | |||
| Brightness (nits) | 700-800 | 700-800 | 700-800 | 800-900 |
| Panel Material | Die-casting aluminum | |||
| Serviceability | Front | |||
