BIM Plus-X Series
Award-Winning X-Generation Indoor LED Display
Stable Operation | Multiple Sizes | 90° Rotation | Creative Splicing | High Brightness | Award Winner

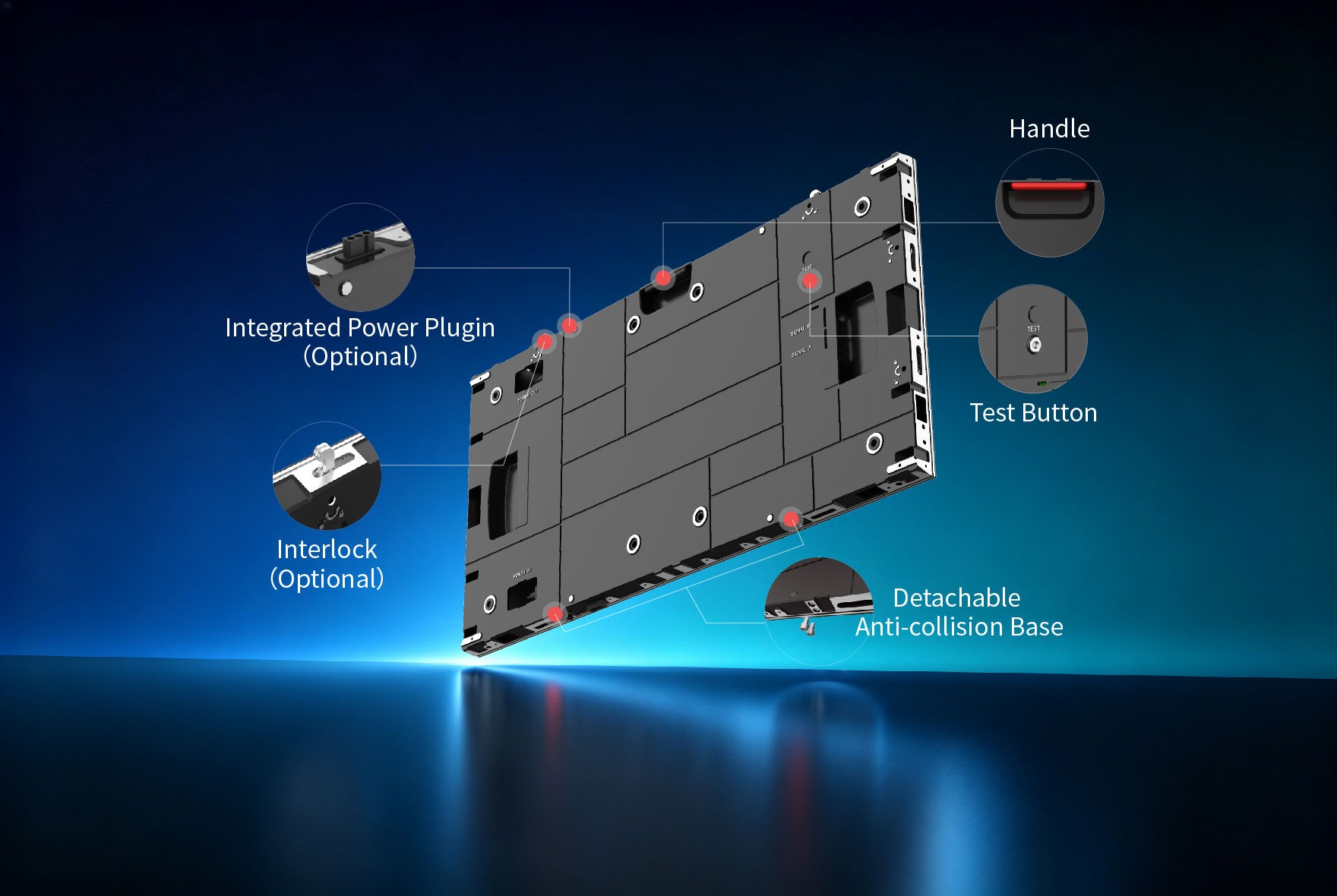

“X”tremely Considerate -- Detail Matters
The one-piece molding die-cast panel is crafted with more ergonomic details to elevate user experience

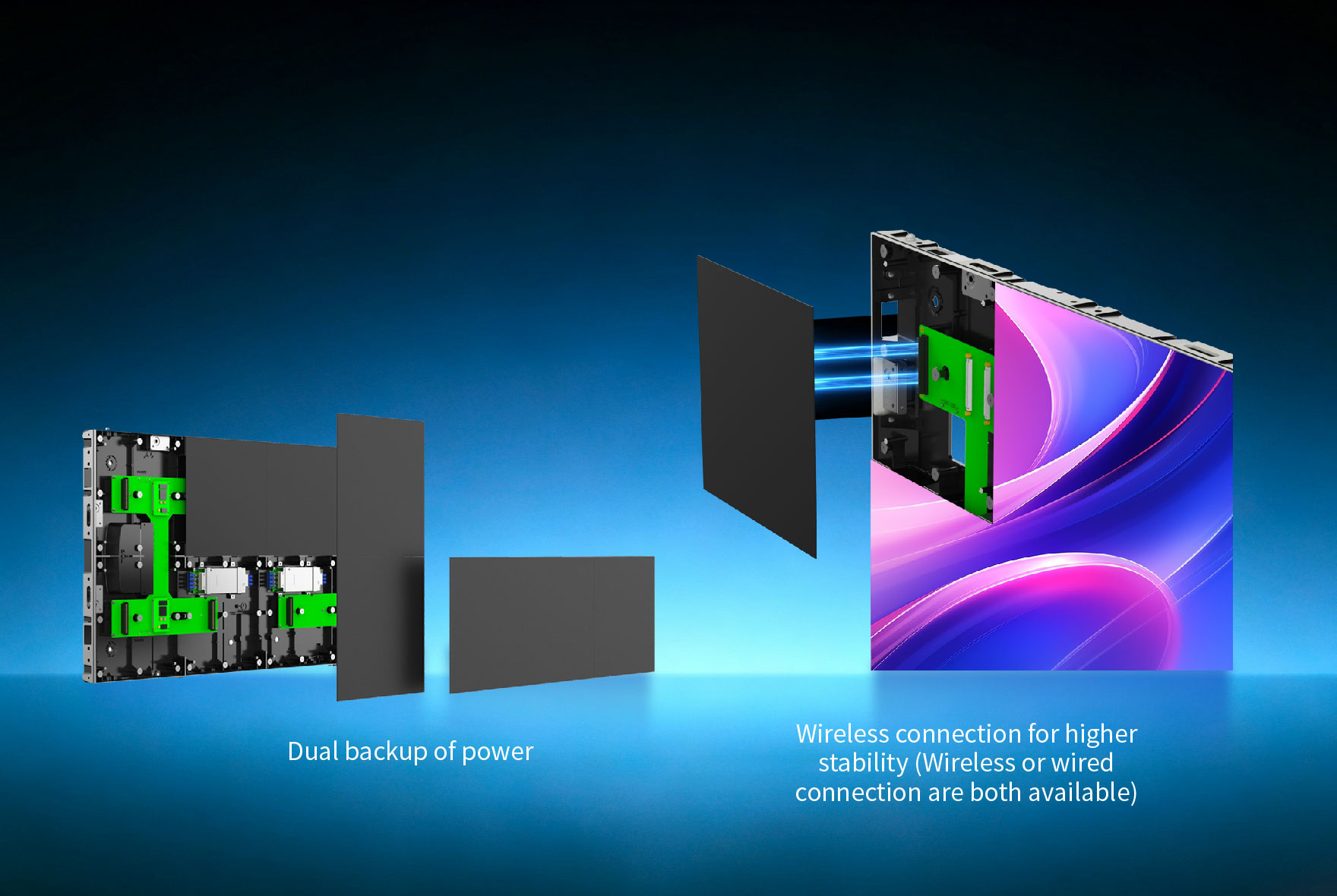

“X”tremely Stable -- Wireless Connection, Dual Backup
Wireless module connectivity grants higher stability during prolonged use; Dual backup of receiving card and power supply is optional to prevent sudden disruptions and maintain uninterrupted display.

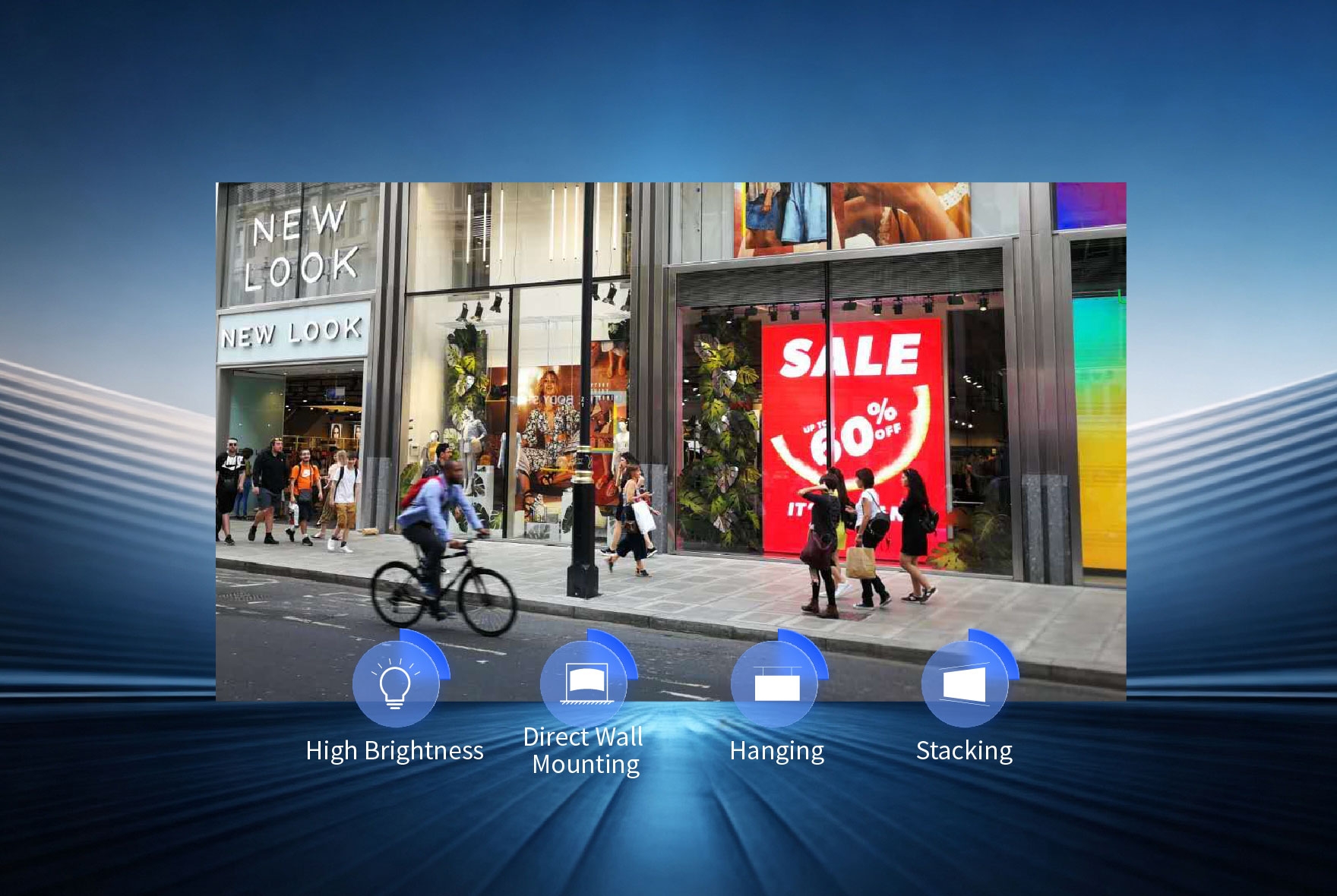

“X”tremely Versatile -- Multi-Scenario Application
Allowing diverse installation including direct wall mounting, stacking and hanging for different environments, BIM Plus-X also offers high-brightness models to fit in semi-indoor application like shop windows and storefronts.

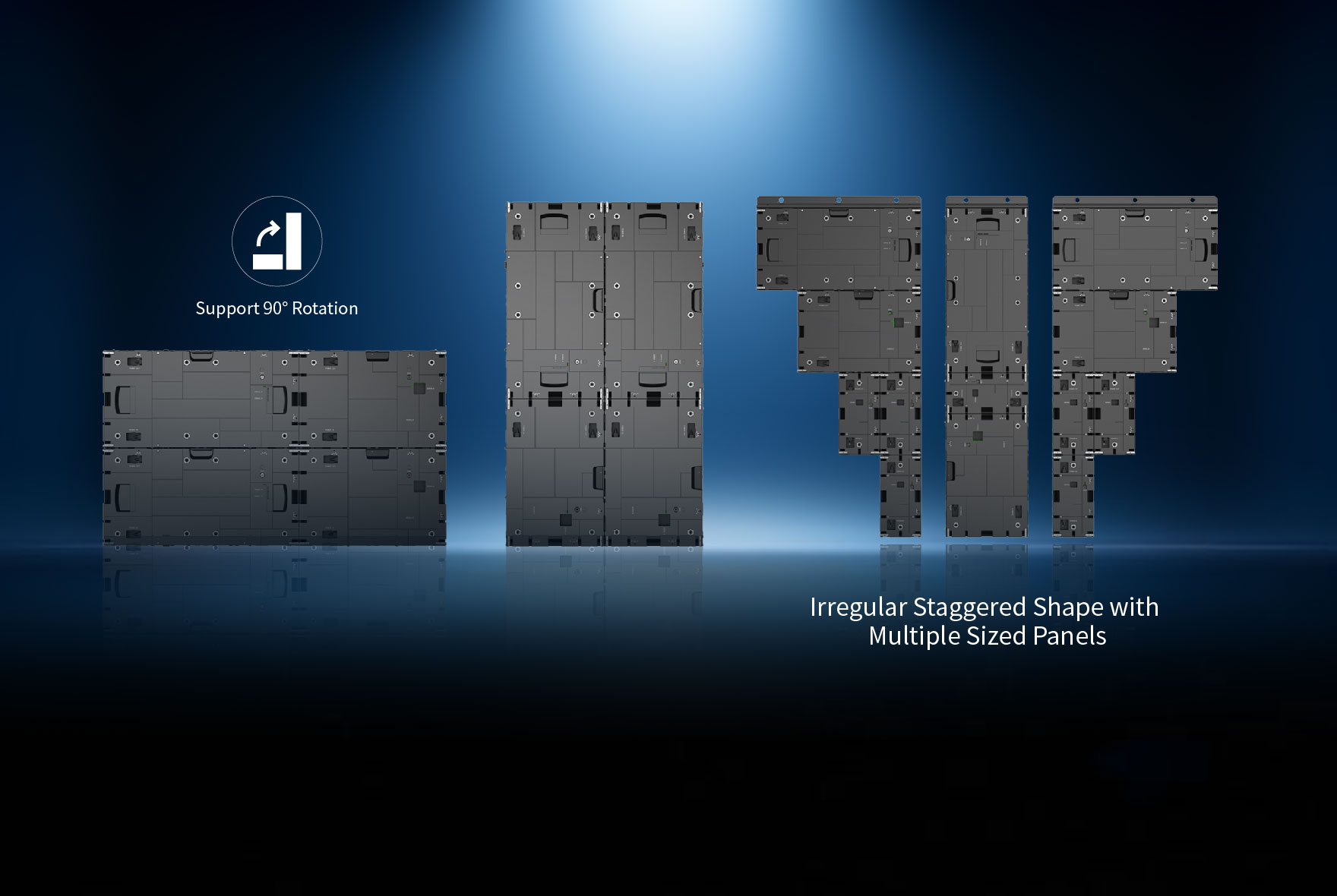

“X”tremely Flexible -- 90° Rotation
Thanks to the center-symmetrical design of modules, BIM Plus-X allows 90° rotated assembly to stagger for more installation without color test

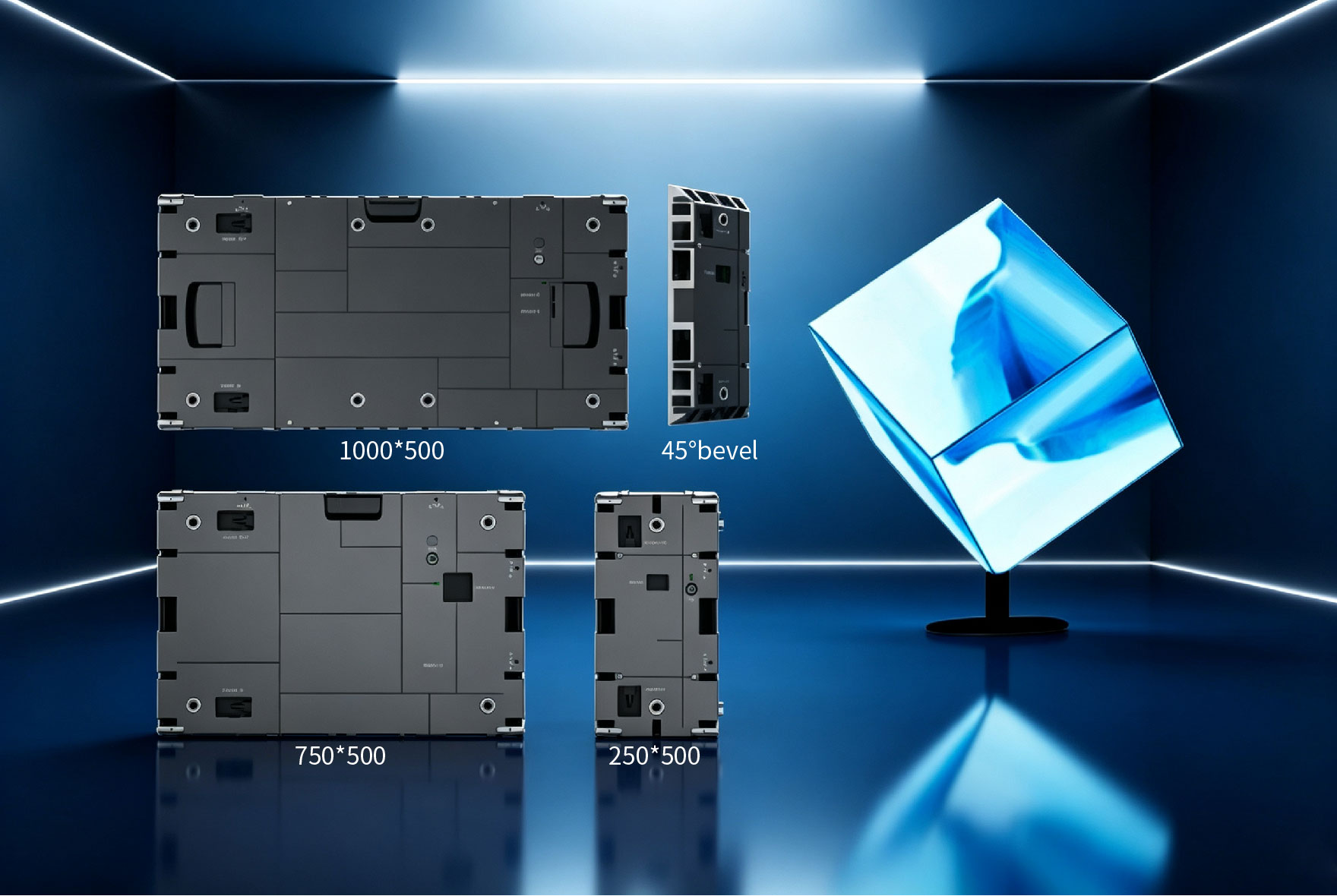

“X”tremely Creative -- 45° Bevels
Special 45° bevel-cut panels with multiple sized panels unlock more flexible installations like L-shape, pilliar, hexahedron, etc

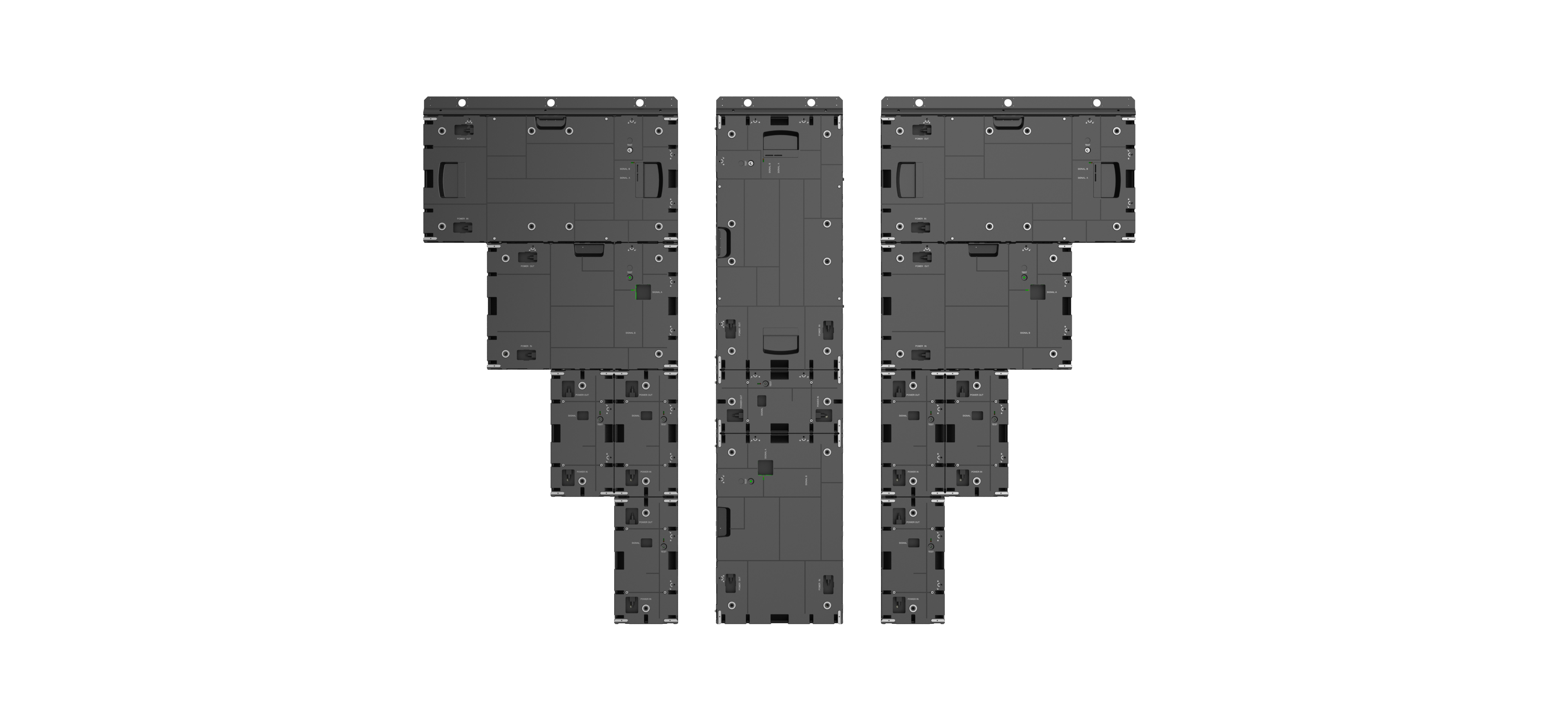

“X”tremely Ingenious -- Mixed Splicing at Will

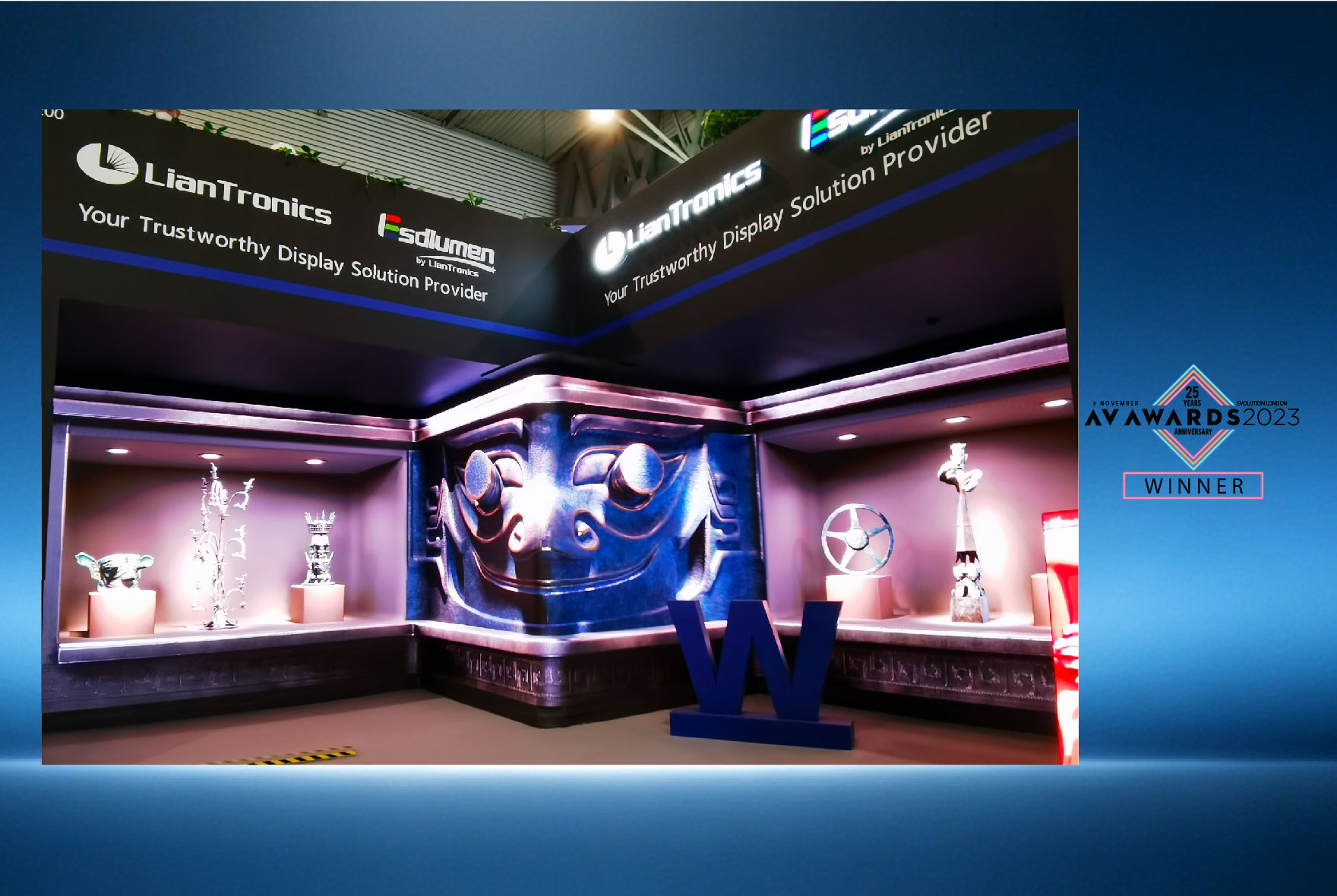

BIM Plus-X enables to splice with BIM MIN & BIM Plus and share modules with BIM Plus for creative shape splicing like AV Awards wining display -- “THE WOW” 3D display
Product Specifications
*Swipe right to see all
| Model | BIM Plus-X1.5 | BIM Plus-X1.9 | BIM Plus-X2.5 | BIM Plus-X2.6 | BIM Plus-X3.1 | BIM Plus-X3.9 | BIM Plus-X5.2 |
| Pixel Pitch (mm) | 1.5 | 1.9 | 2.5 | 2.6 | 3.1 | 3.9 | 5.2 |
| Panel Size (mm) | 1000*500*42 / 750*500*42 / 250*500*42 | ||||||
| Panel Resolution | 640*320/480*320/ 160*320 | 512*256/384*256/ 128*256 | 400*200/300*200/ 100*200 | 384*192/288*192/ 96*192 | 320*160/240*160/ 80*160 | 256*128/192*128/ 64*128 | 192*96/144*96/ 48*96 |
| Weight (Kg/pc) | 11/8/3.5 | ||||||
| Brightness (nits) | 600 | 800 | 800/3000 | ||||
| Panel Material | Die-casting aluminum | ||||||
| Serviceability | Front | ||||||
