VMQ Series (Front Maintenance) -  LED Wall

Upgraded Proven Fine-Pitch LED Display


High-end industrial design, high practicality, high appearance

Aesthetics & Practicability into One

Simplified Assembly, Fast Installation

Excellent Visuals As Always

Friendly Full Front Maintenance

Advanced Technologies, Higher Stability

All-Around Protection



Aesthetics & Practicability into One

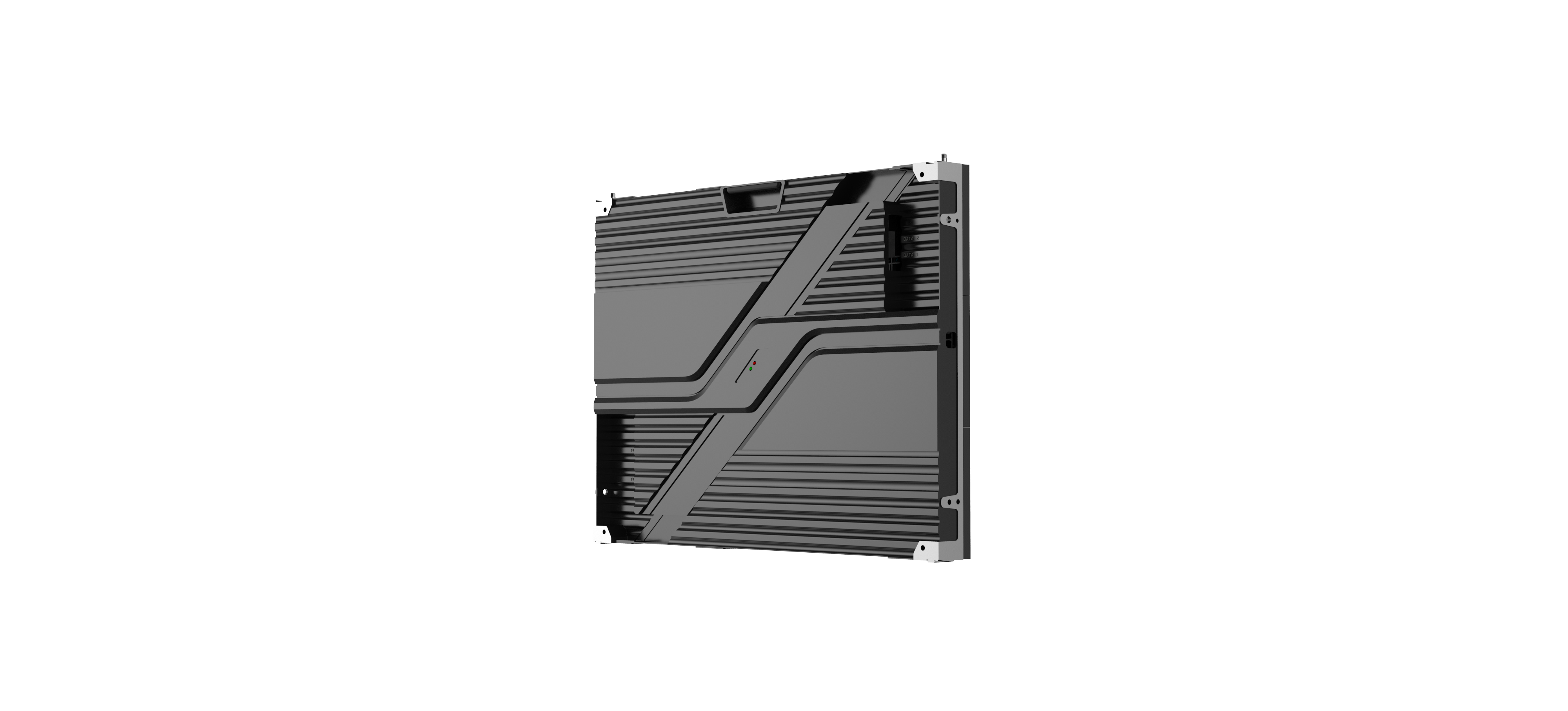

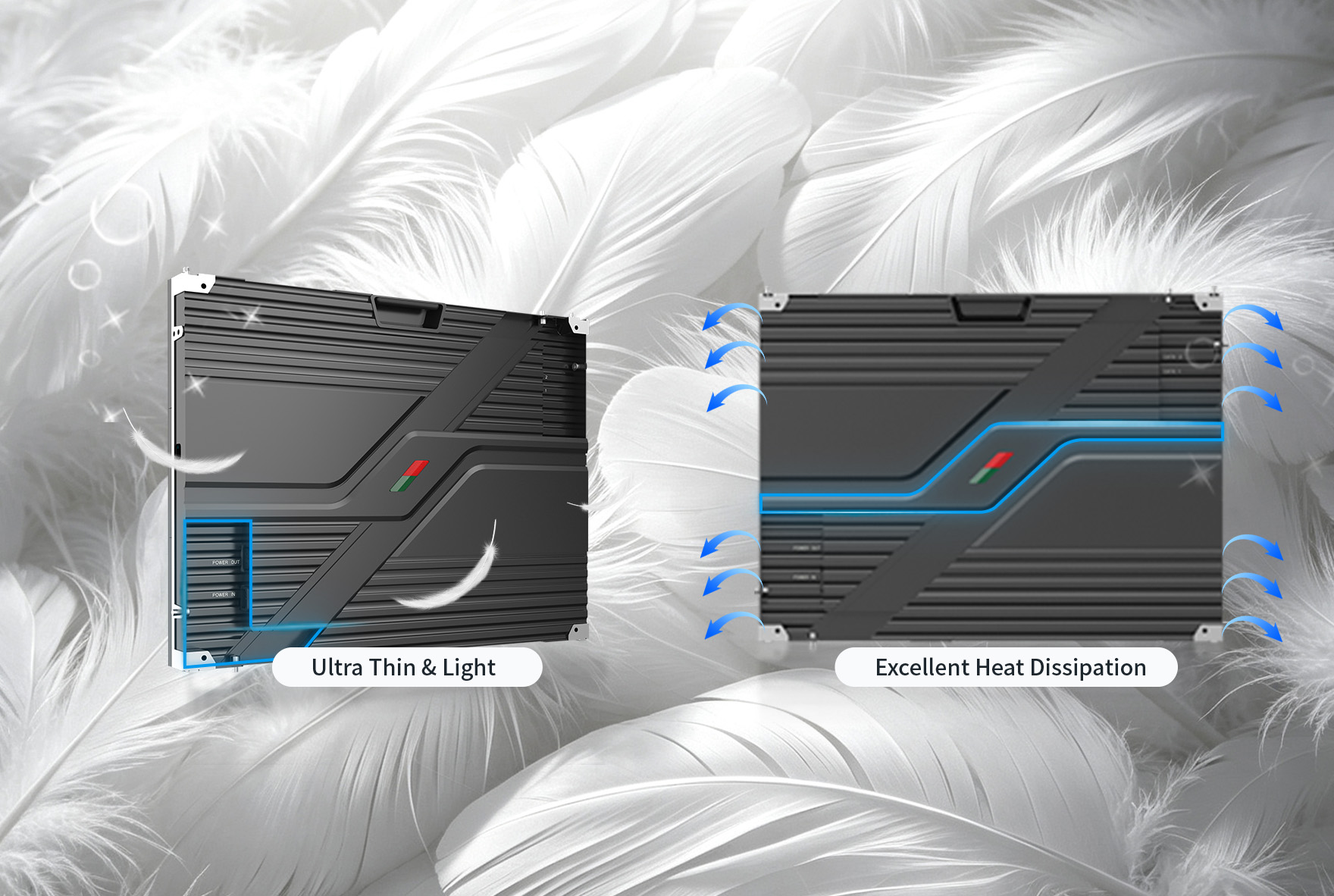

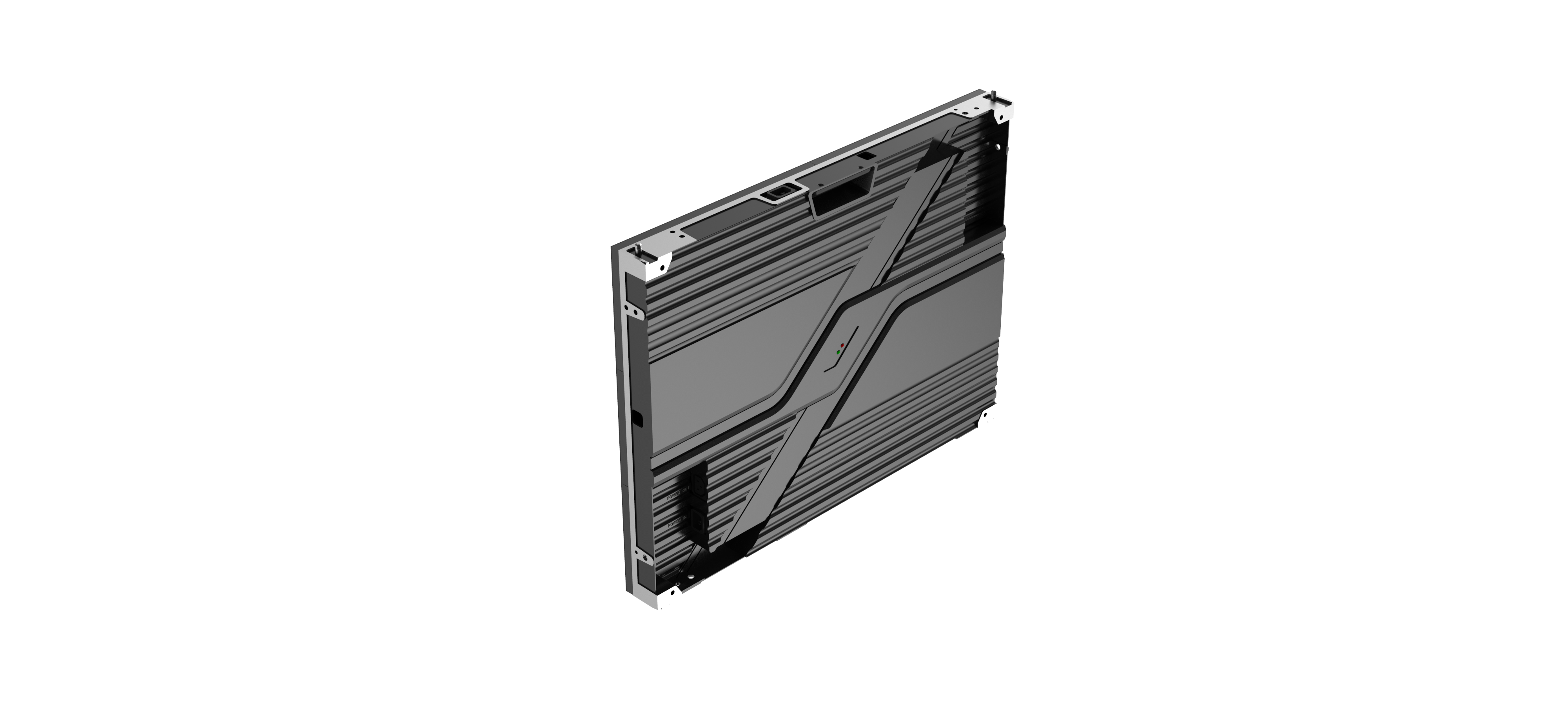

Upgraded thin & light die-cast cabinet saves your space to harmonize with the surroundings; Light beam patterned back shell with “L” alphabetical aesthetics expands the cooling area for excellent heat dissipation.

Simplified Assembly, Fast Installation

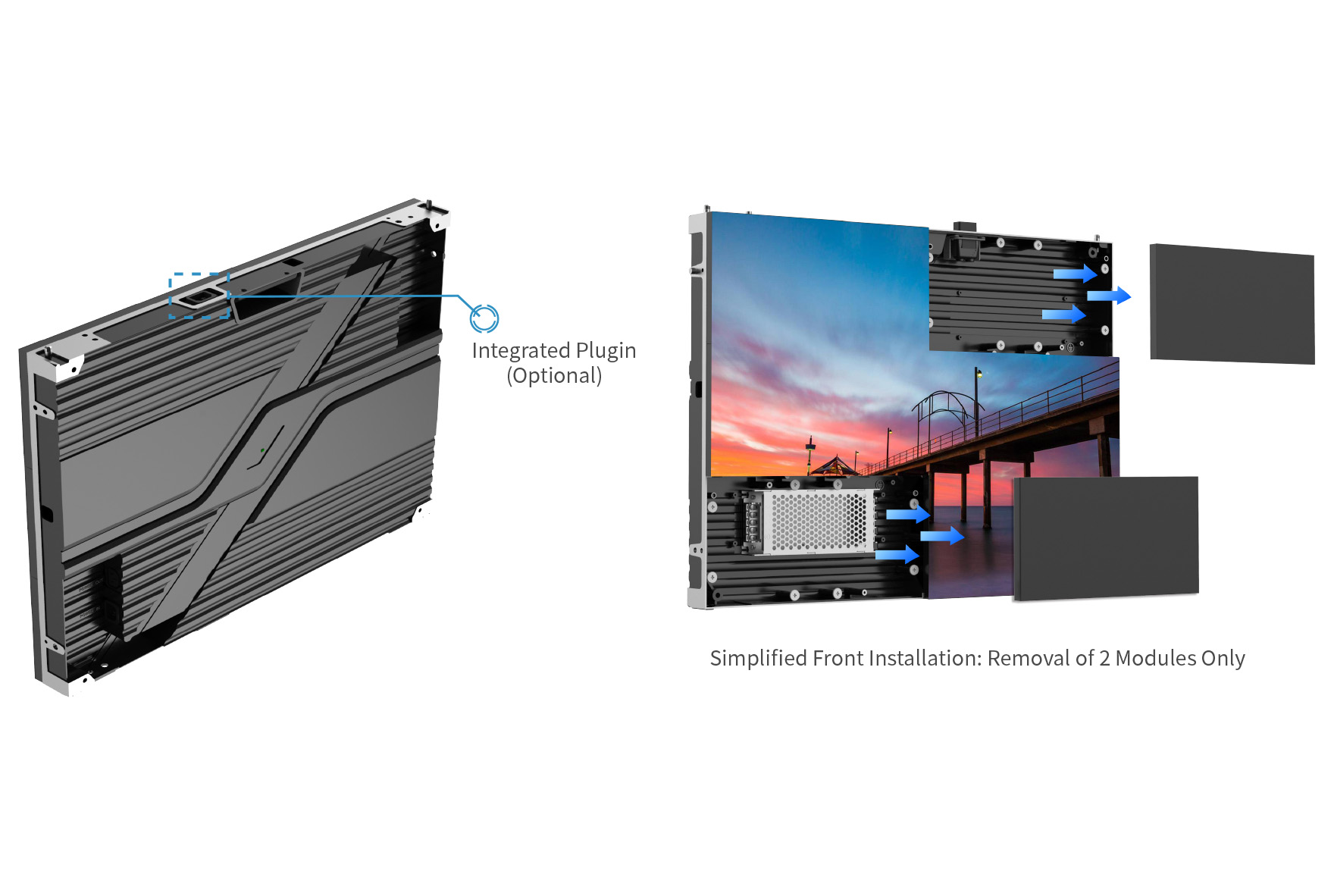

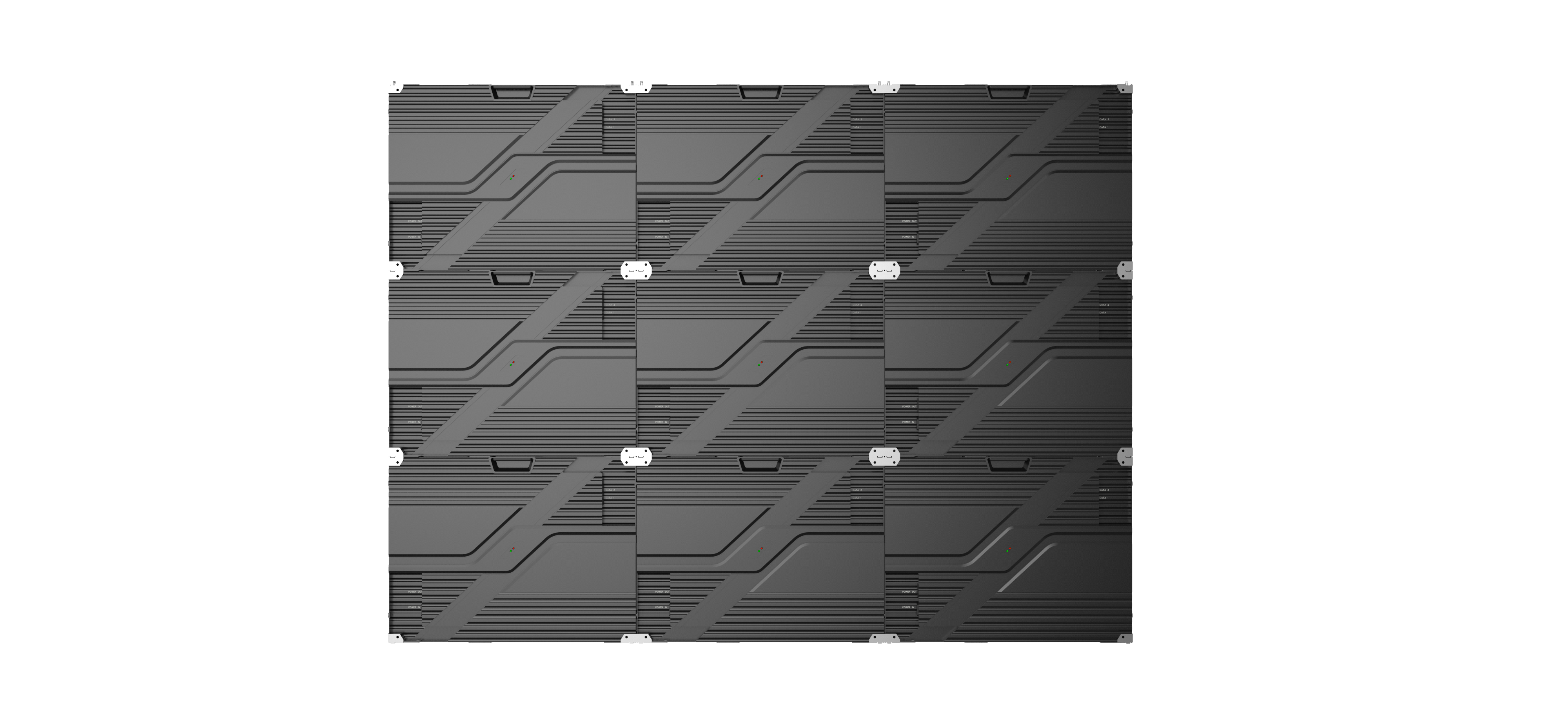

Optional integrated plugin connection between cabinets speeds up splicing efficiency and stabilizes transmission as well; Installation procedures are simplified for easy and quick setup of the LED screen.


digital sign board with compact outlook
Excellent Visuals As Always

Patented smart inkjet craftsmanship brings over 8000:1 contrast to present true-to-life images; 3840Hz high refresh rate smoothens broadcasting without flickering.

Friendly Full Front Maintenance

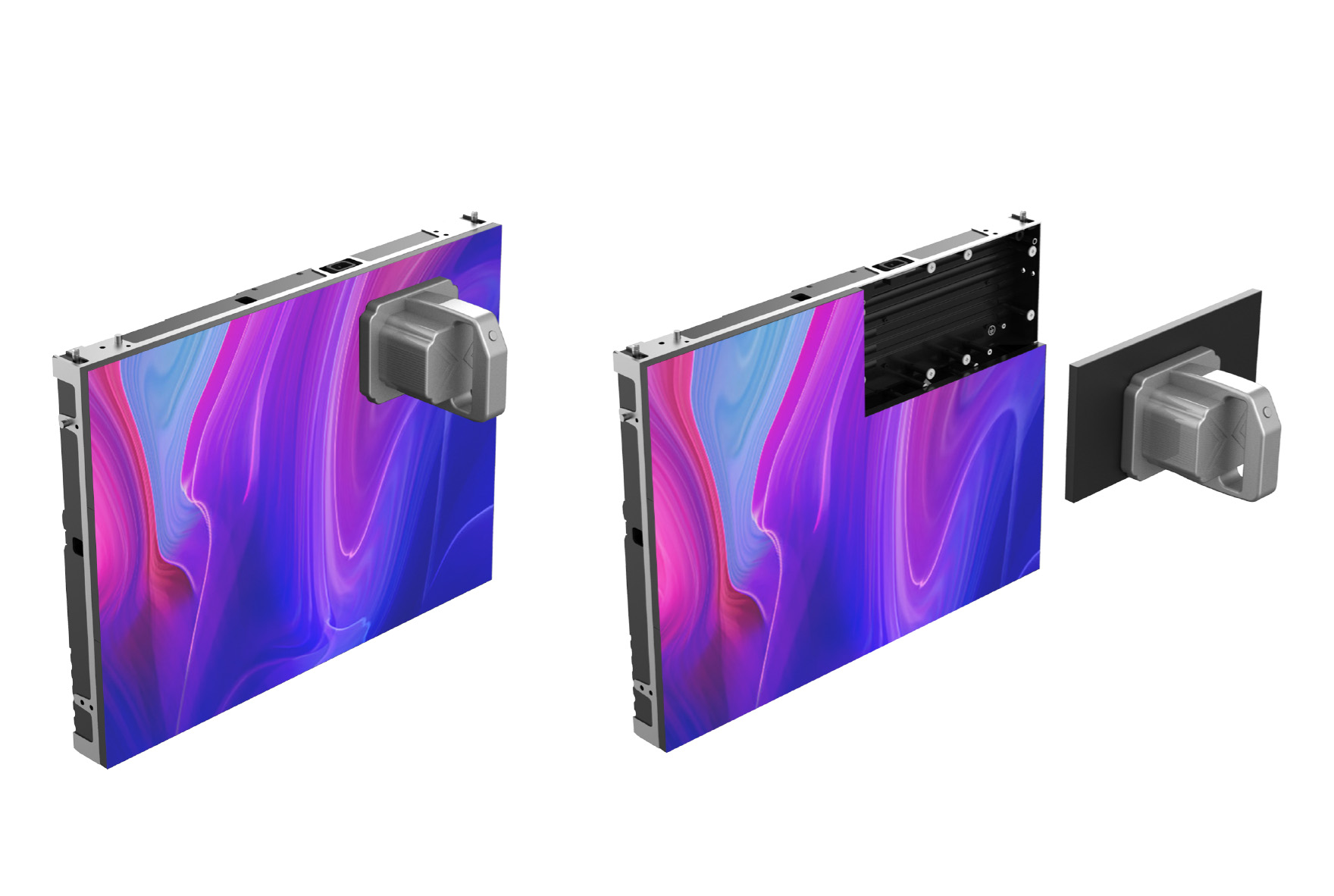

Modules, receiving card & power supply support full front maintenance for higher spatial utilization.

user-friendly maintenance of led display
digital sign board with compact outlook
Advanced Technologies, Higher Stability

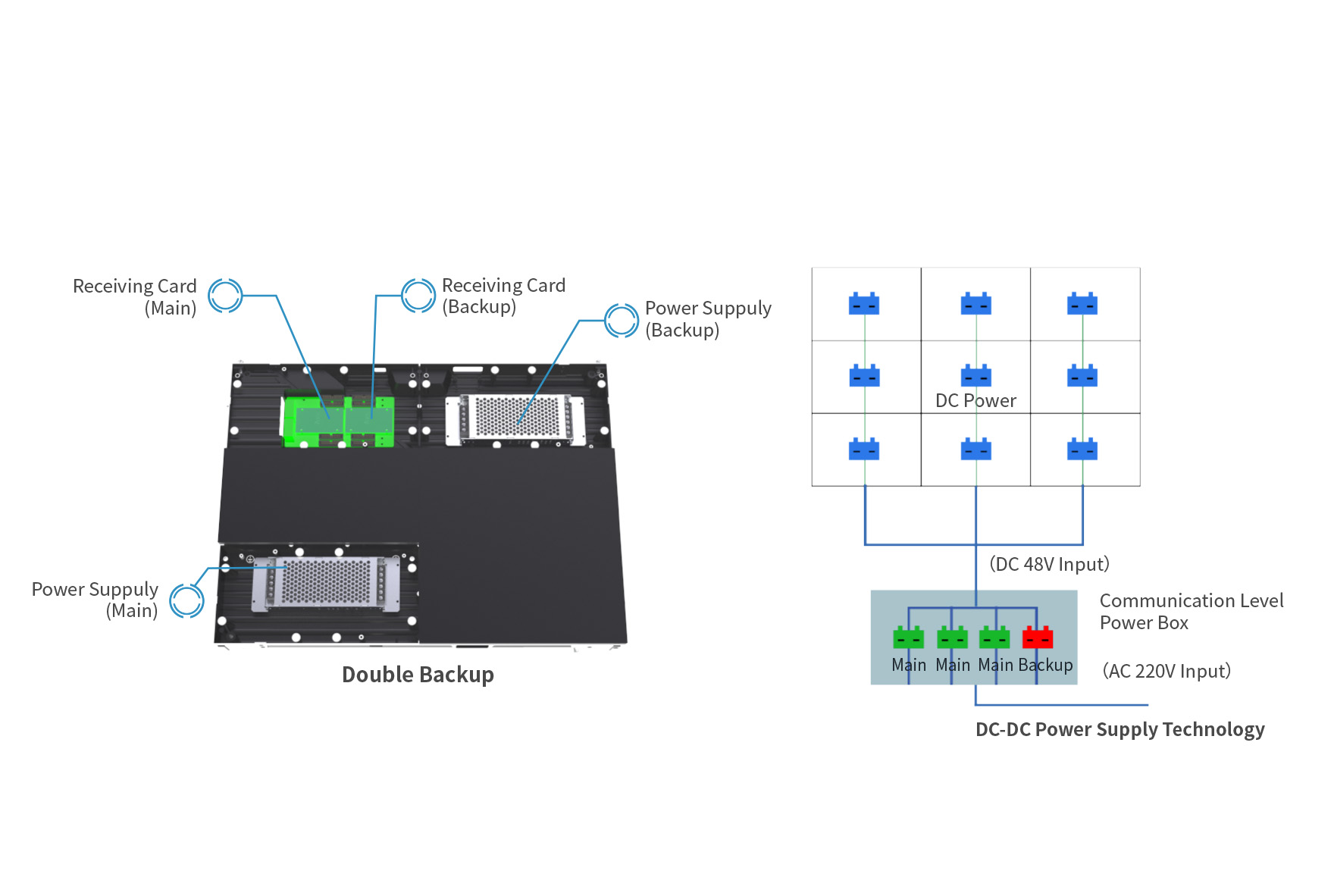

Backups of power supply and receiving card are optional to stabilize long-time transmission; Support DC-DC power supply technology to smoothen operation with high reliability and lower power consumption.

All-Around Protection

One-piece die-cast aluminum cabinet with fully enclosed back shell brings IP60 high protection; Optional nano-coating craftsmanship grants extra shield against moisture, static, dust, etc. to prevent blind lamps and LED "caterpillars".


Parameter
Model VMQ1.2 VMQ1.5 VMQ1.8 VMQ2.0 VMQ2.5
Pixel Pitch(mm) 1.2 1.5 1.8 2.0 2.5
Panel Size W*H(mm) 640*480
Panel Resolution(Pixel) 512*384 416*312 344*258 320*240 256*192
Panel Type and Material Die-casting Aluminum
Panel Weight(Kg/pcs) 7.5
Brightness(nits) 600 600 500 600 500
Serviceability Front
* Please kindly note that product specifications may vary according to different configurations. All rights reserved.
