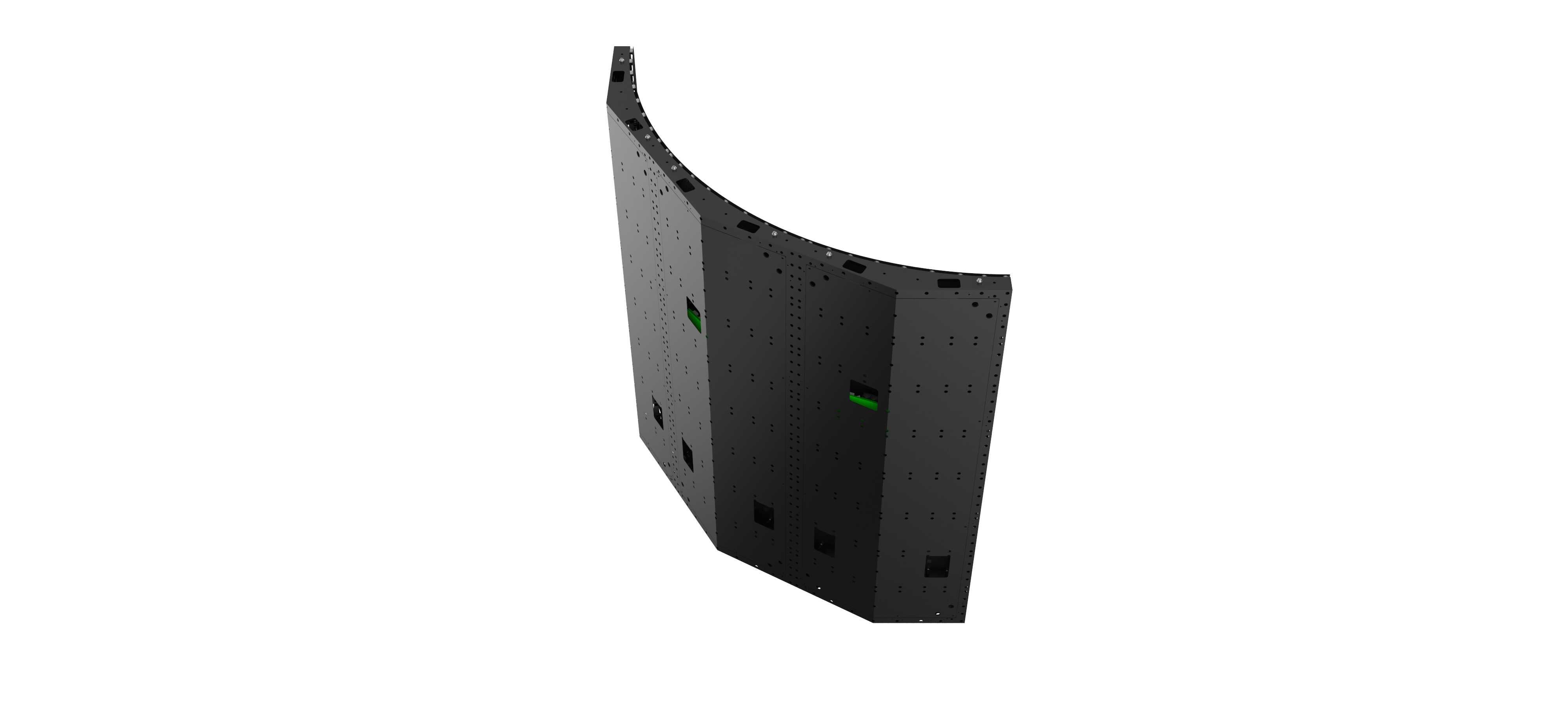

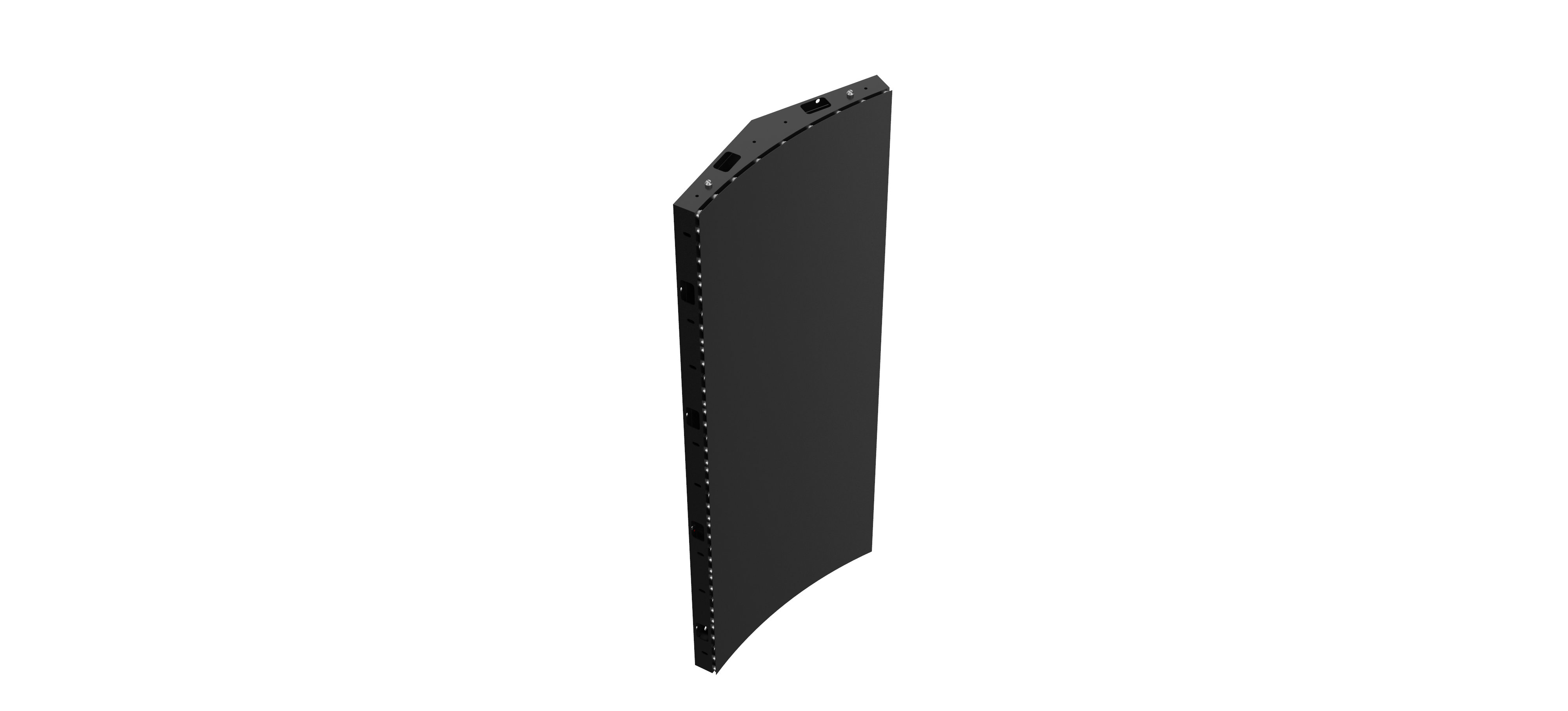

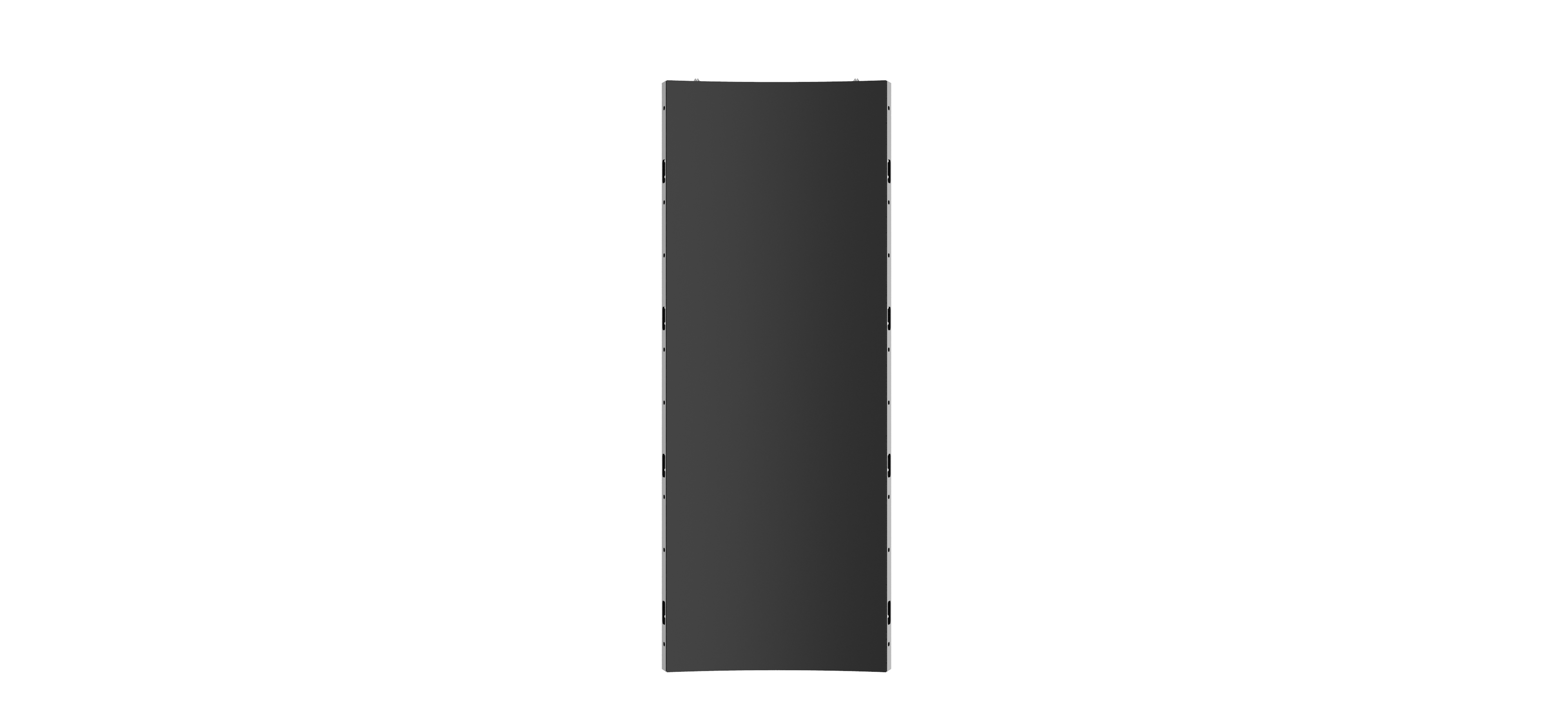

BIM MIN Series
Indoor Curved Commercial LED Display
Superb Viewing Angle | Curved Shape | High Contrast Ratio | Fast Installation | Ultra Slim&Light | Front Maintenance

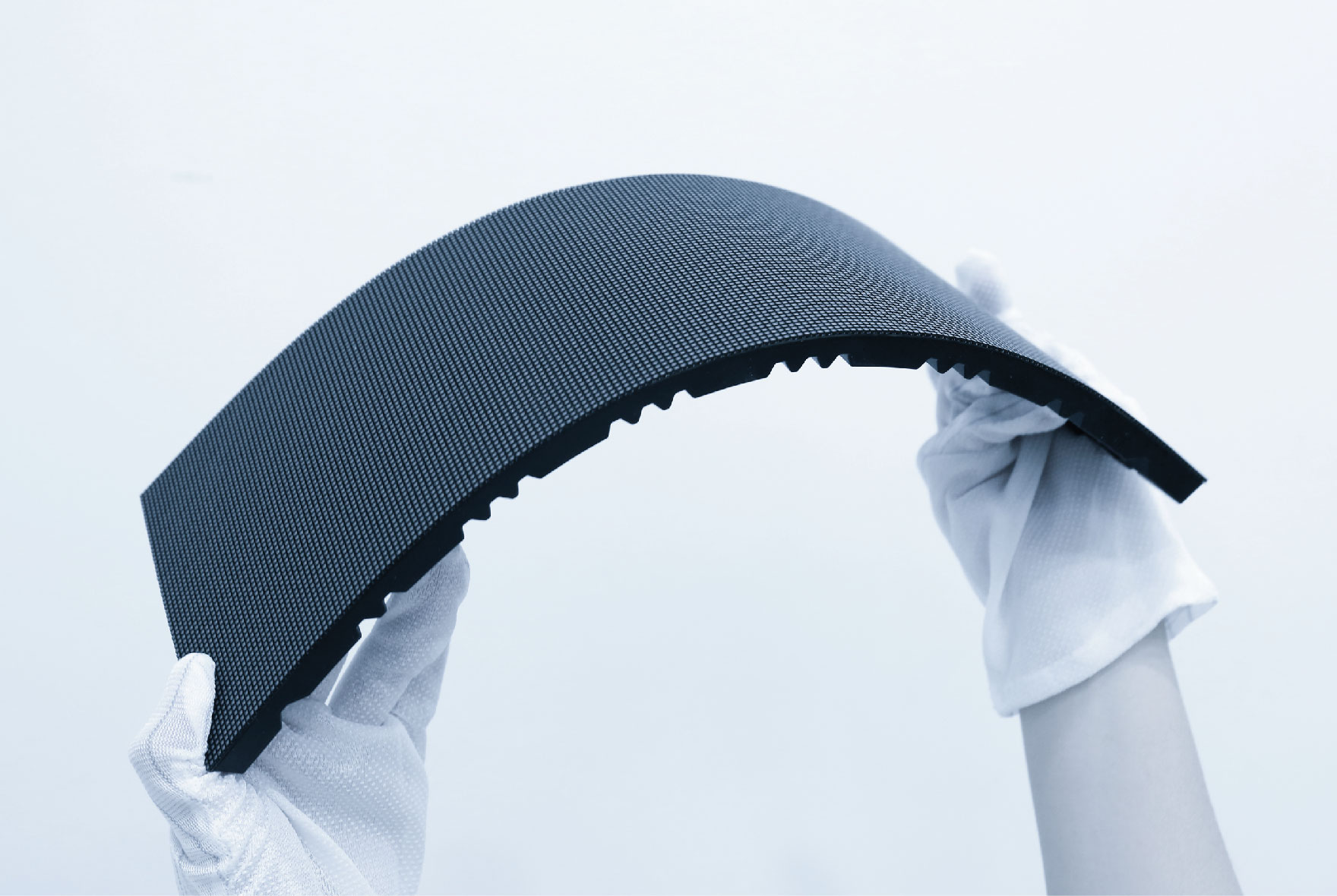

Flexible Modules, Smooth Splicing
Designed with flexible modules, the BIM MIN Series (curved cabinet) achieves more smooth splicing to perfectly adapt to you space
Visual Feast for Audience
Featured 3000 nits high brightness and 8000:1 high contrast raio, it creates engaging content with rich details and high color accuracy in any indoor ambient lighting

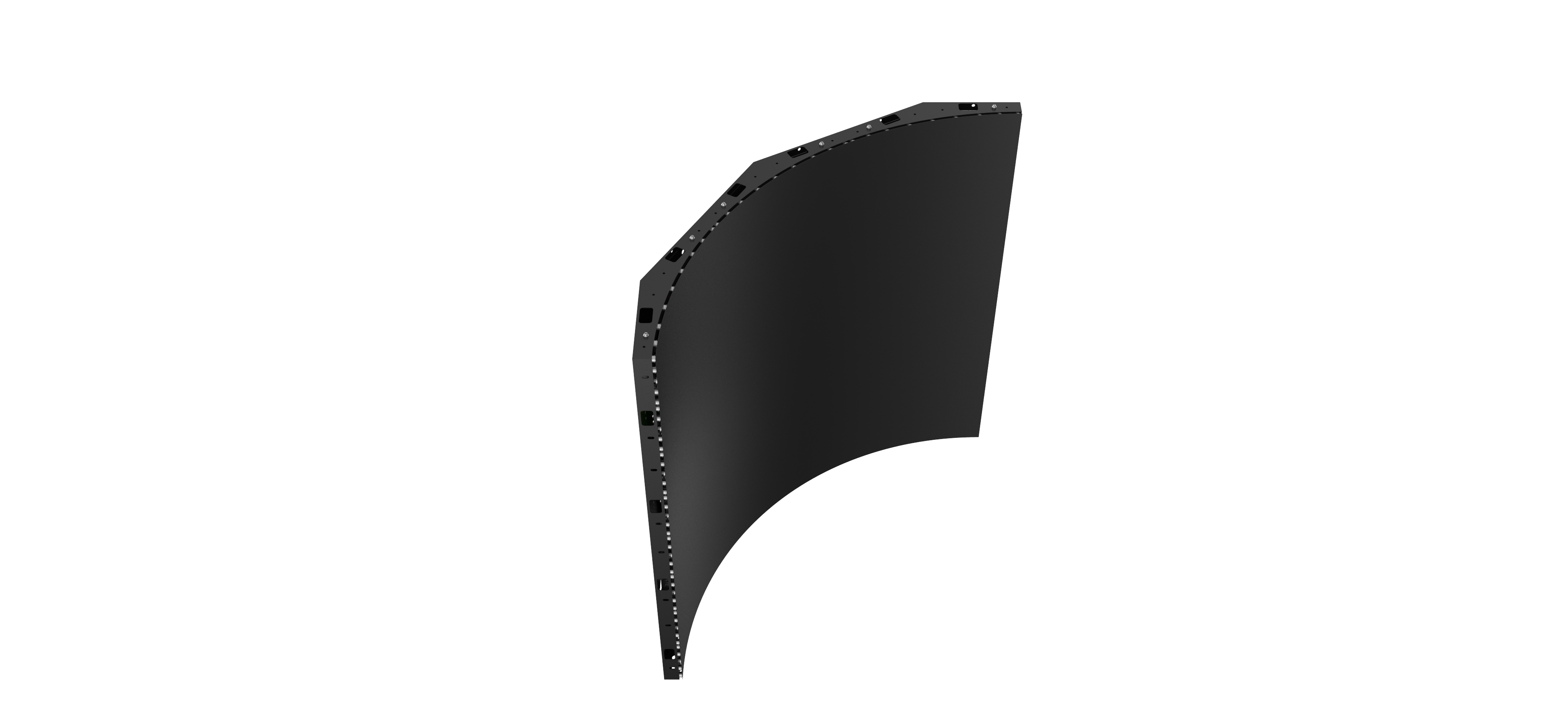

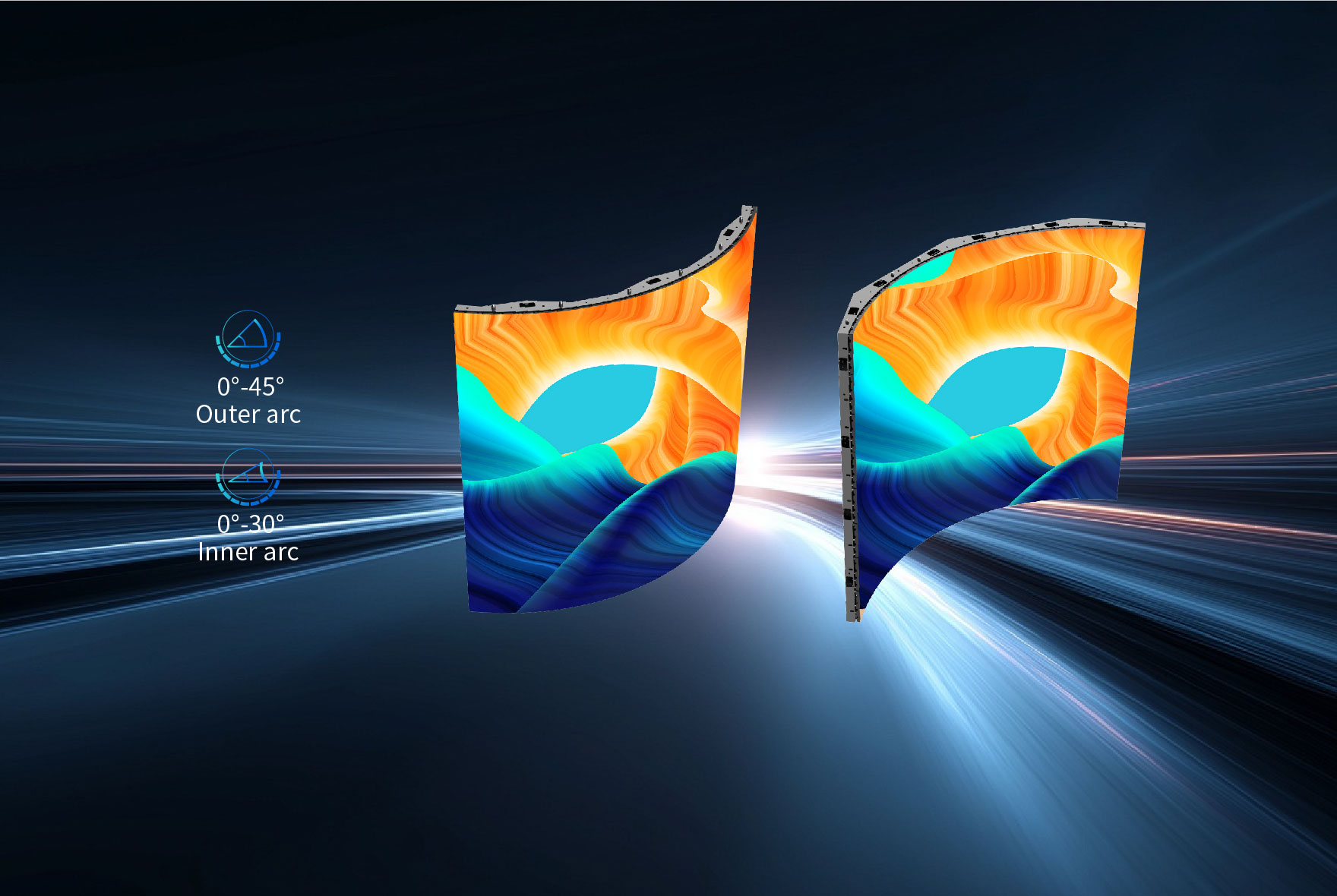

Curve to Impress
To provide more possibilities, single BIM MIN Series panel is specially curved into 30° concave or 45° convex shapes
Ultra-slim & Lightweight
Ultra-thin and light cabinet is cost-saving and custom-fit for your space

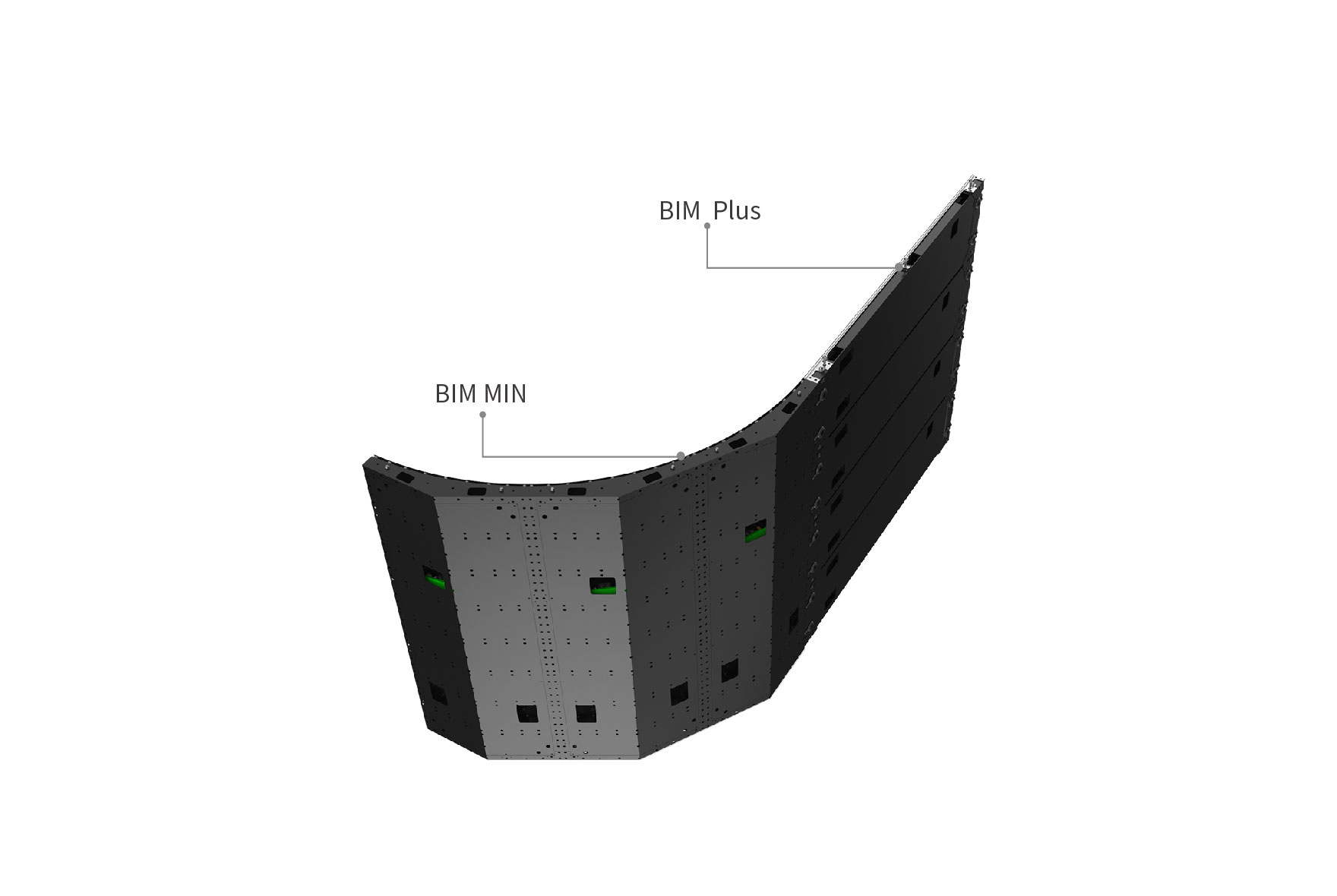

Mixed Splicing for Unlimited Creative Splicing
The upgraded BIM MIN Series supports seamlessly splicing with BIM Plus Series, which helps achieve various shapes such as indoor glasses-free 3D creativity and improve the installation efficiency than LED walls that are assembled all by flexible modules.

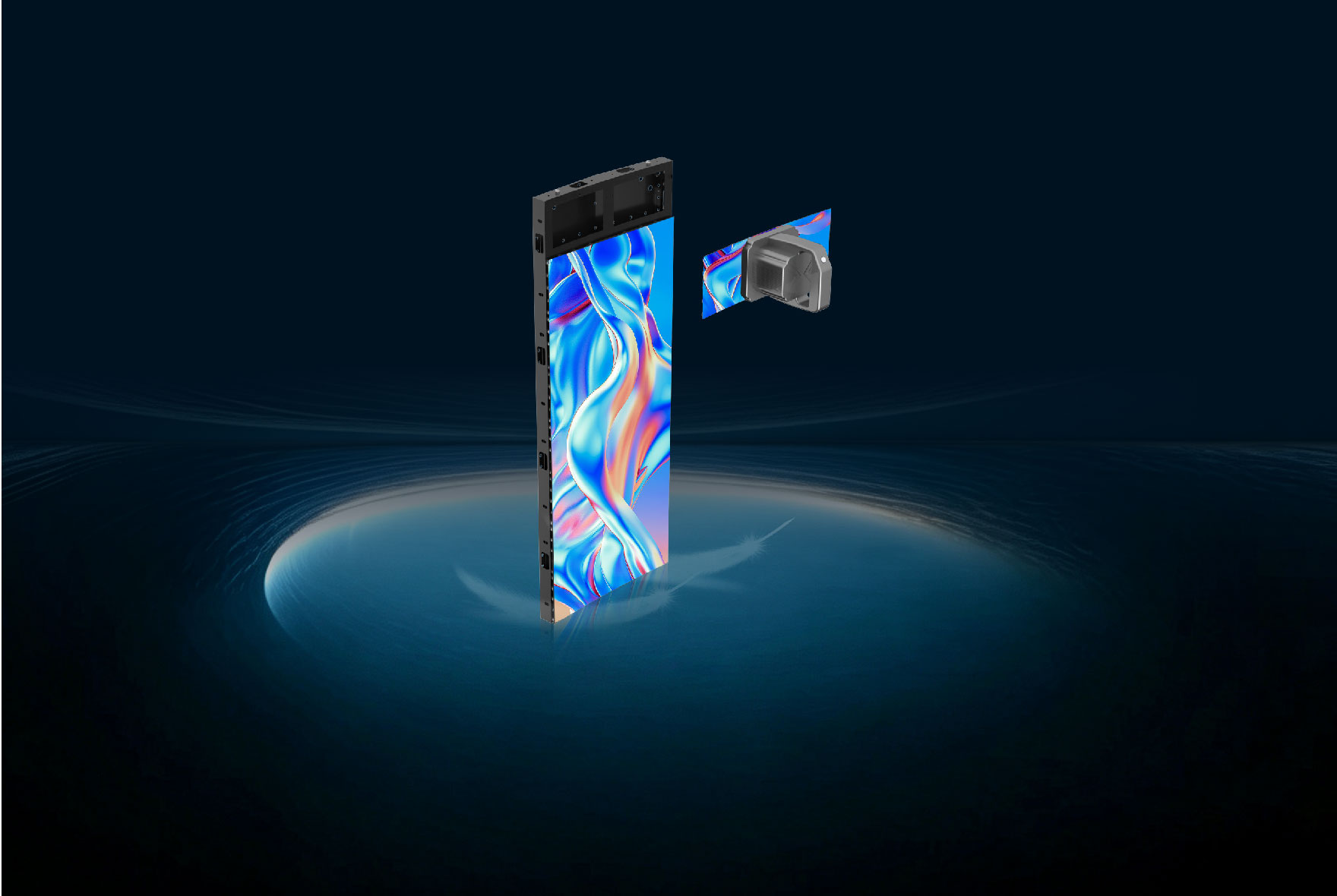

Total Front Maintenance
Receiving card, power supply, and modules can all be maintained from the front
Product Specifications
*Swipe right to see all
| Model | BIM MIN1.5 | BIM MIN1.9 | BIM MIN2.6 | BIM MIN3.9 |
| Pixel Pitch (mm) | 1.5 | 1.9 | 2.6 | 3.9 |
| Panel Size (mm) | Regular: 375*1000*39/375*750*39/375*625*39 Can be customized according to project requested size | |||
| Panel Resolution | 240*640 / 240*480 / 240*400 | 192*512 / 192*384 / 192*320 | 144*384 / 144*288 / 144*240 | 96*256 / 96*192 / 96*160 |
| Weight (Kg/pc) | 11.5 / 9 / 7.5 | |||
| Brightness (nits) | 600 | 900 | 900/3000 | 900/3000 |
| Panel Material | Steel | |||
| Serviceability | Front | |||
