Handy& Easy Installation Ever
Shape Your LED Wall As You Want
Mixed Splicing for More Possibilities

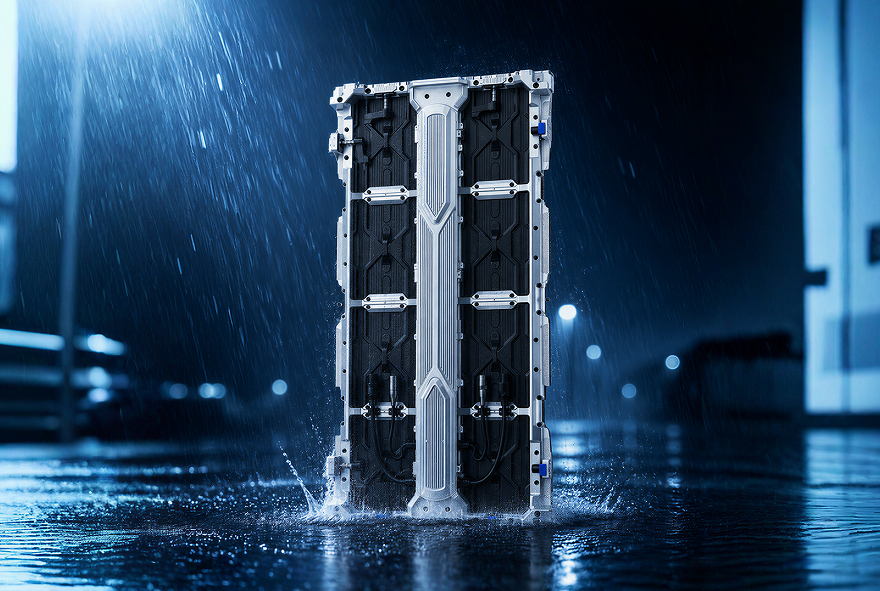

Ultra-High Protection
Elaborate Module Design
Double Backup, Higher Integrated Stability
Excellent Display Performance for xR Application
Considerate product detail design enables speedy one-handed operation
Integrated central box allows one press for fast replacement
Modules support both front and rear maintenance

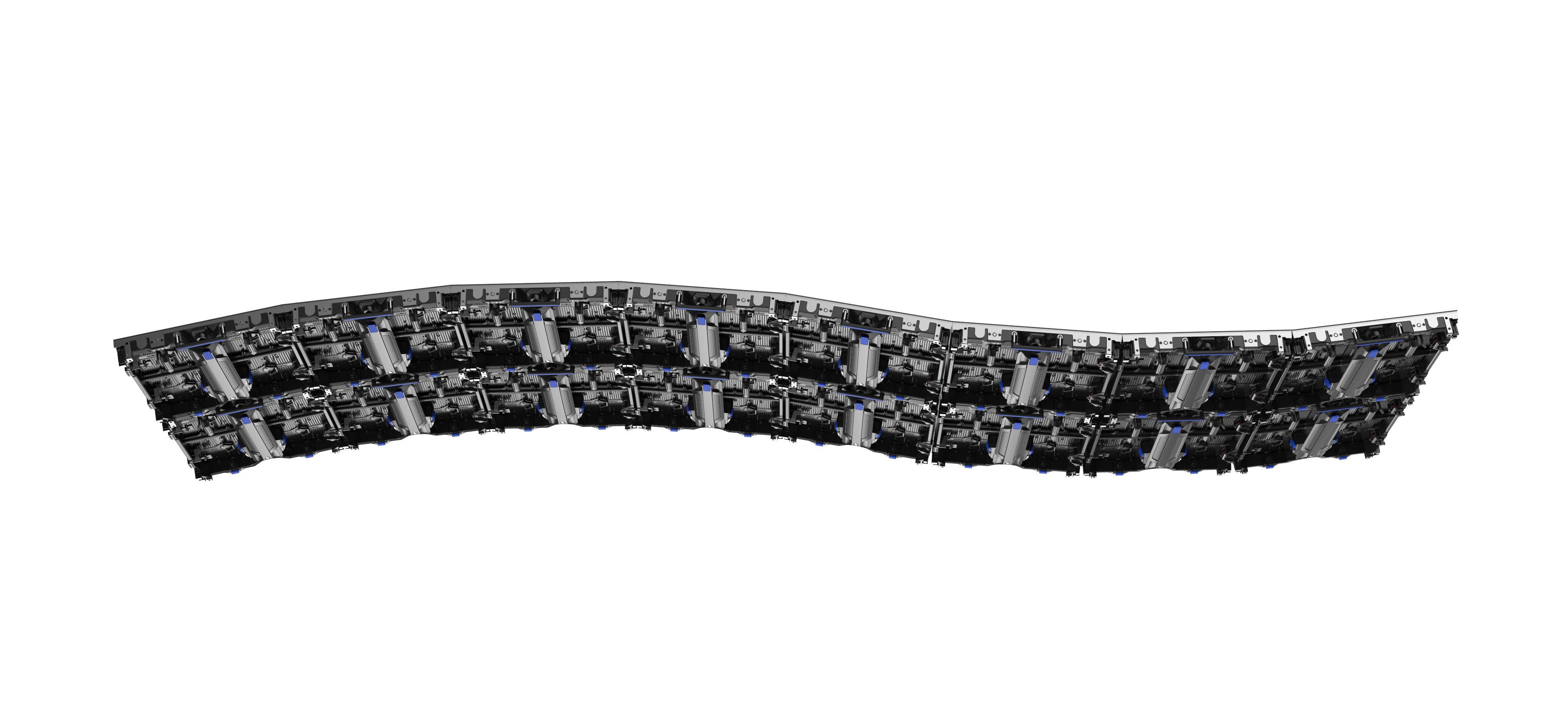

Pilot Pro adopts universal hanging bars and stacking bars. Moreover, Pilot Pro also enables curved, staggered and 90° splicing for more creative shapes.
Support mixed splicing with E-Swan and E-Corner to create more incredible stage magics.
Pilot Pro feature smart corner protectors and can stand on the ground at an angle to avoid pixel damages
Adopting extra gluing around the modules improves anti-collision capacity
Optional RobustFix / HOB / Mini LED technologies offers extra anti-collision protection
Universal modules can be magnetic or screw fixed for higher flexibility. What’s more, modules are designed with to-be-mained markers and distributed with cooling vents to dissipate heat efficiently.
Dual signal interfaces prevent poor transmission due to signal interruption. Modules and hub board are connected with integrated gold finger connector for higher stability.
Pilot Pro is optional with higher refresh rate, higher frame rate & higher grayscale to deliver exceptional visuals for application in virtual production, xR and film studios.
Model | Pilot Pro1.5 (XR) | Pilot Pro1.9 (XR) | Pilot Pro2.6 | Pilot Pro2.9 | Pilot Pro3.9 |
Pixel Pitch (mm) | 1.5 | 1.9 | 2.6 | 2.9 | 3.9 |
Panel Size W*H*D (mm) | 500*500*72.5 | ||||
Panel Resolution (Pixel) | 320*320 | 256*256 | 192*192 | 168*168 | 128*128 |
Panel Material | Die-casting Aluminum | ||||
Panel Weight (Kg/pc) | 8 | ||||
Brightness (nits) | 1000-1500 | 1000-1500 | 900-1500 | 900-1000 | 900-1000 |
Serviceability | Rear | ||||
