E-Swan Series

Ultimate Flexible Indoor Curved Rental LED Display

E-Swan Series

Ultimate Flexible Indoor Curved Rental LED Display


01

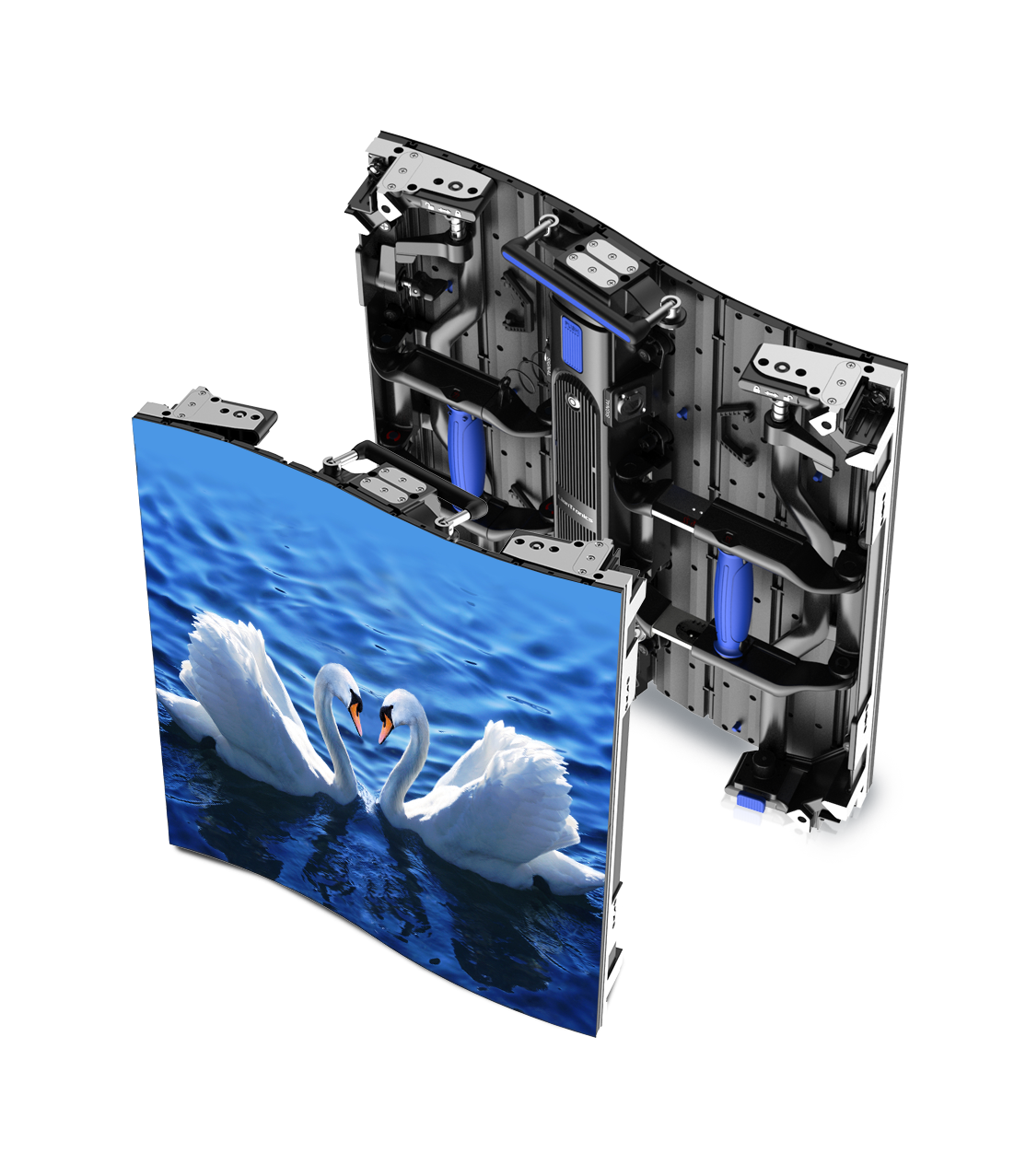

Ultra-slim & Light

E-Swan Series adopts die-casting aluminum panels weighing only 8 kg/pc, and its thickness is 73 mm.


02

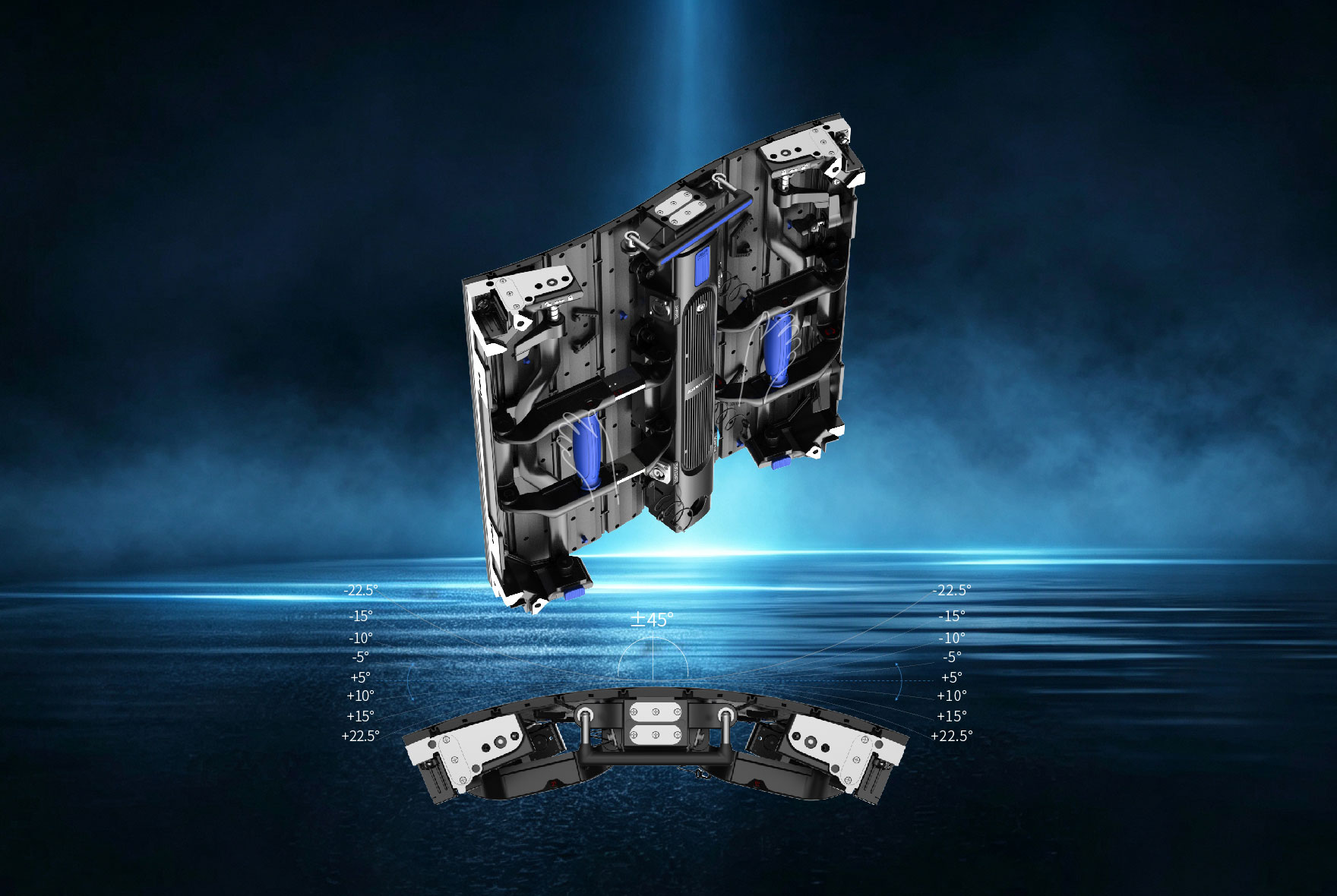

Angle adjustment, Flexible Panels

Press the handle to quickly adjust the angle adjustment for your stages

Single panel has 9 angles of adjustment to choose

Flexible panels allow internal and external arcs of 45°


03

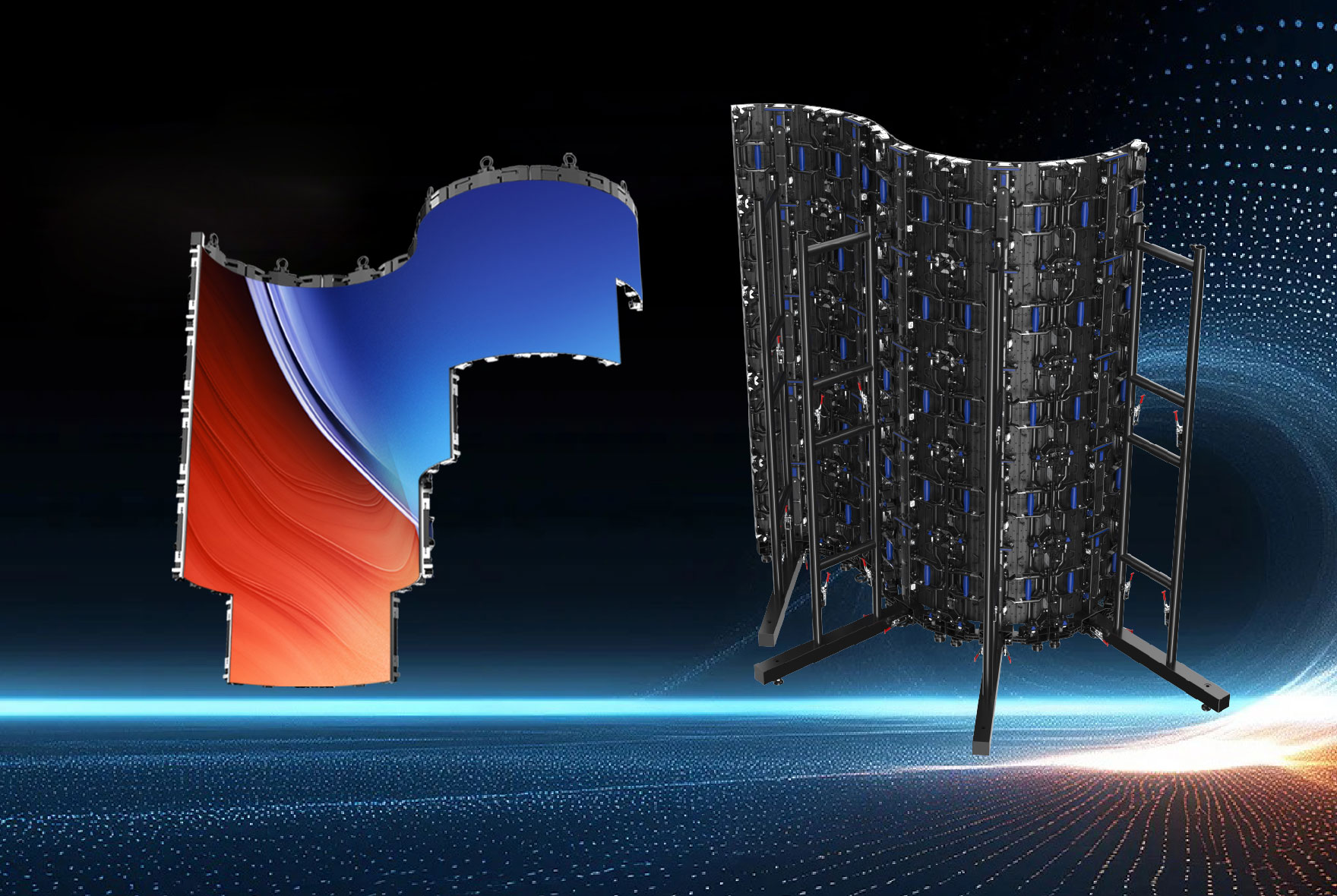

Curved Splicing, Versatile Styles

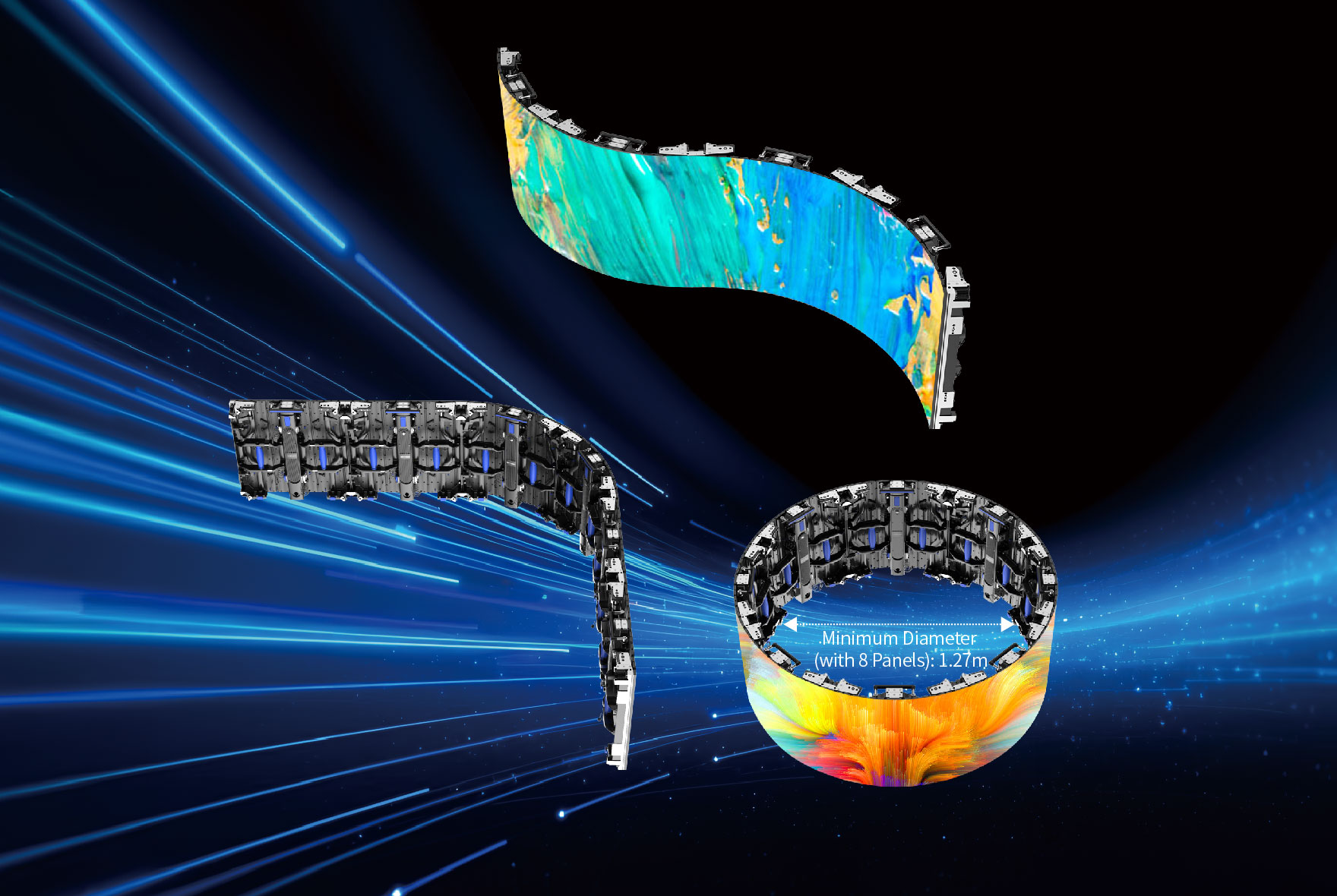

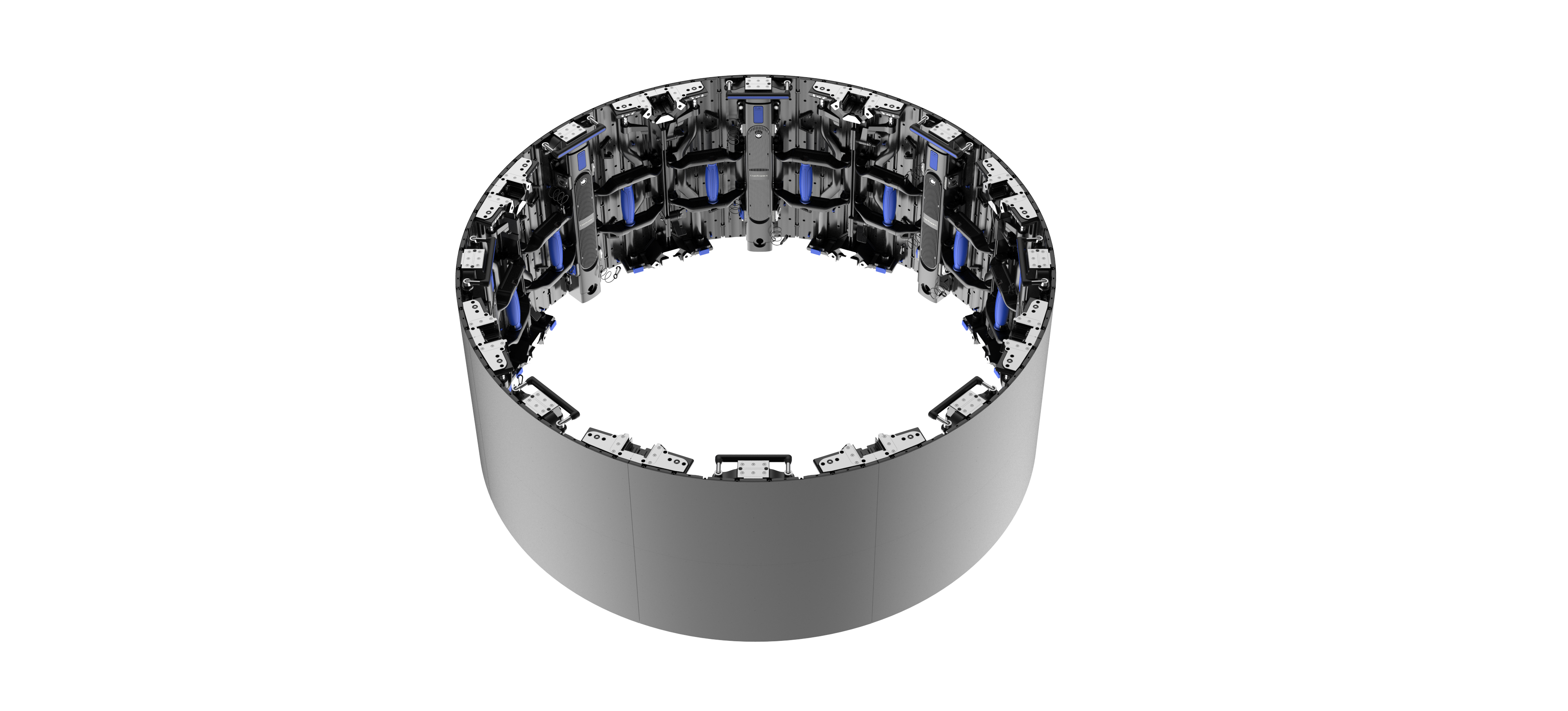

E-Swan Series supports numerous creative shapes such as waves, arcs, and flat screens. Arcs need only 8 panels with a minimum diameter of 1.2 m.


04
Quick Installation, Easy Maintenance

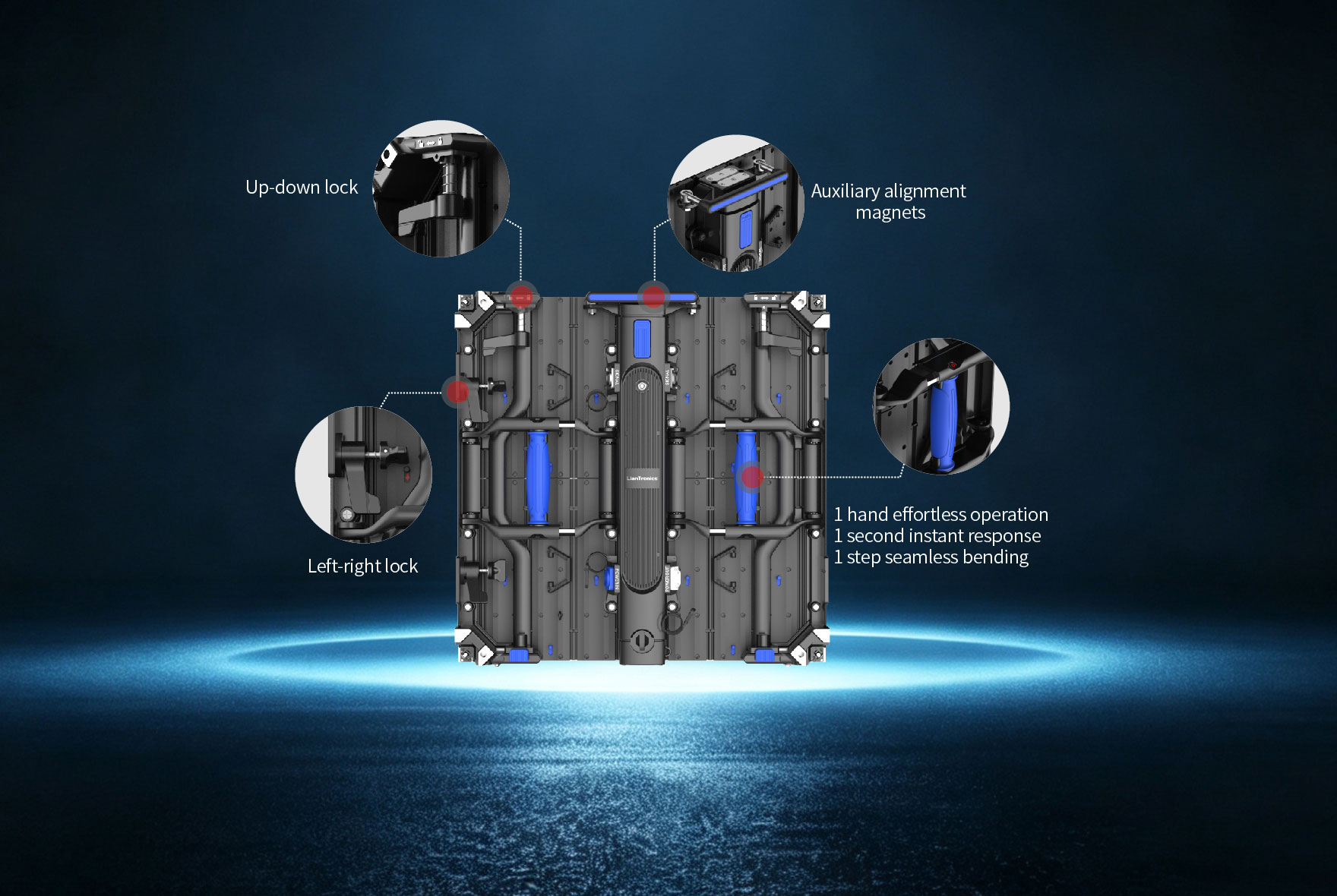

Left-right locks, handles, up-down locks, and corner protectors for simple and quick installation
Modules and power boxes support full rear maintenance


05
Exceptional visual effects

E-Swan series is designed with the small pixel pitch P1.9 & P2.6, which is the ideal solution for various application and creating unlimited possibilities for your stage.


06

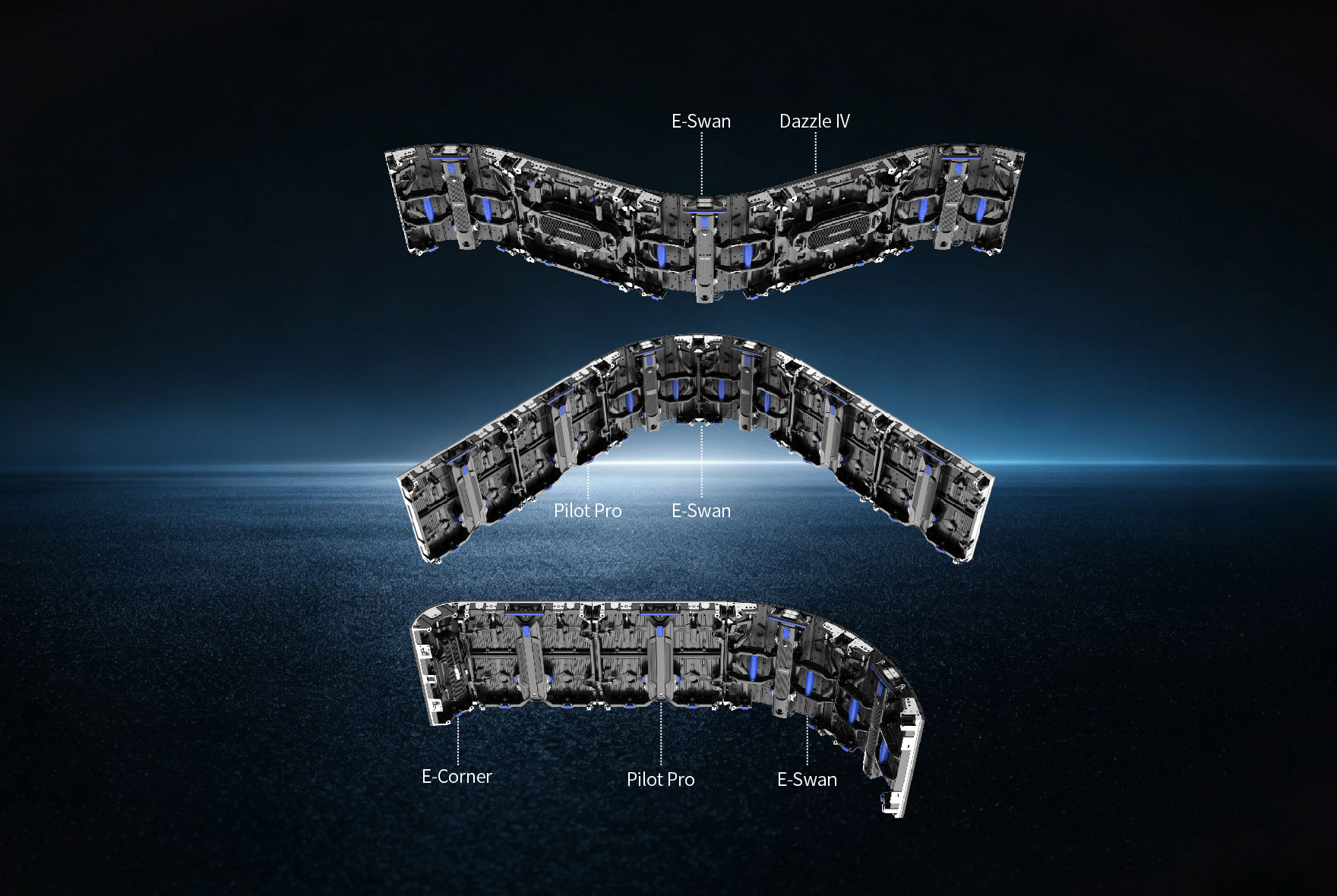

Mixed Splicing, More Possibilities

Mixed splicing with Pilot Pro Series

Mixed splicing with Dazzle Ⅳ Series

Parameter
Model ES1.9 ES2.6 ES3.9
Pixel Pitch (mm) 1.9 2.6 3.9
Panel Size W*H*D (mm) 500*500*73 500*500*73 500*500*73
Panel Resolution W*H 256*256 192*192 128*128
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Weight (Kg/pc) 8 8 8
Brightness (nits) 900-1000 900-1500 900-1200
Serviceability Rear Rear Rear
* Please kindly note that product specifications may vary according to different configurations. All rights reserved.
