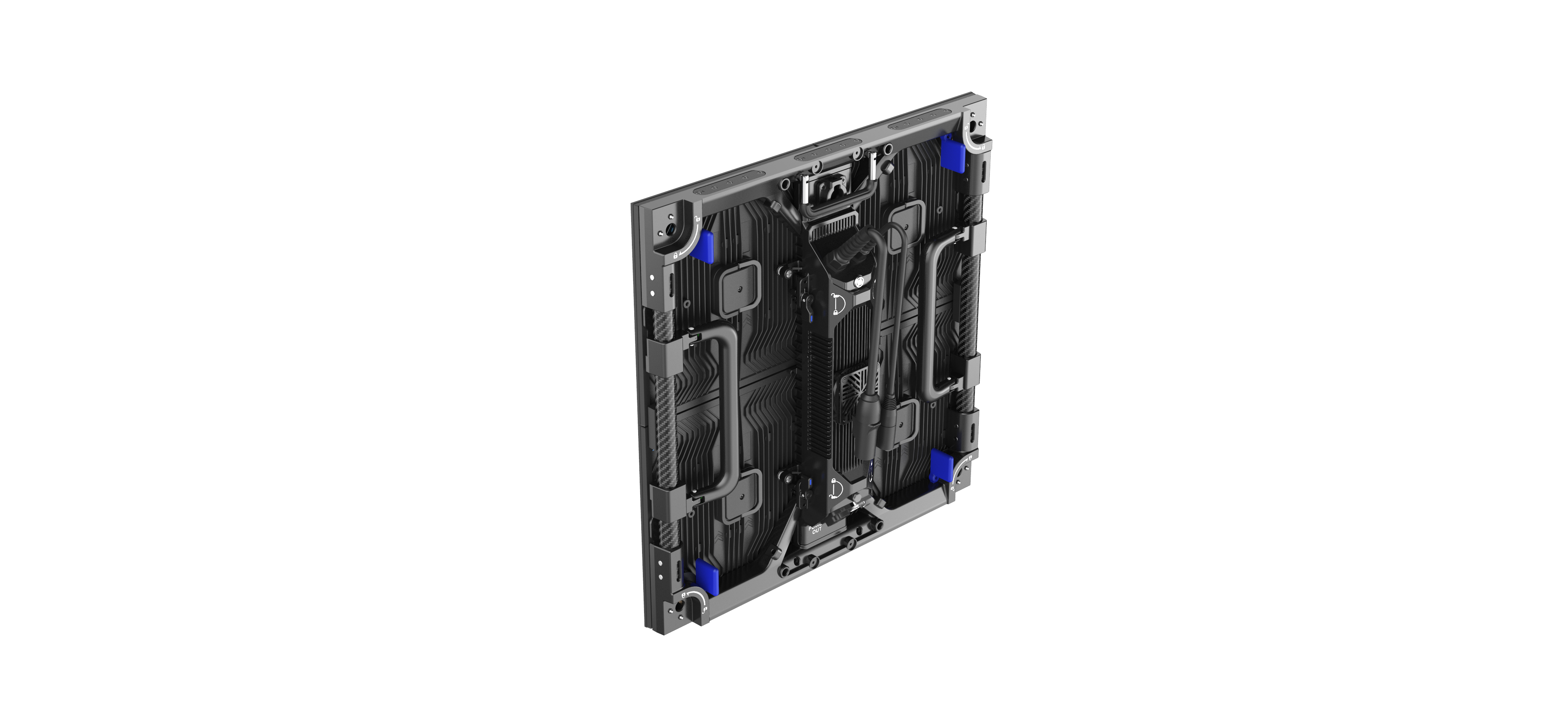

E-Sapphire Series


High-end Rental LED Display
Play Video

E-Sapphire Series


High-end Rental LED Display

01

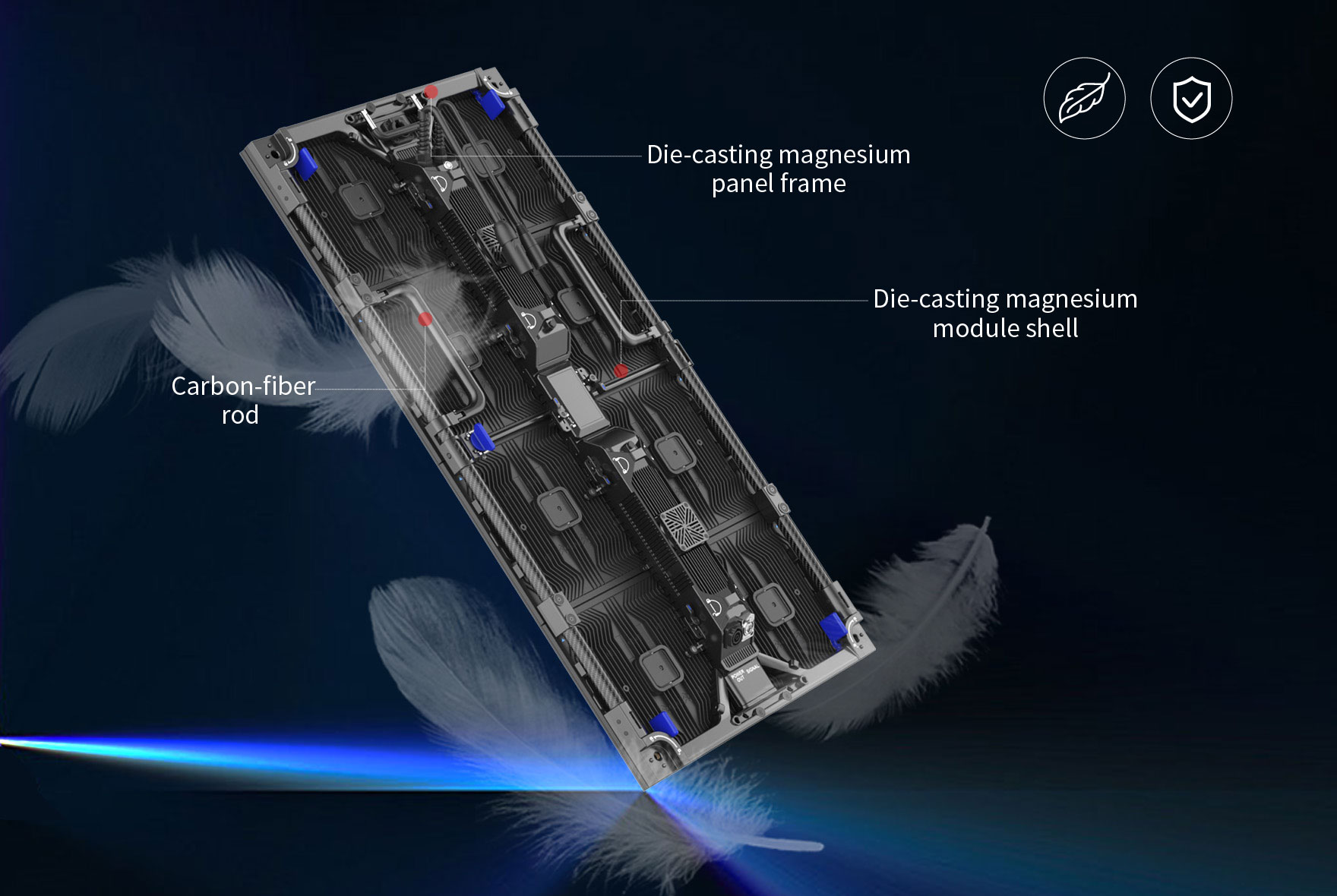

Lightweight & Strong

Panels consist of sturdy die-casting magnesium and light carbon fiber

Back shell: die-casting magnesium; power box: die-casting magnesium

500*1000 panels only weigh 10kg, which effectively improves setup efficiency and saves more transportation costs


02

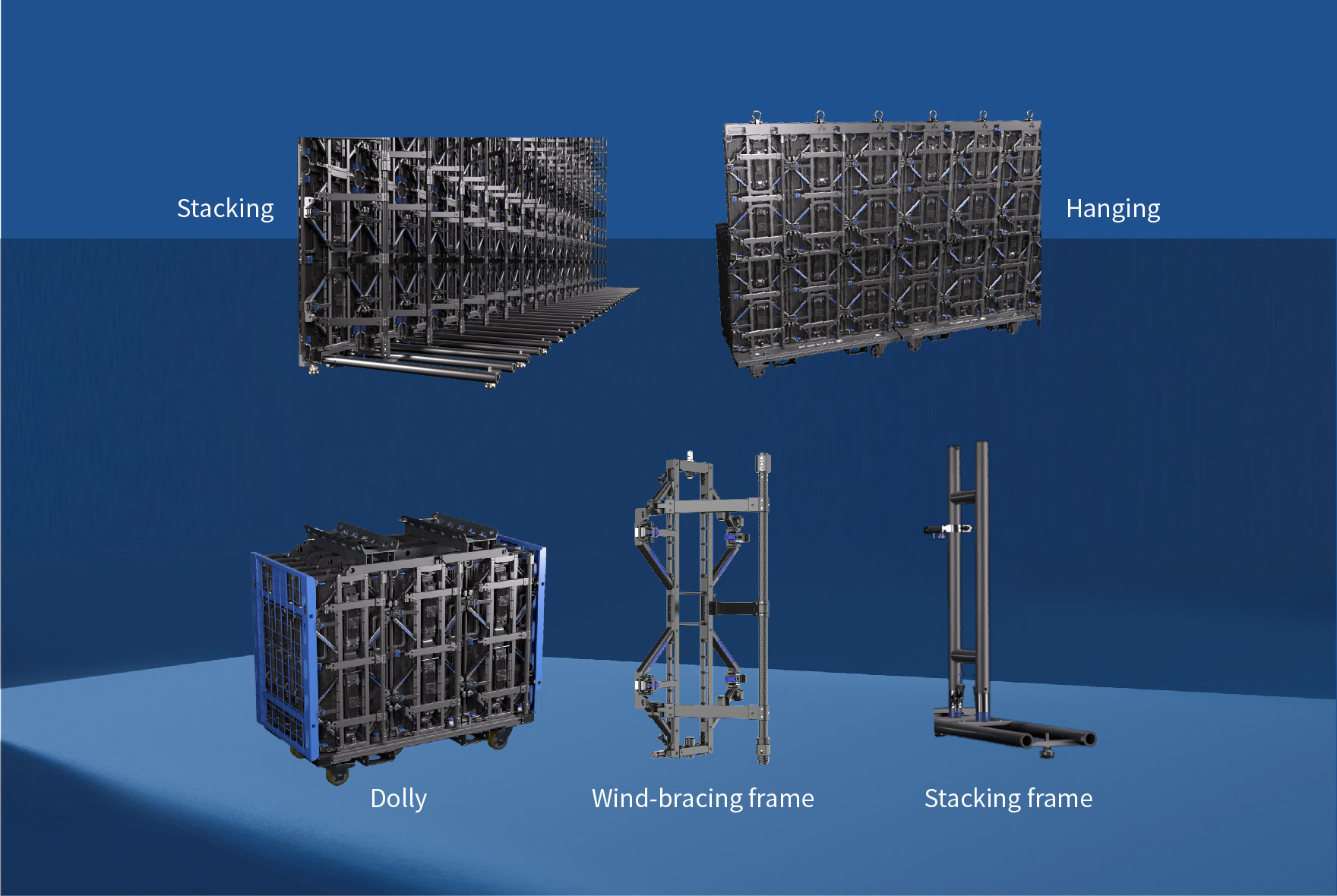

All-inclusive Solution

E-Sapphire series provides an all-inclusive solution for all-in-one integration, including hanging, stacking, dollies, and air frames.


03

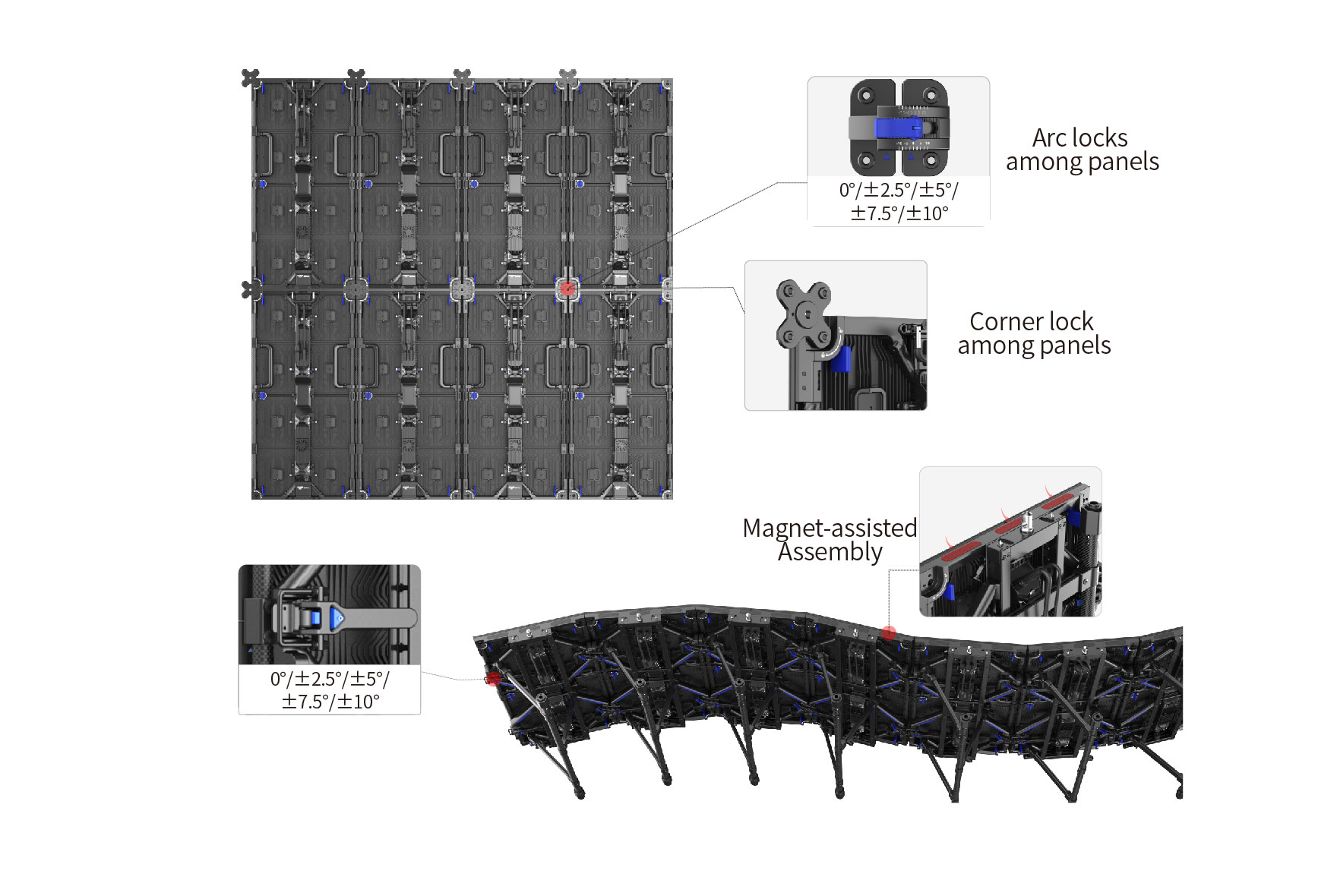

Fast Installation with Considerate Details

Up-down magnet-assisted assembly for easier handling
Foldable panel handle for convenient use
Connecting locks between panels and up-down locks to speed up installation time
Buffer protects bottom module to avoid lamps falling
Dolly solution: 18 panels capacity for quick hanging


04

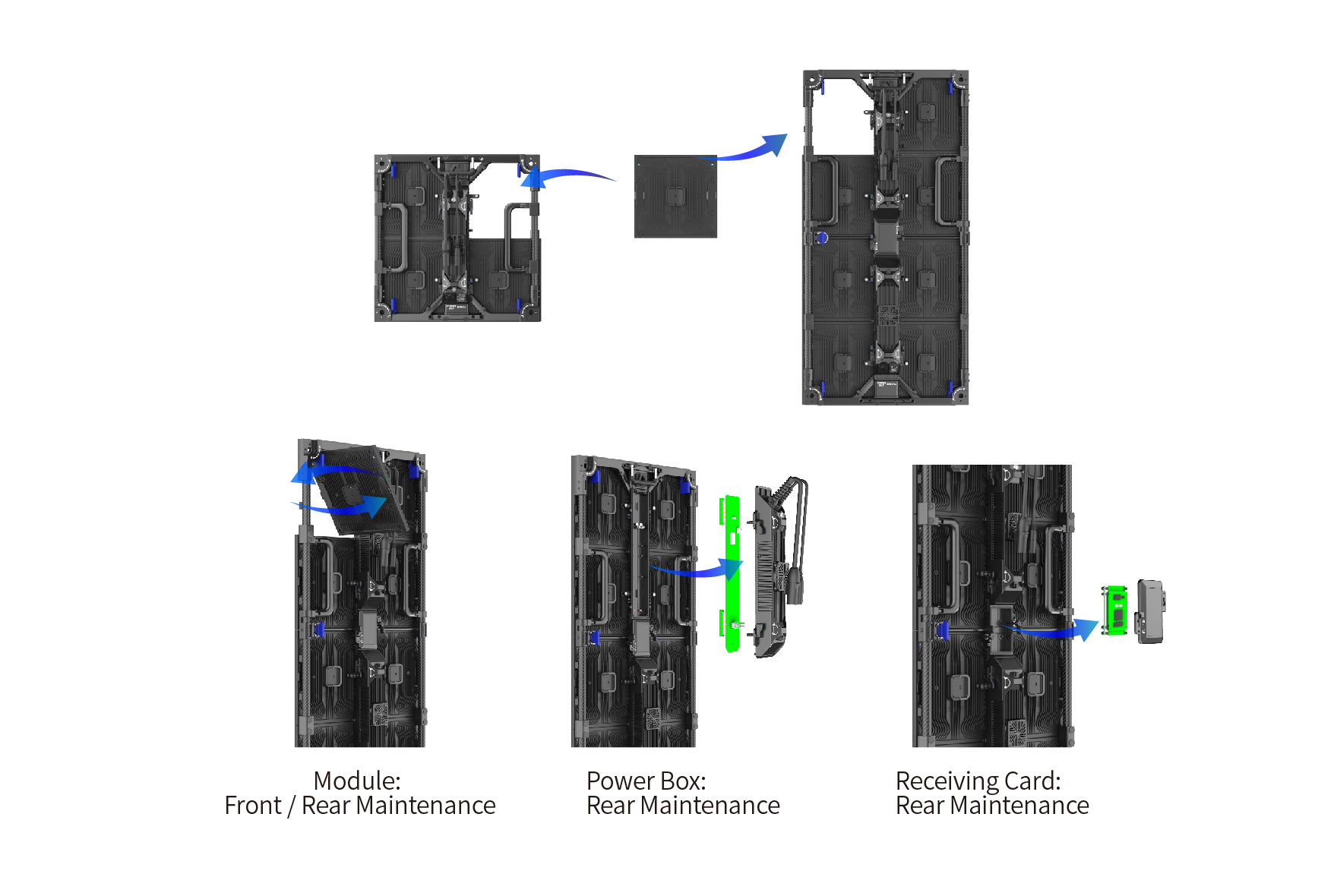

Maintenance with Ease

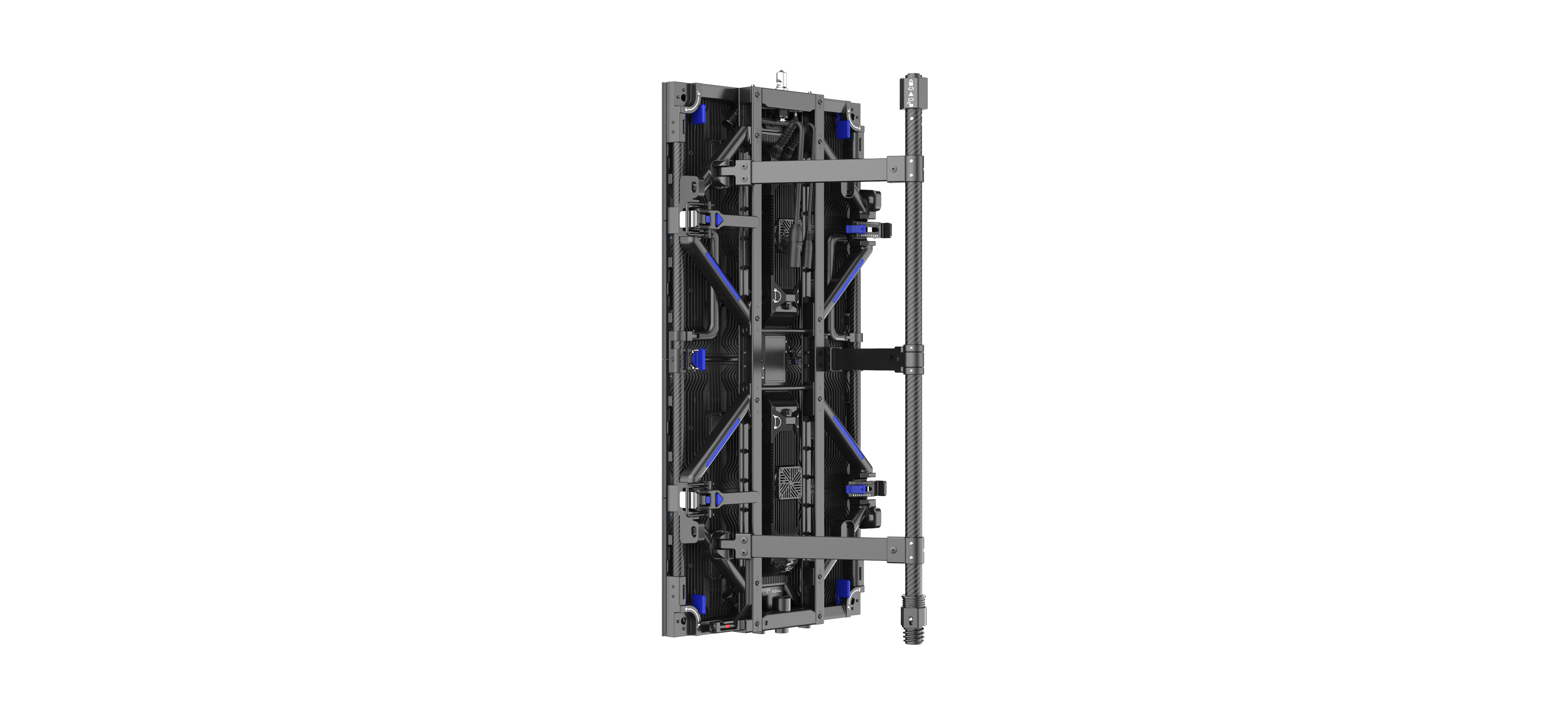

The air frame is detachable to allow panels to be disassembled from the rear
Modules, power supply, and receiving cards support rear maintenance
Modules are universal between 500*500 and 500*1000 panels


05

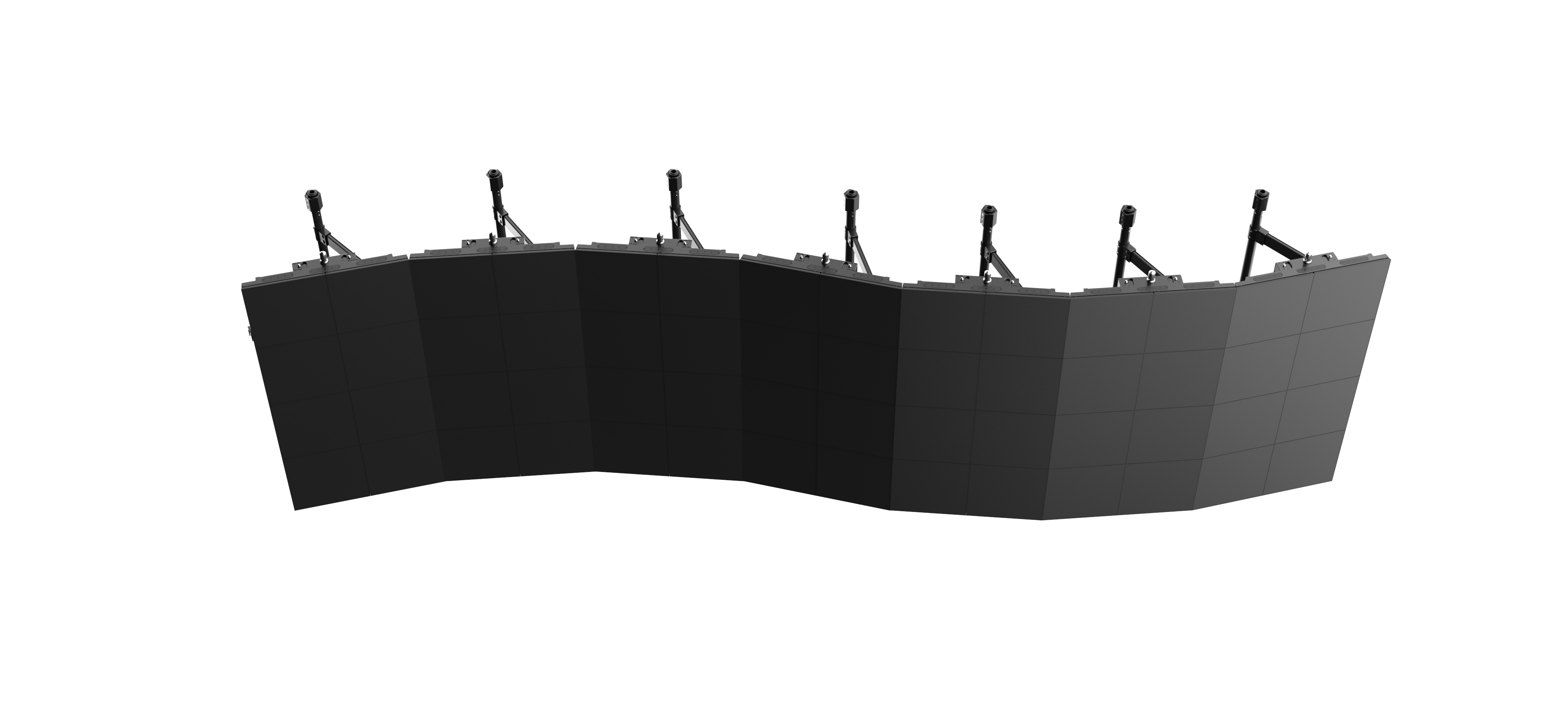

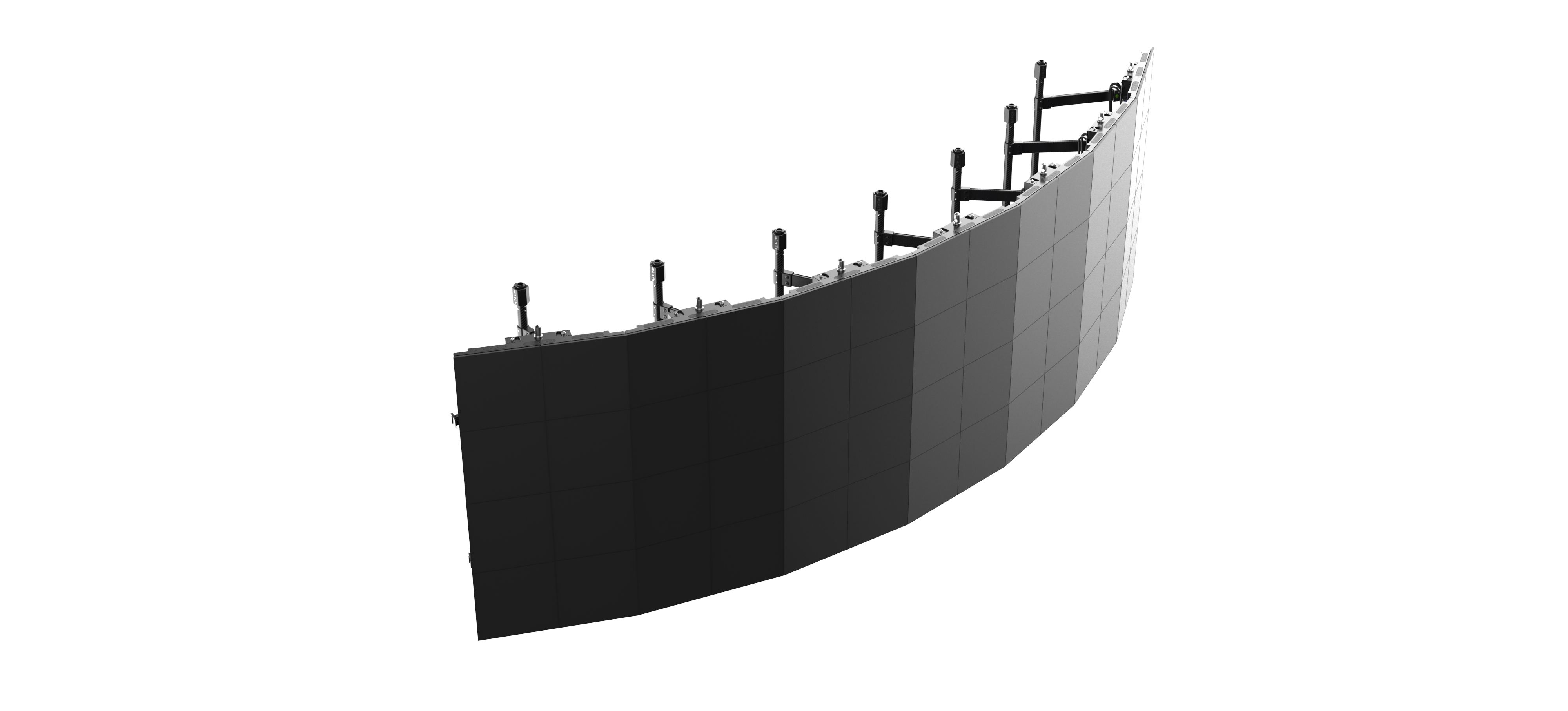

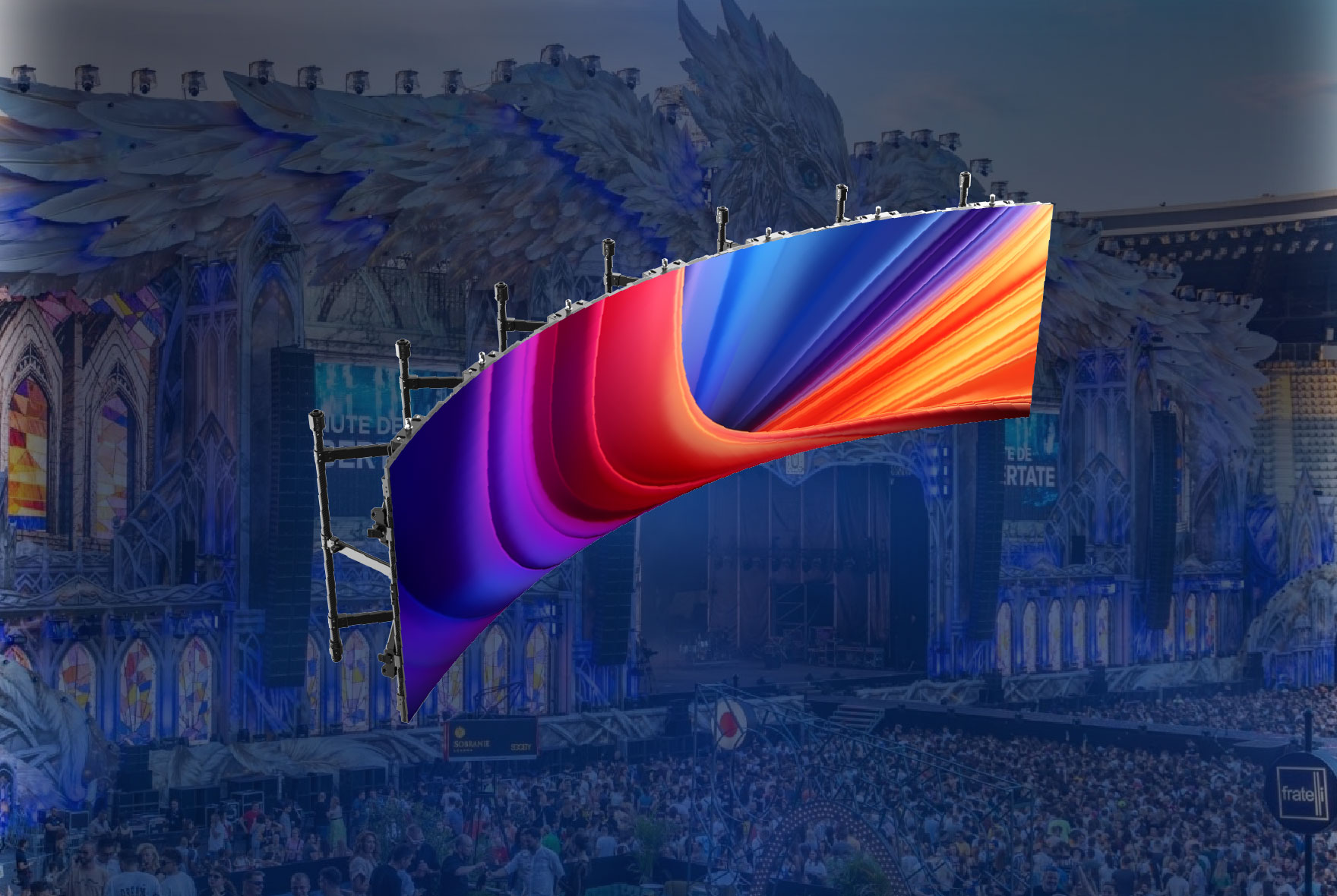

Curved Splicing for Stunning Shapes

Arc locks assembly on the air frame
Multiple different angles to choose: 0°, ±2.5°, ±5°, ±7.5°, ±10°


06

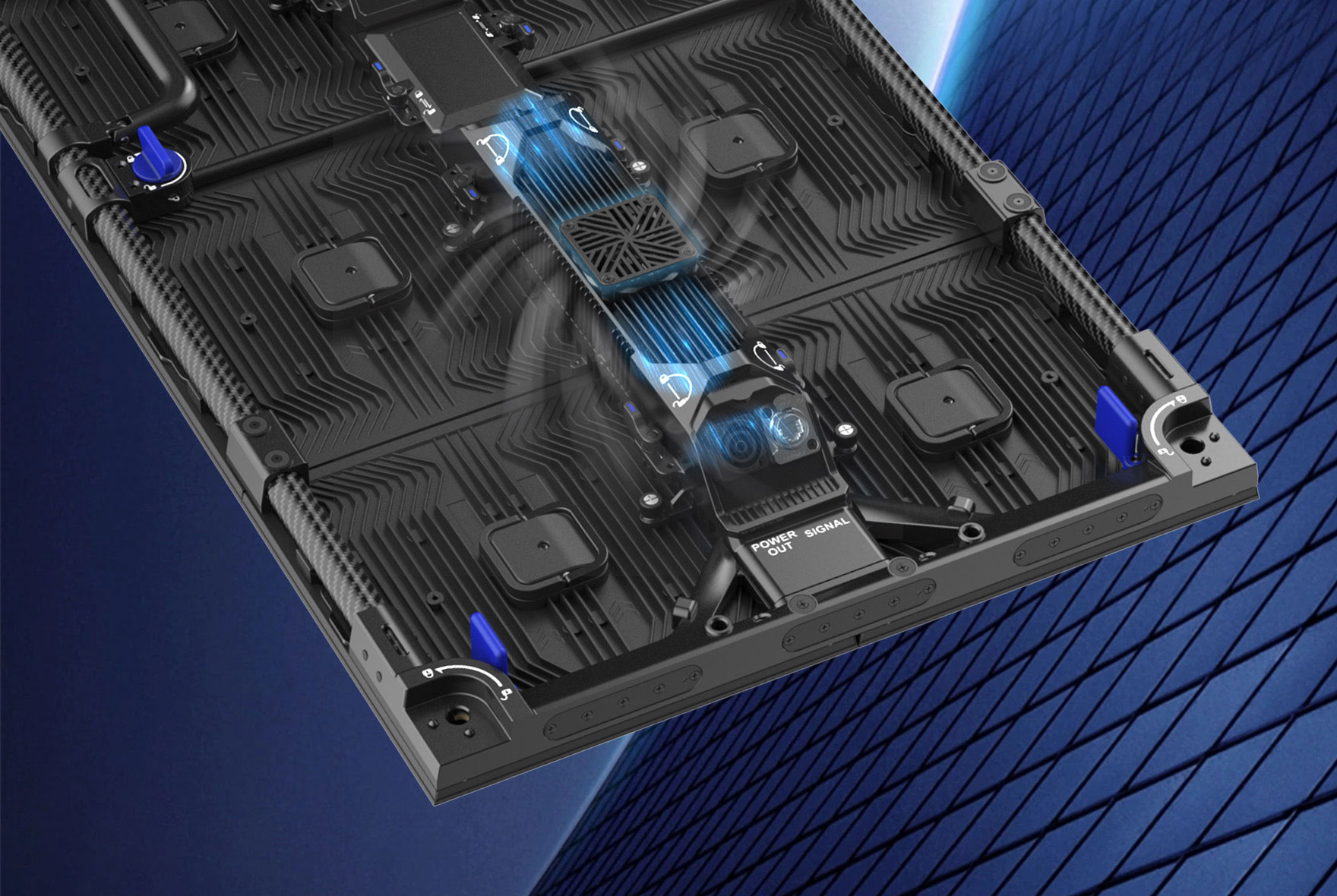

Excellent Heat Dissipation

The back fan will automatically turn on in a high-temperature environment to speed up heat dissipation. What’s more, power boxes with cooling ribs enlarge the heat dissipation area.

Parameter
Model ESP3.9 ESP5.9
Pixel Pitch (mm) 3.9 5.9
Panel Size W*H*D (mm) 500*500*82/500*1000*82 500*500*82/500*1000*82
Panel Resolution W*H 128*128/128*256 84*84/84*168
Panel Material Carbon Fiber + Magnesium Alloy Carbon Fiber + Magnesium Alloy
Weight (Kg/pc) 6/10kg(single cabinet);15Kg(500*1000 cabinet including air frame) 6/10kg(single cabinet);15Kg(500*1000 cabinet including air frame)
Brightness (nits) 6000/4500(ture black) 6000
Serviceability Rear Rear
* Please kindly note that product specifications may vary according to different configurations. All rights reserved.
