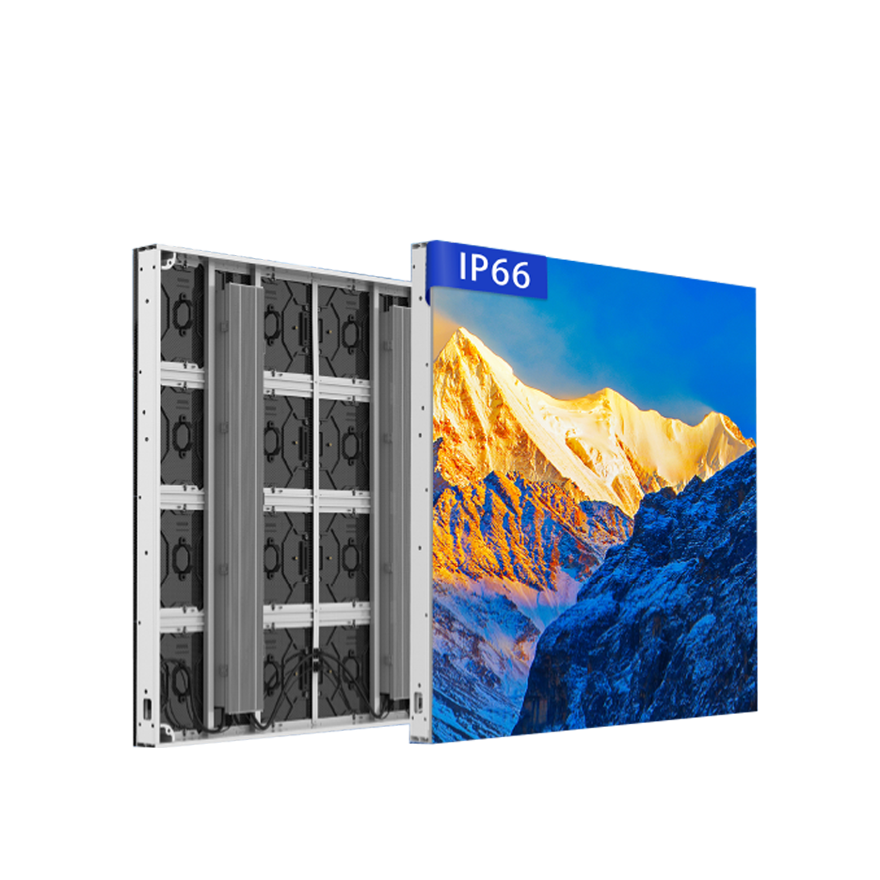

Hercules Series — Common Cathode LED Display
Outdoor LED Digital Billboard
High Energy Efficiency | Unrivaled Brightness | Ultimate Visuals
Waterproof Protection
High Brightness
Refresh Rate
Weight

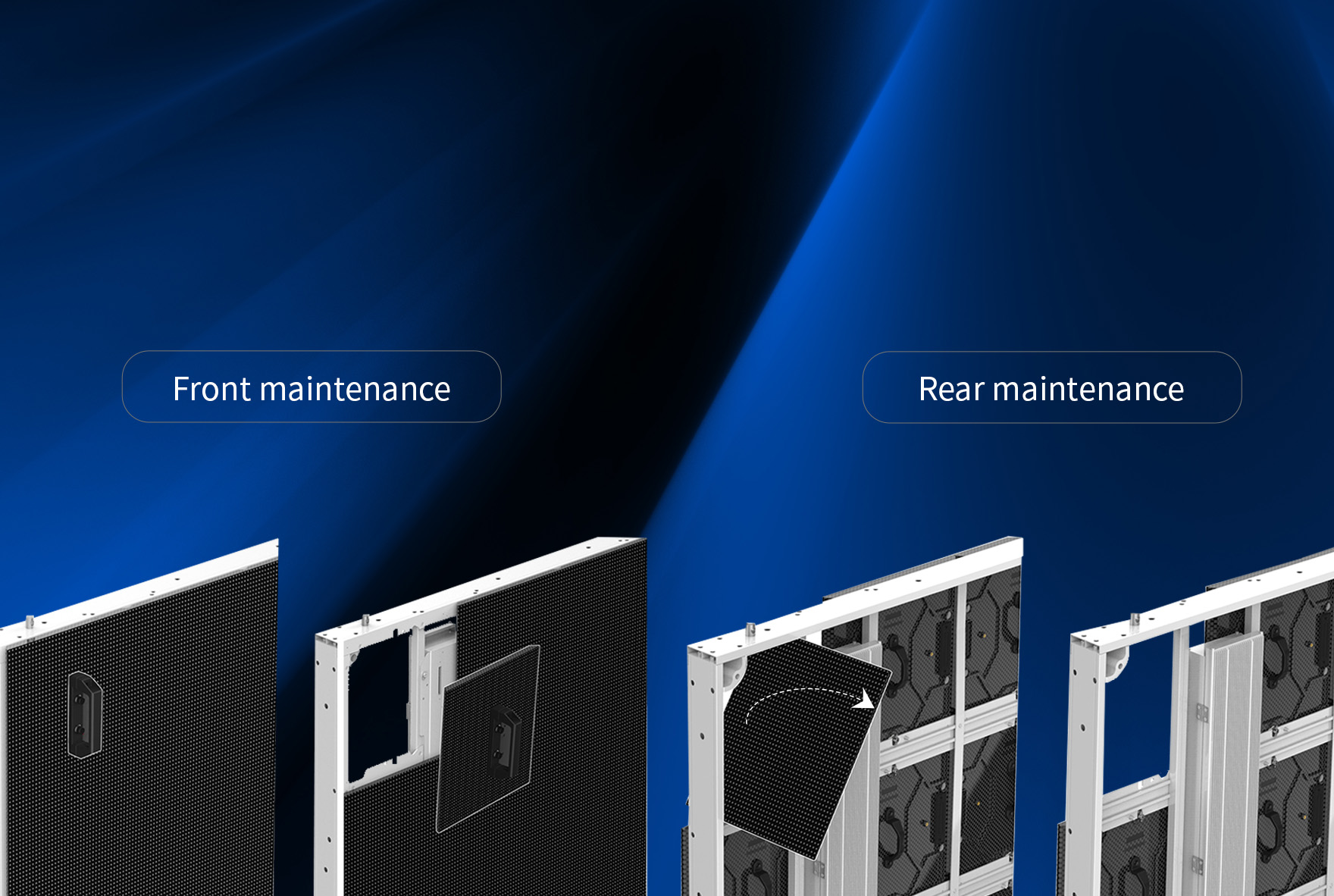

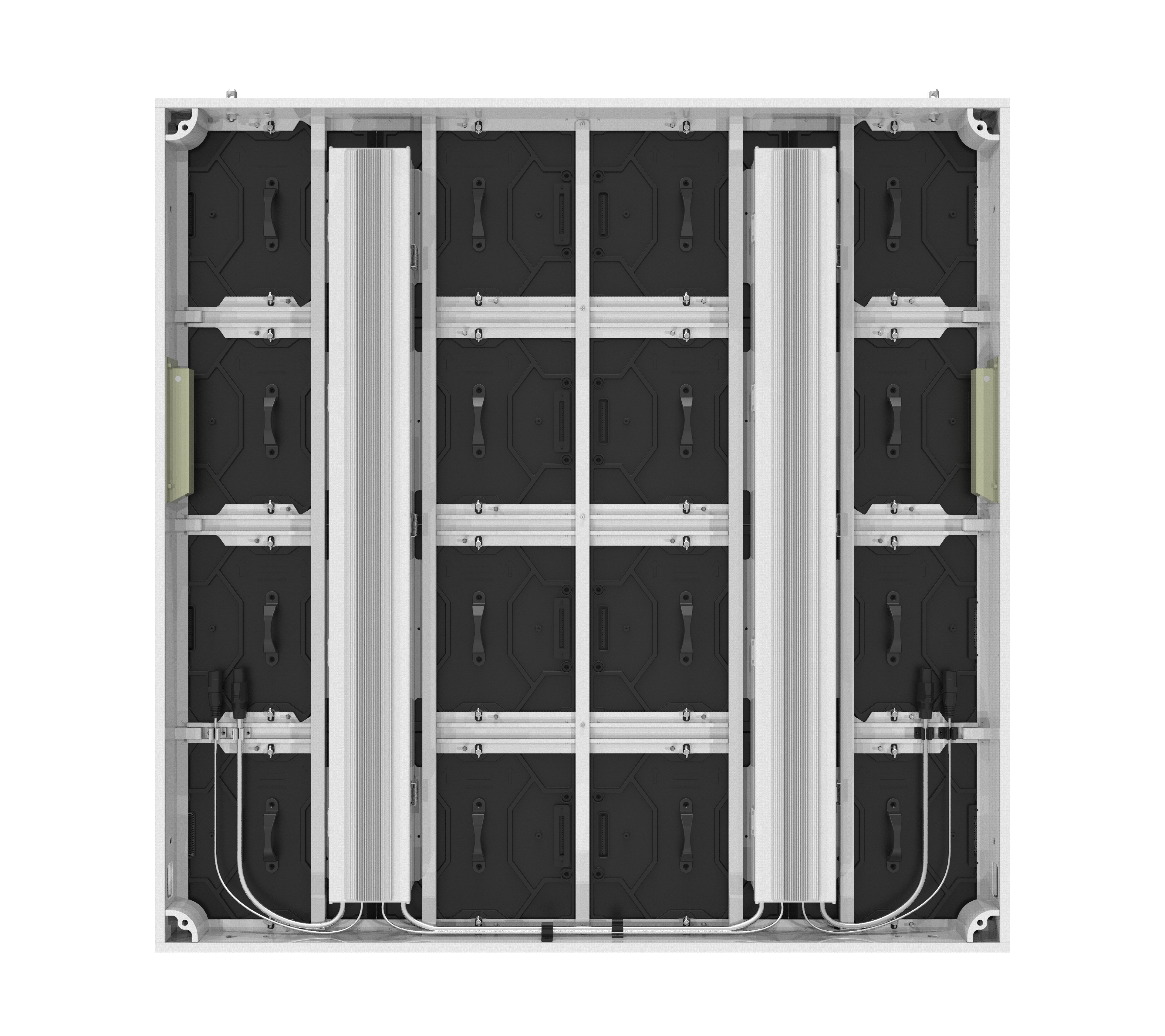

Front and Rear Access for Complete Maintenance
The front rear service LED display design gives maintenance teams access to modules, power supplies and receiving cards from either side. Front access supports direct wall-mounted screens, while rear access suits installations with a service passage. This flexibility adapts component servicing to the building layout.

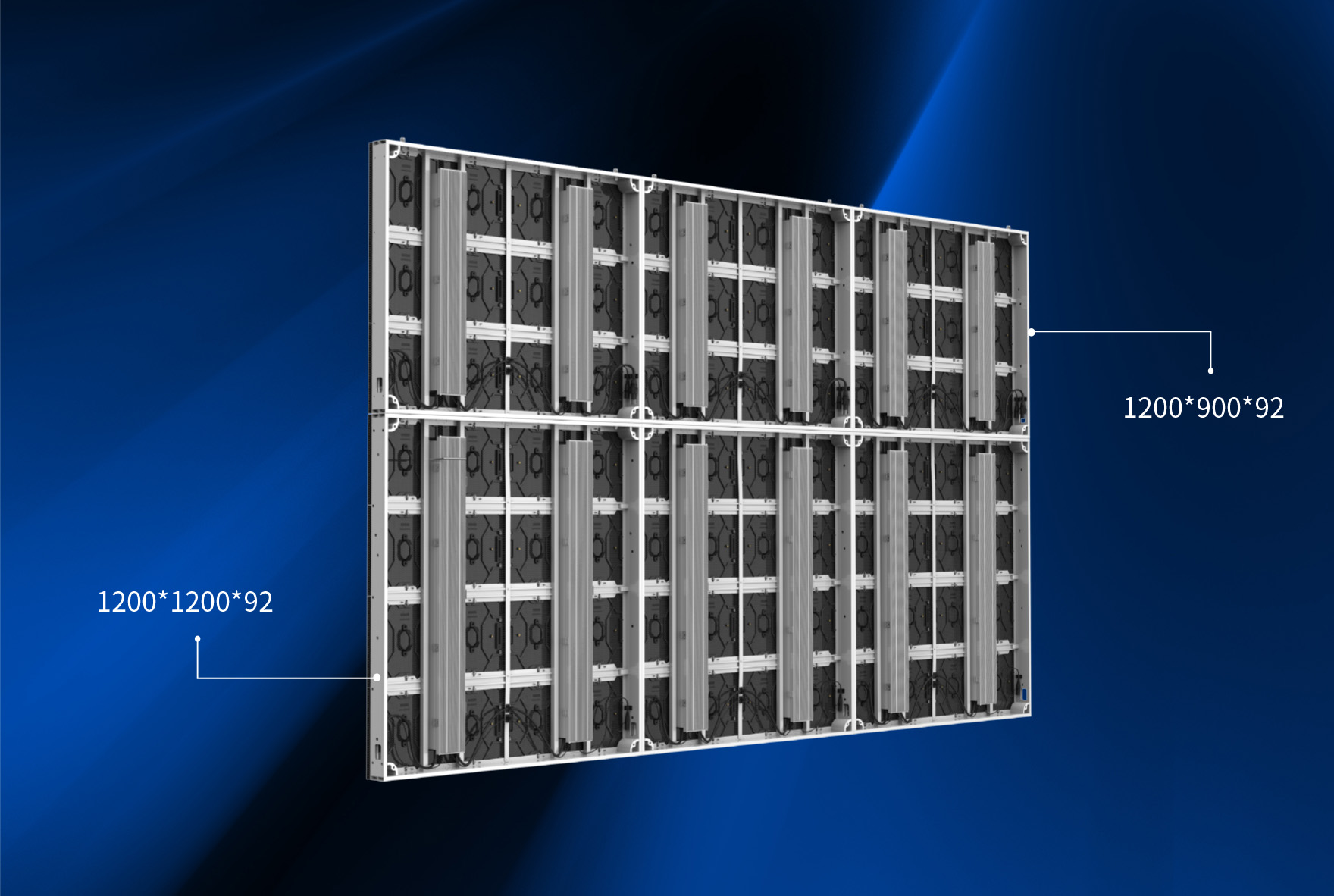

Mixed Cabinet Sizes for Facades and Corners
Two cabinet formats, 1200 × 1200 mm and 1200 × 900 mm, combine within an outdoor LED billboard screen to fit different facade dimensions. Project layouts support flat displays, L-shaped corners and multiple building-front screens. Corner geometry and purpose-designed content work together to create naked-eye 3D advertising.

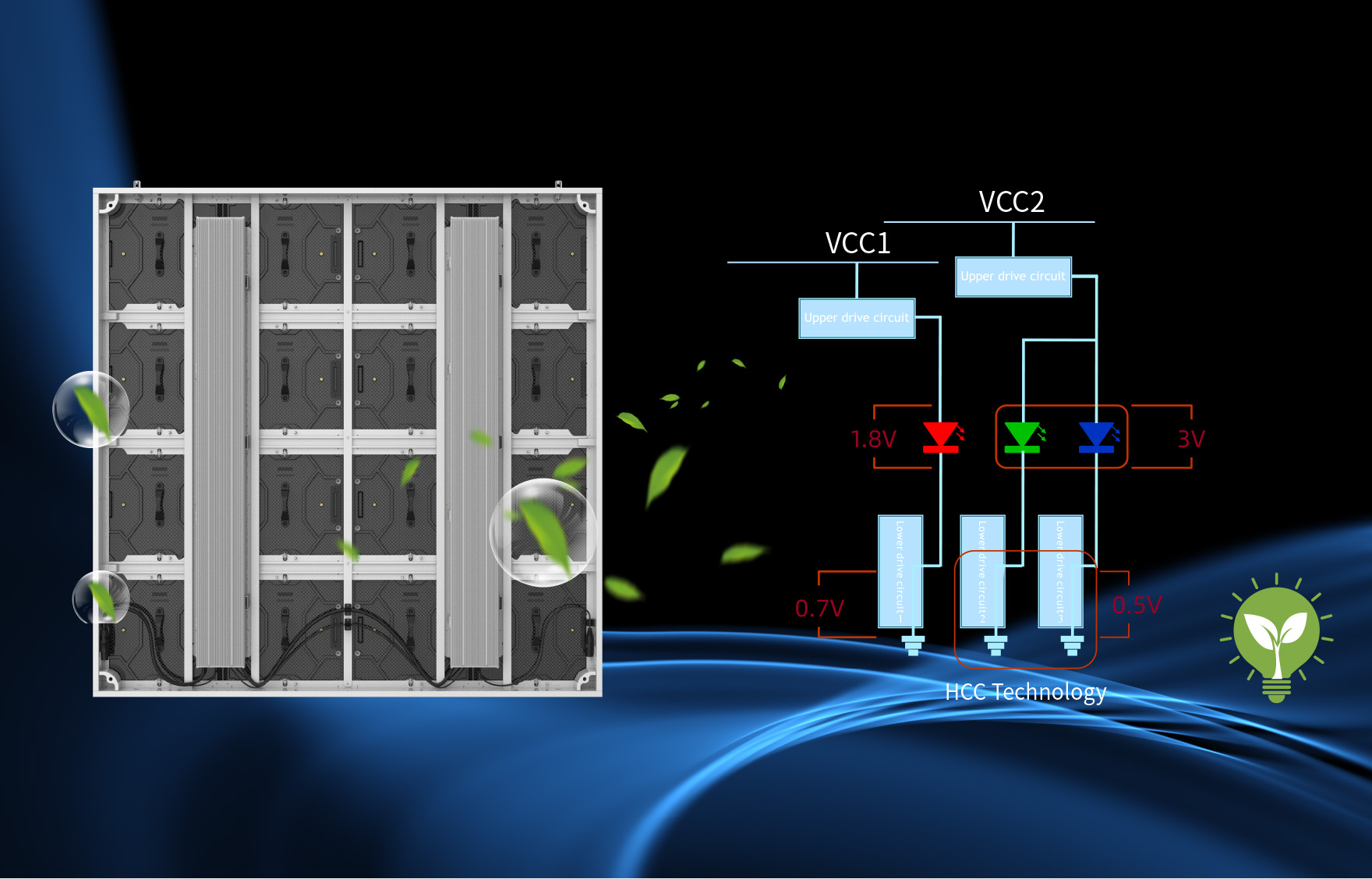

Common Cathode Power Design
High-powered Common Cathode (HCC) technology and dual-channel voltage input improve power efficiency in this common cathode LED display. The energy-efficient LED billboard display combines this power design with 6.8, 8.3 and 10 mm pixel-pitch options for fixed outdoor advertising, exhibition venues and public-facing event screens.

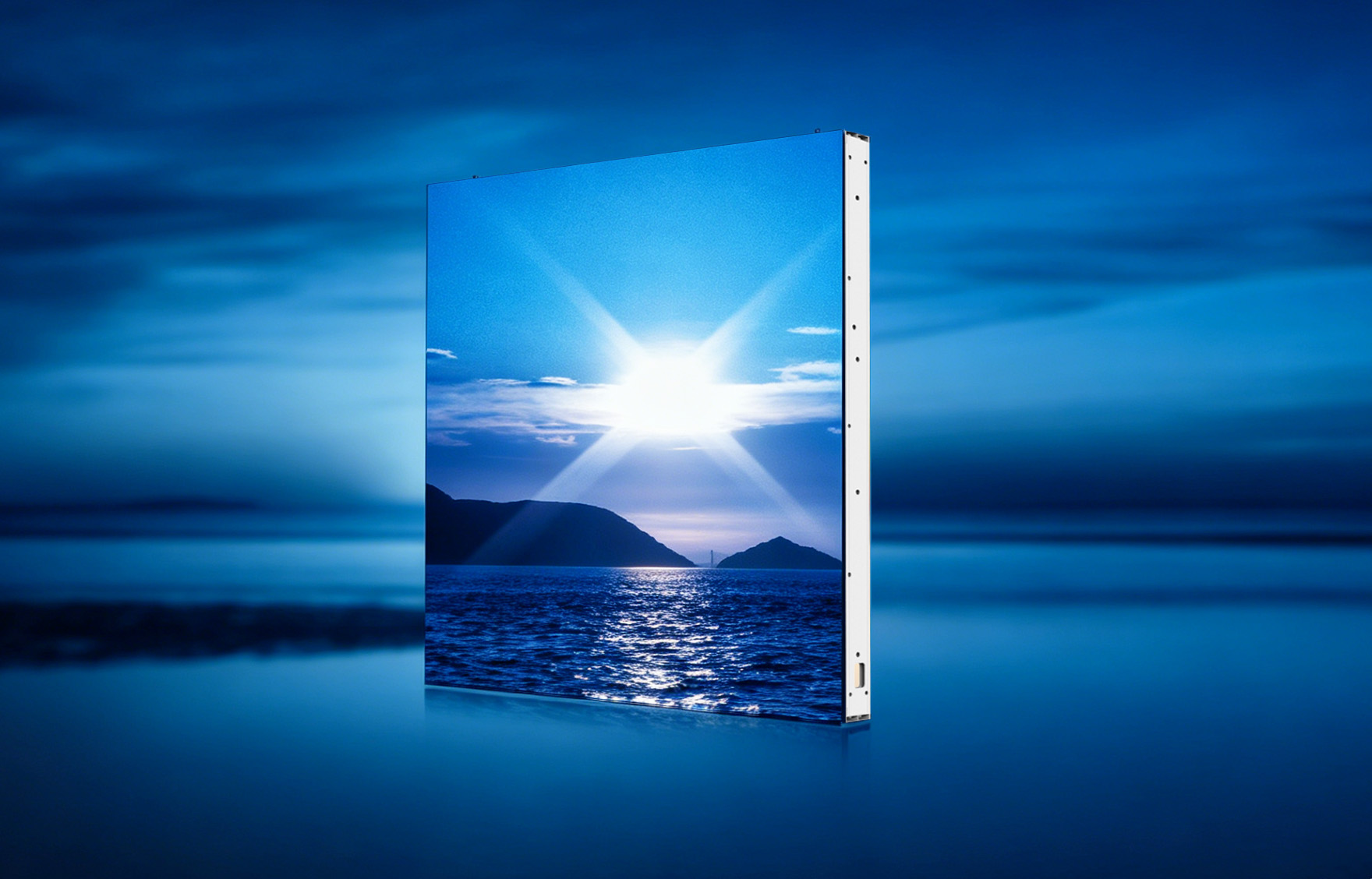

Up to 10,000 Nits for Daylight Advertising
The high brightness LED display range provides 7,500–10,000 nits for Hercules6.8 and 10,000 nits for Hercules8.3 and Hercules10. A 10000 nits LED display configuration keeps advertising and event information visible in strong daylight. Hercules LED panels pair this output with front and rear access for ongoing maintenance.

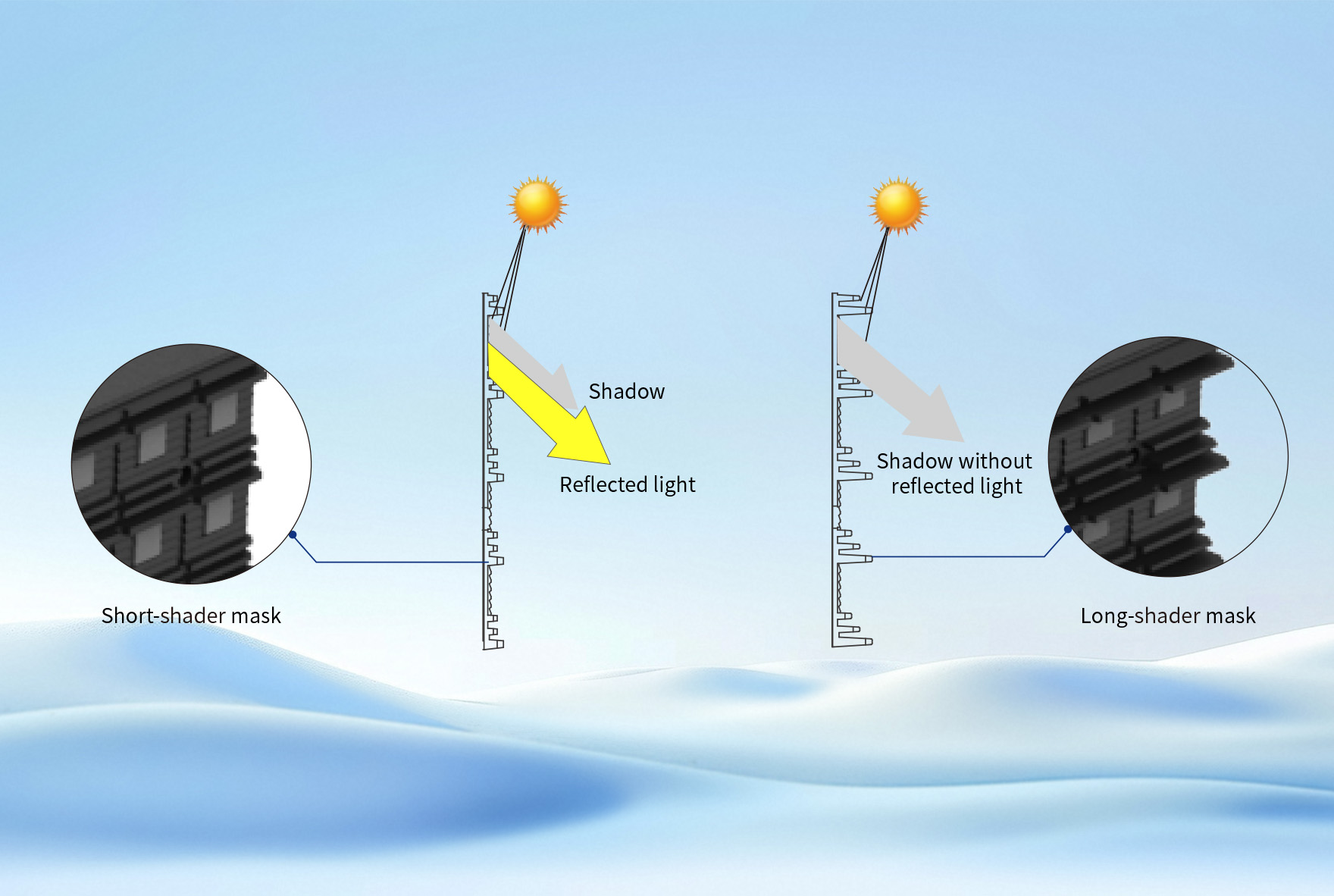

Long-Shader Masks for Outdoor Images
Long-shader masks support image contrast in bright surroundings and help shield the LEDs from dust and sand. A 3840 Hz refresh rate supports smooth video playback. Outdoor thermal design and heat dissipation support installations in hot, dusty environments, while large facade layouts carry advertising, event schedules and visitor information.

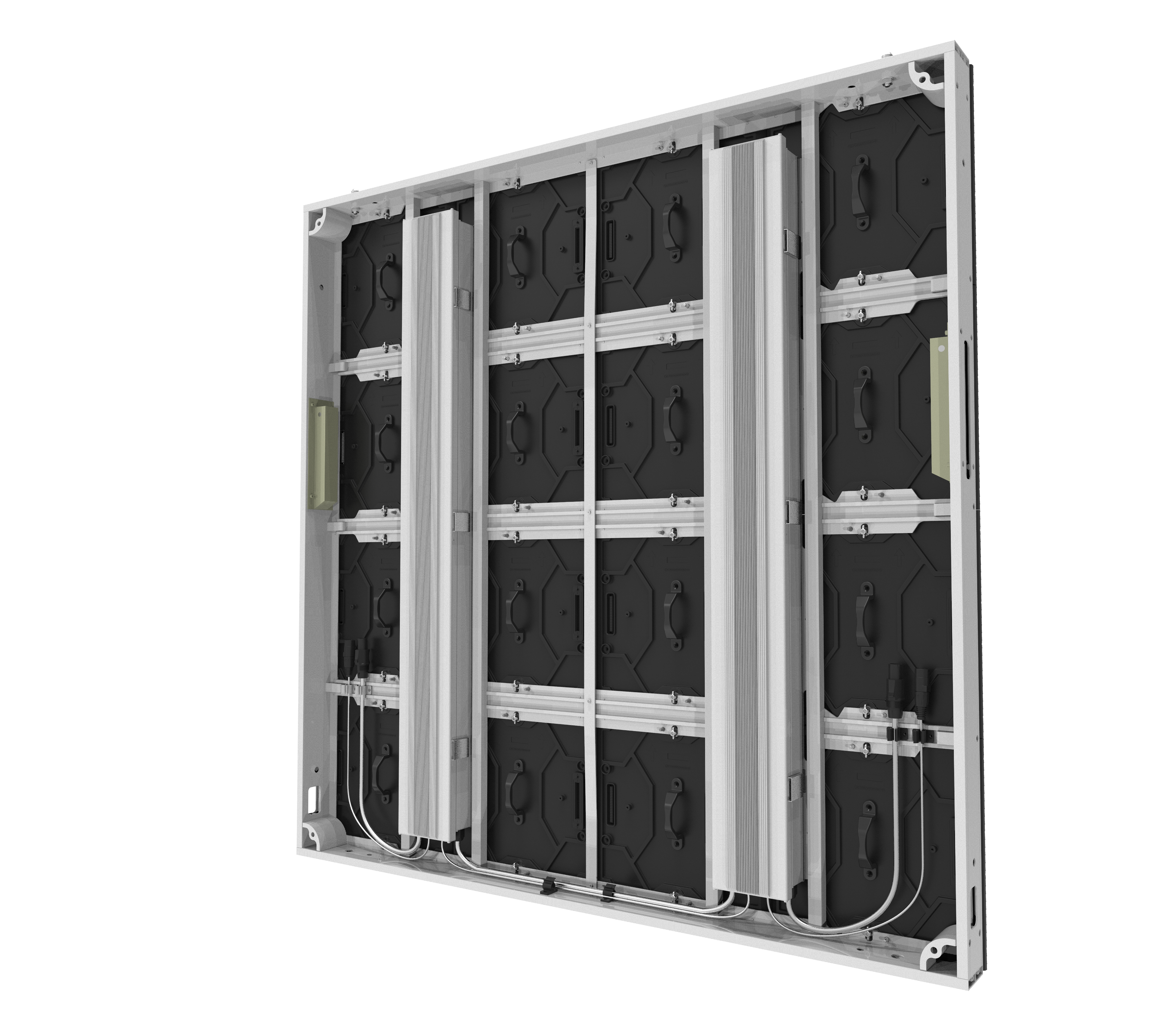

Lightweight Cabinets with Installation Support
Aluminum cabinets weigh 27 kg/m² and measure 92 mm deep, supporting slim facade installations where building load is a key design factor. Lightweight panel selection and mixed-size assembly adapt the screen to the building. On-site installation guidance, technical support and opening-event assistance support the transition from screen assembly to operation.

Product Specifications
| Model | Hercules6.8 | Hercules8.3 | Hercules10 |
| Pixel Pitch (mm) | 6.8 | 8.3 | 10 |
| Panel Resolution | 176*176 / 176*132 | 144*144 / 144*108 | 120*120 / 120*90 |
| Panel Size (mm) | 1200*1200*92 / 1200*900*92 | 1200*1200*92 / 1200*900*92 | 1200*1200*92 / 1200*900*92 |
| Panel Weight (kg/m2) | 27 | 27 | 27 |
| Module Size (mm) | 300*300 | 300*300 | 300*300 |
| Module Resolution | 44*44 | 36*36 | 30*30 |
| Brightness (nits) | 7500-10000 | 10000 | 10000 |
| Serviceability | Front / Rear | Front / Rear | Front / Rear |
| Panel Material | Aluminum | Aluminum | Aluminum |
