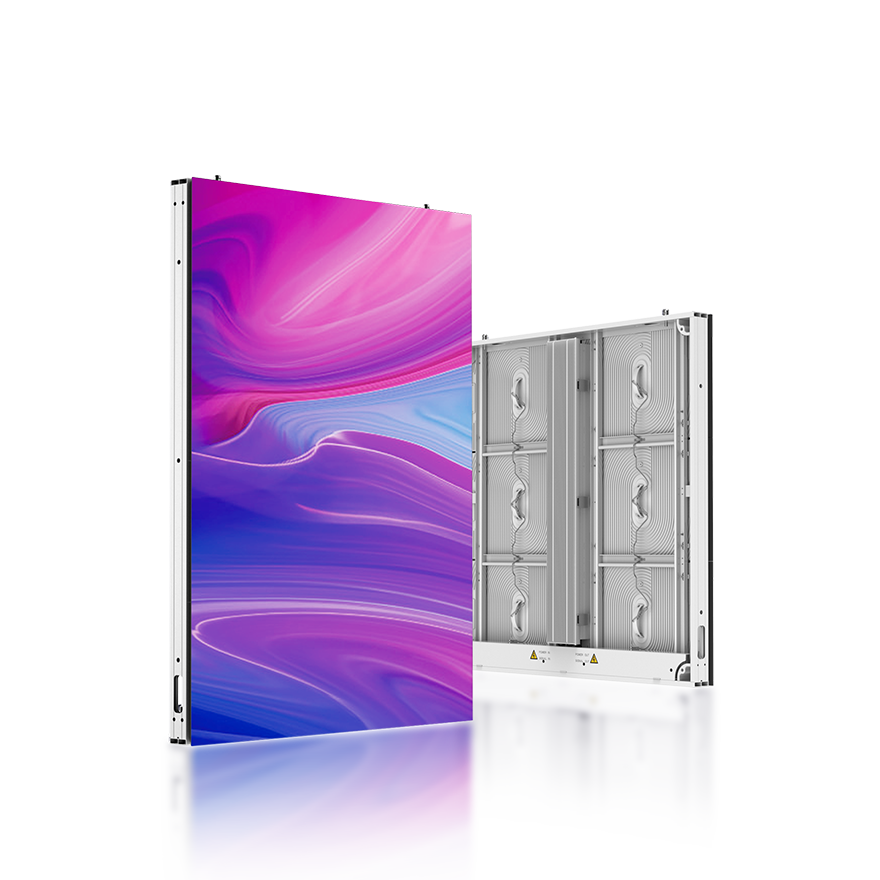

Hercules II P10 Outdoor LED Display

Fixed Outdoor Advertising | Flat, Corner and Curved Layouts

Hercules II is a P10 outdoor LED display for fixed billboards and large commercial facades, with additional 6.67 mm and 8 mm configurations. High-brightness LED options, dual-channel voltage input and IP66 protection support outdoor advertising, while front or rear access and corner layouts adapt the screen to the installation.

10000nits

up to

brightness

IP66

protection

rating

960

cabinet width

(mm)

6.67-10

Pixel Pitch

(mm)

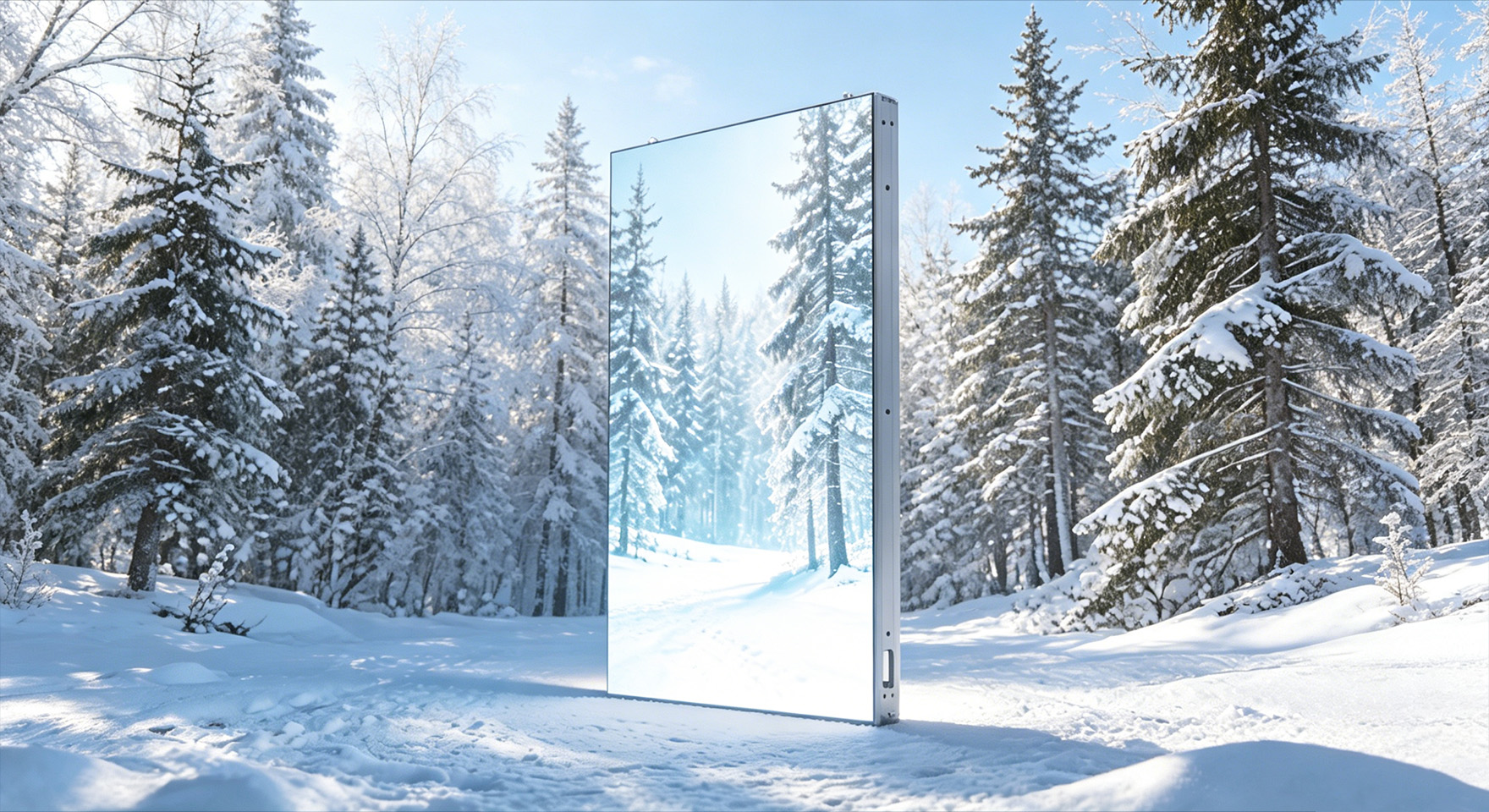

Up to 10,000 Nits for Daylight Advertising

High brightness outdoor LED display configurations combine up to 10,000 nits with long-shader masks for clear images and stronger contrast in direct sunlight.

Low-attenuation LEDs support sustained brightness through extended outdoor operation.

Flat and corner installations turn large facade surfaces into advertising displays.

LianTronics - LED Display Solution Provider | LED Wall | LED Screen

Energy Saving LED Screen Design

Dual-channel voltage input reduces electrical consumption by improving power conversion efficiency. The energy saving LED screen design supports large advertising installations with extended operating hours.

LianTronics - LED Display Solution Provider | LED Wall | LED Screen

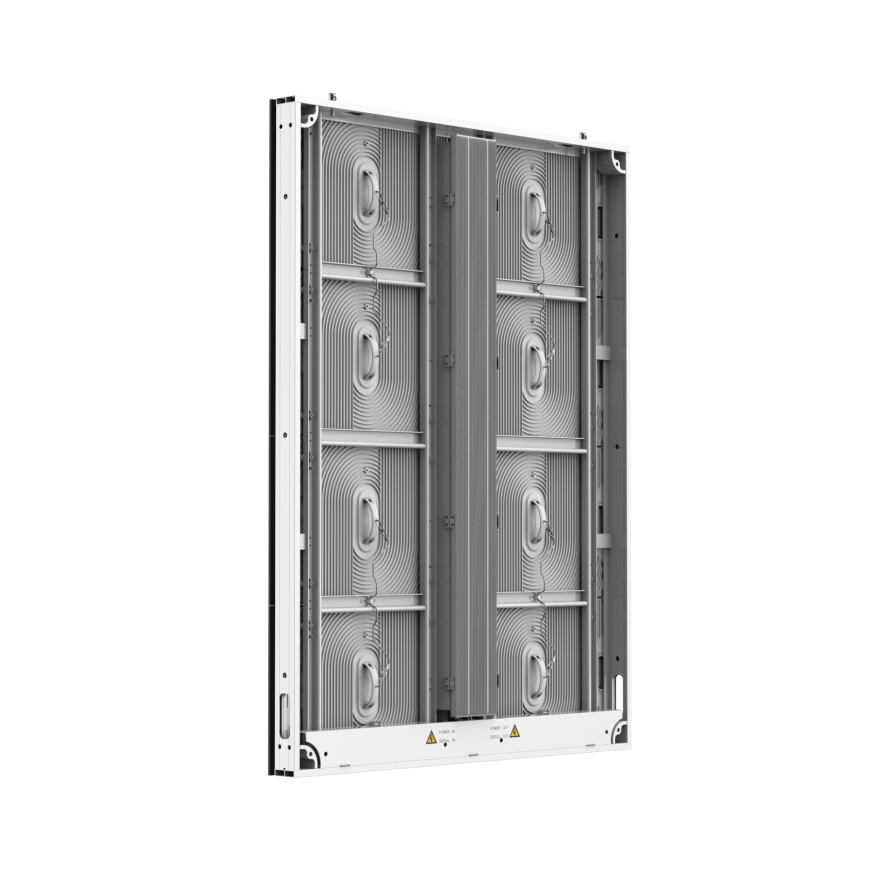

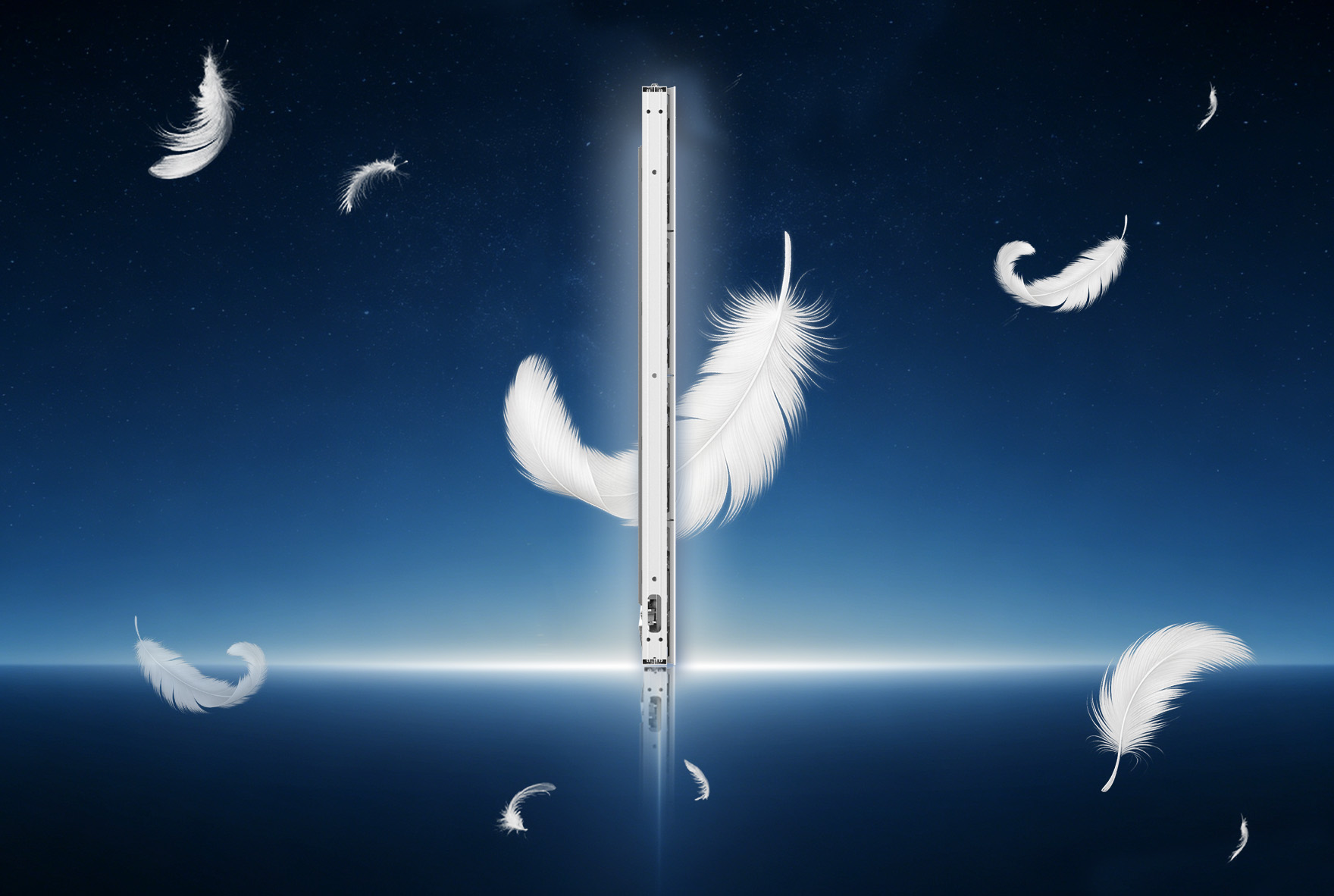

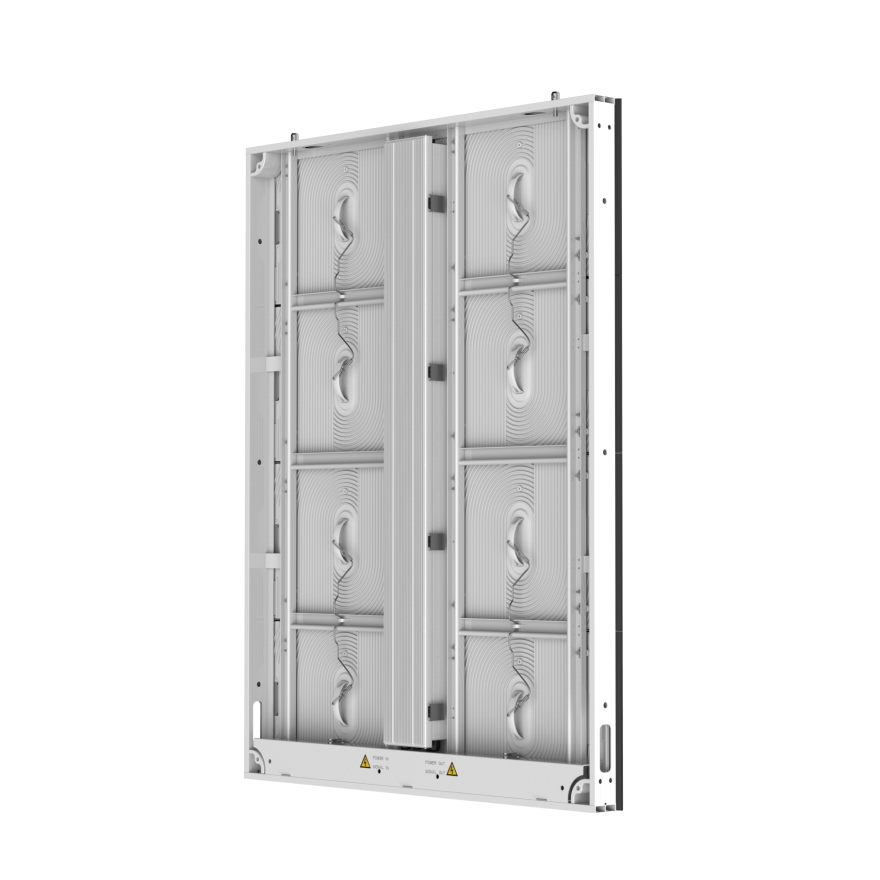

Aluminum Cabinet Structure for Large Displays

Aluminum cabinets support lightweight screen construction, while die-cast module back covers resist deformation. Modular assembly and front or rear access support installation and servicing across large display surfaces.

LianTronics - LED Display Solution Provider | LED Wall | LED Screen

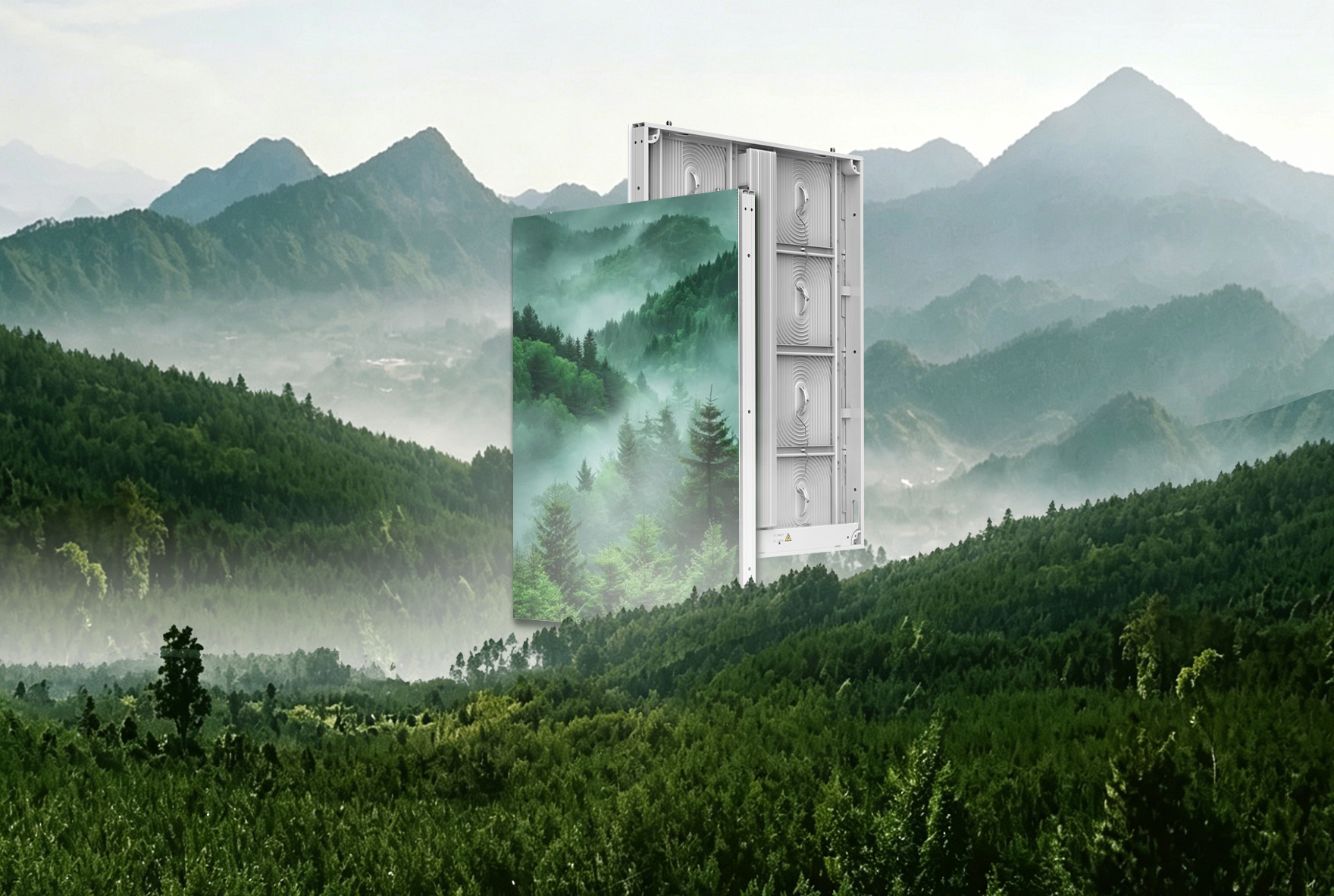

Install & Maintain with Higher Flexibility

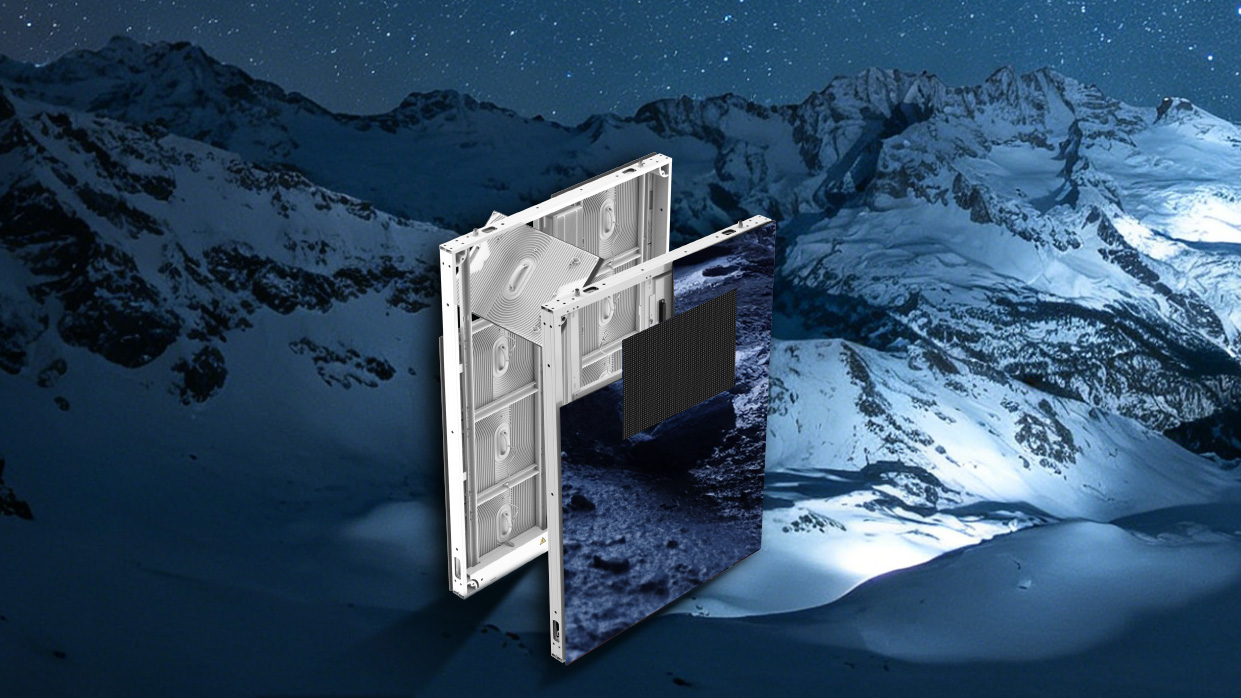

  • Support front & rear maintenance

    Left and right modules can be used in common

    LianTronics - LED Display Solution Provider | LED Wall | LED Screen

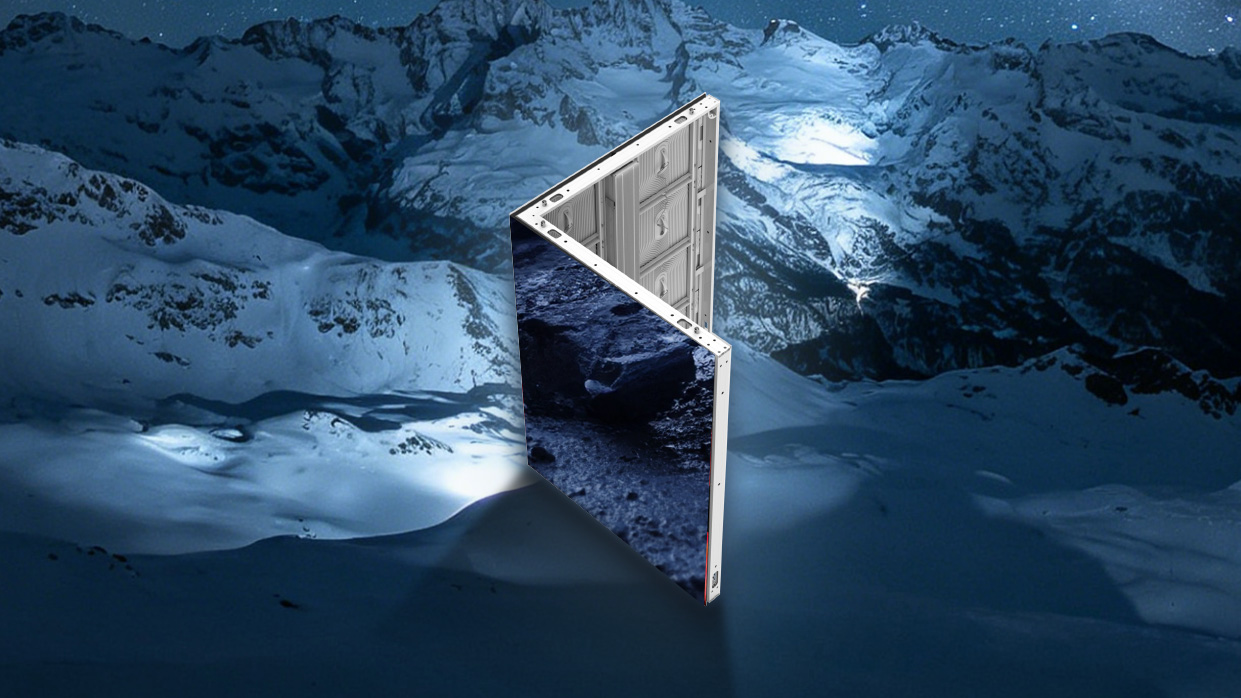

  • 90° splicing

    LianTronics - LED Display Solution Provider | LED Wall | LED Screen

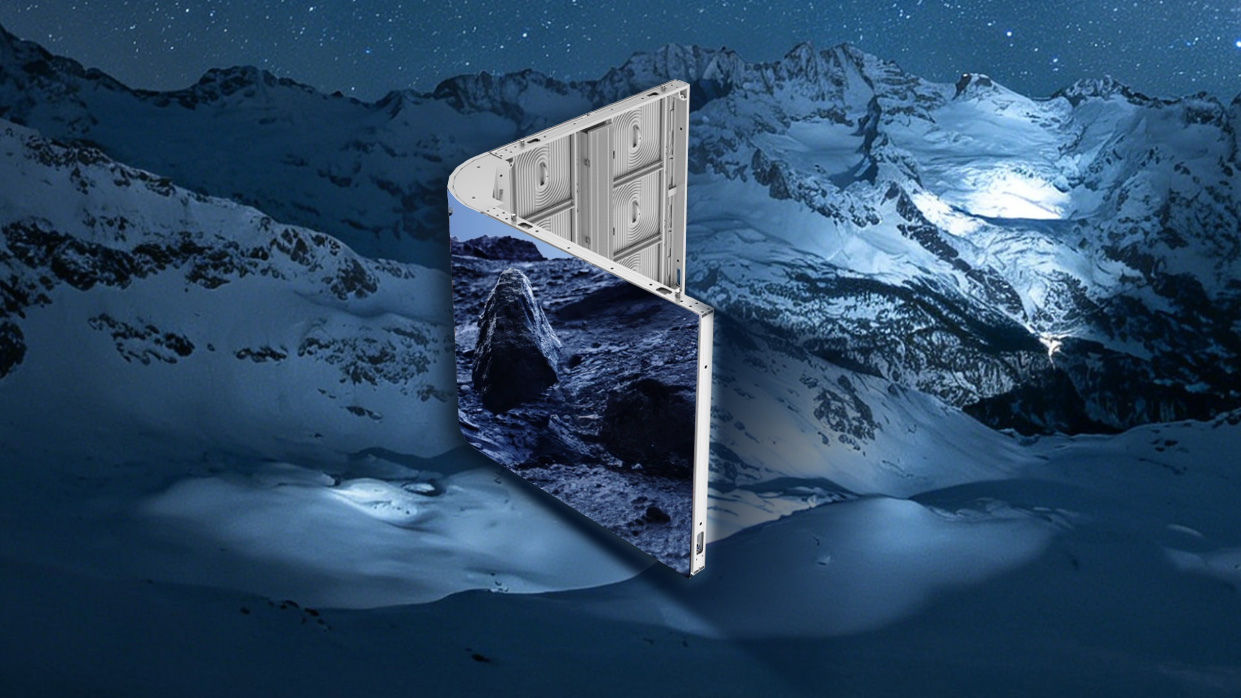

  • Curved splicing for naked-eye 3D display

    LianTronics - LED Display Solution Provider | LED Wall | LED Screen

Hercules II Configuration and Installation Capabilities

Large-format cabinet layouts, high-brightness LED options and front or rear access support outdoor advertising across building facades and commercial sites. Flat, right-angle and curved configurations extend the display to different architectural surfaces.

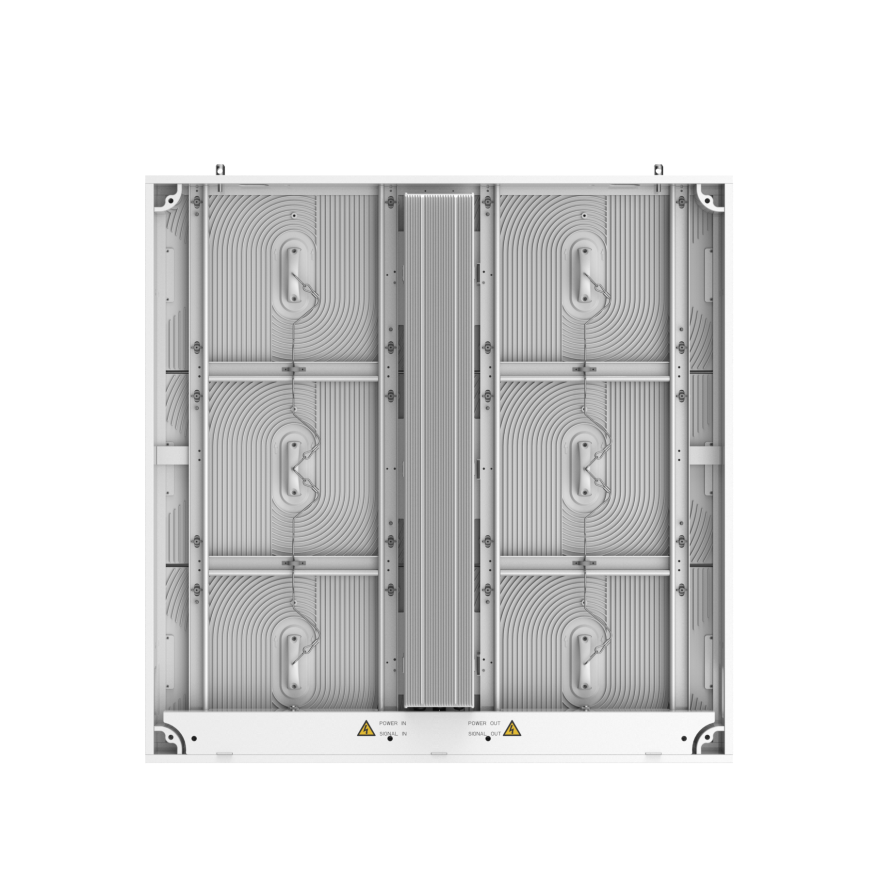

P10 and 960 × 960 mm Cabinet Configuration

The P10 outdoor LED display configuration combines a 10 mm pixel pitch with 960 × 960 mm cabinets, each containing 96 × 96 pixels. A 960 × 1280 mm cabinet provides 96 × 128 pixels for taller layouts. The series also includes 6.67 mm and 8 mm options for installations requiring more pixels within the same area.

Outdoor commercial advertising LED video wall billboard 10mm 960x960: this Hercules II configuration combines modular cabinet assembly, front or rear service and large-format advertising capability in one fixed-installation system.

High Brightness for Daylight Advertising

High brightness outdoor LED display configurations reach up to 10,000 nits. Long-shader masks improve contrast, while low-attenuation LEDs support sustained brightness for outdoor media operation.

Modular cabinet layouts scale across large commercial facades. Refresh rates up to 7,680 Hz support smooth motion, while high-brightness configurations keep advertising visible in direct sunlight.

Energy Saving LED Screen Design

Dual-channel voltage input improves power conversion efficiency and reduces electrical consumption. This energy saving LED screen design addresses the operating demands of large advertising surfaces and extended daily schedules.

Programmable, automatic and manual brightness adjustment provide operating control as ambient light changes. Cabinet layout and power distribution planning connect the screen area with the site's electrical installation.

IP66 Protection and Service Access

The IP66 outdoor LED display enclosure protects both the front and rear of the screen. Aluminum cabinets and die-cast module back covers combine heat dissipation with resistance to deformation.

Front and rear installation and maintenance support both facade-mounted screens and structures with rear access. Universal left-right modules simplify spare-module provision and replacement across the display.

Corner and Curved 3D LED Billboard Layouts

Right-angle cabinet connections and curved configurations extend advertising across adjoining screen faces. A 3D LED billboard combines this display geometry with perspective-designed content and a defined viewing area to create a glasses-free effect.

Corner and curved cabinet layouts carry glasses-free 3D content across adjoining facade surfaces. Precise panel alignment and on-site image calibration create a continuous image across the screen faces. Explore FS creative display options.

Structural Integration and Commissioning

Site surveys and construction scheme review coordinate mounting loads, support-frame layout, cable routes and maintenance access. Ventilation planning addresses heat around the screen, while installation guidance connects the cabinet arrangement with the building structure.

On-site calibration adjusts brightness, contrast and image consistency for the viewing conditions. This engineering support carries a large-format display from its cabinet layout through installation and commissioning.

A Billboard Configuration Built Around Your Site

Technical consultation brings pixel pitch, cabinet dimensions, brightness, display geometry and service access into one project specification, supported by installation planning and commissioning guidance.

Product Specifications

*Swipe right to see all
Model HerculesII 6.67 HerculesII 8 HerculesII 10
Pixel Pitch (mm) 6.67 8 10
Panel Size (mm) 960*1280*78/960*960*78
Panel Resolution 144*192/144*144 120*160/120*120 96*128/96*96
Weight (Kg/pc) 28
Brightness (nits) 7500-10000
Maximum Power Consumption (W/㎡) 680
Serviceability Front/Rear
