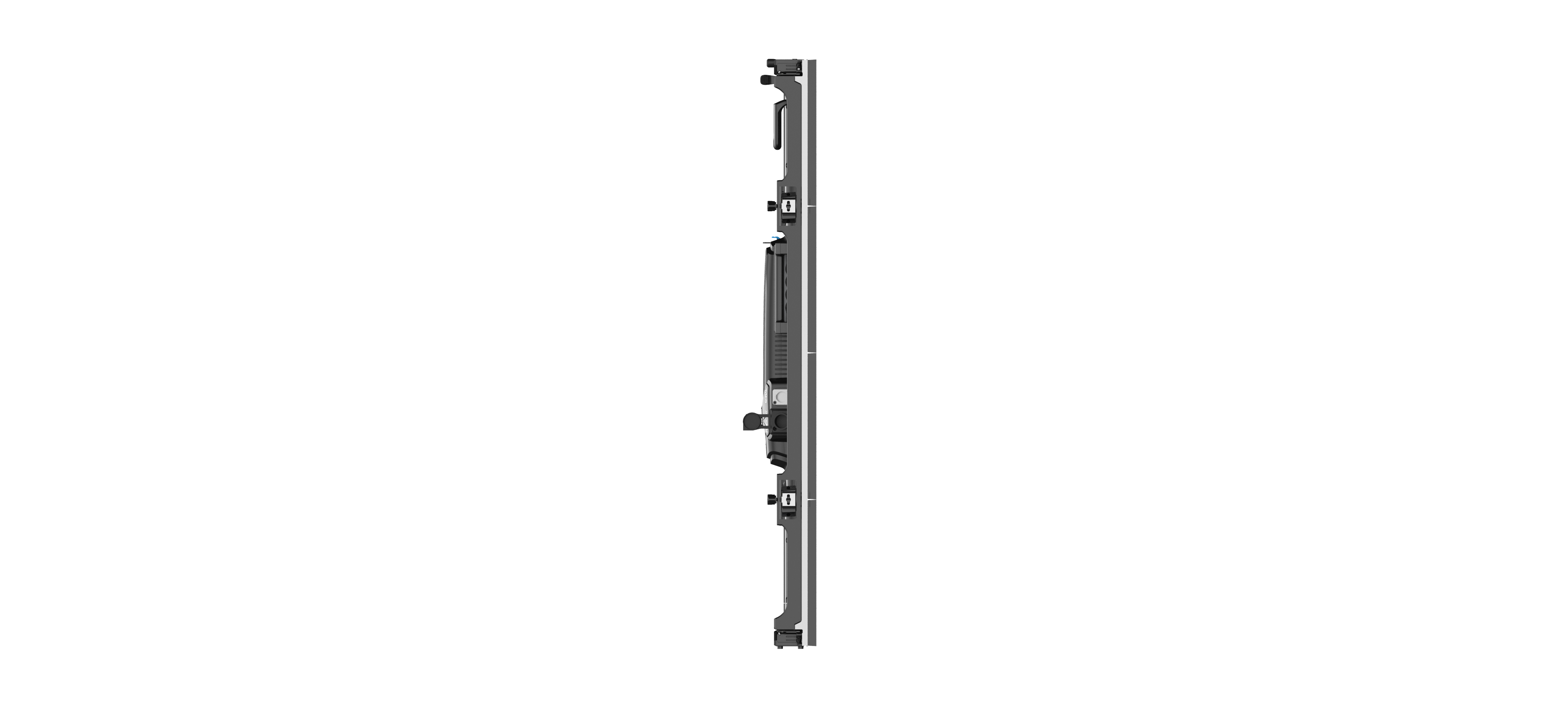

Shine Pro Series with considerate details facilitates high-speed installation & labor-saving set-ups.

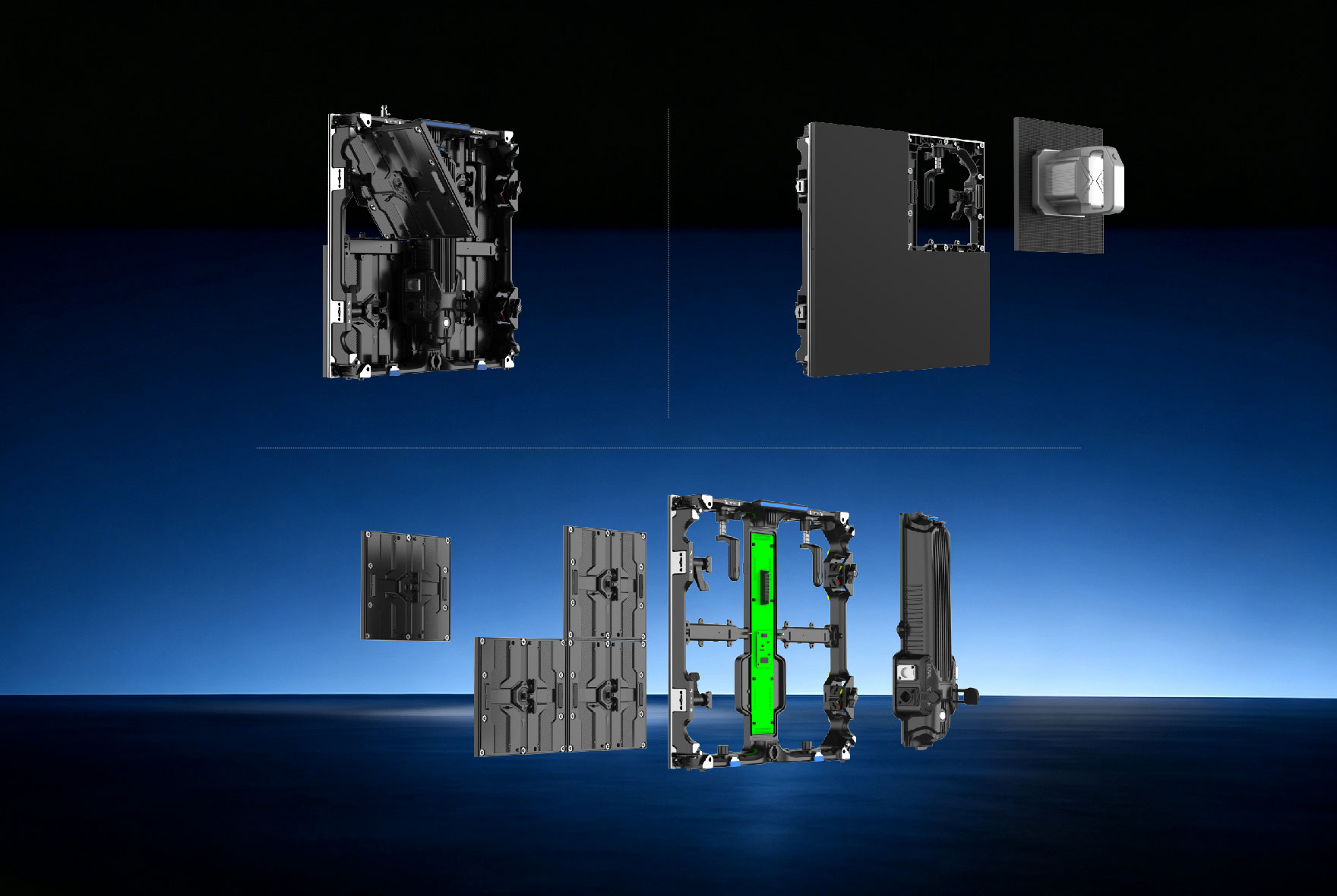

Module: front & rear maintenance
Power supply box: rear maintenance
Universal power supply box: only one kind of spare parts

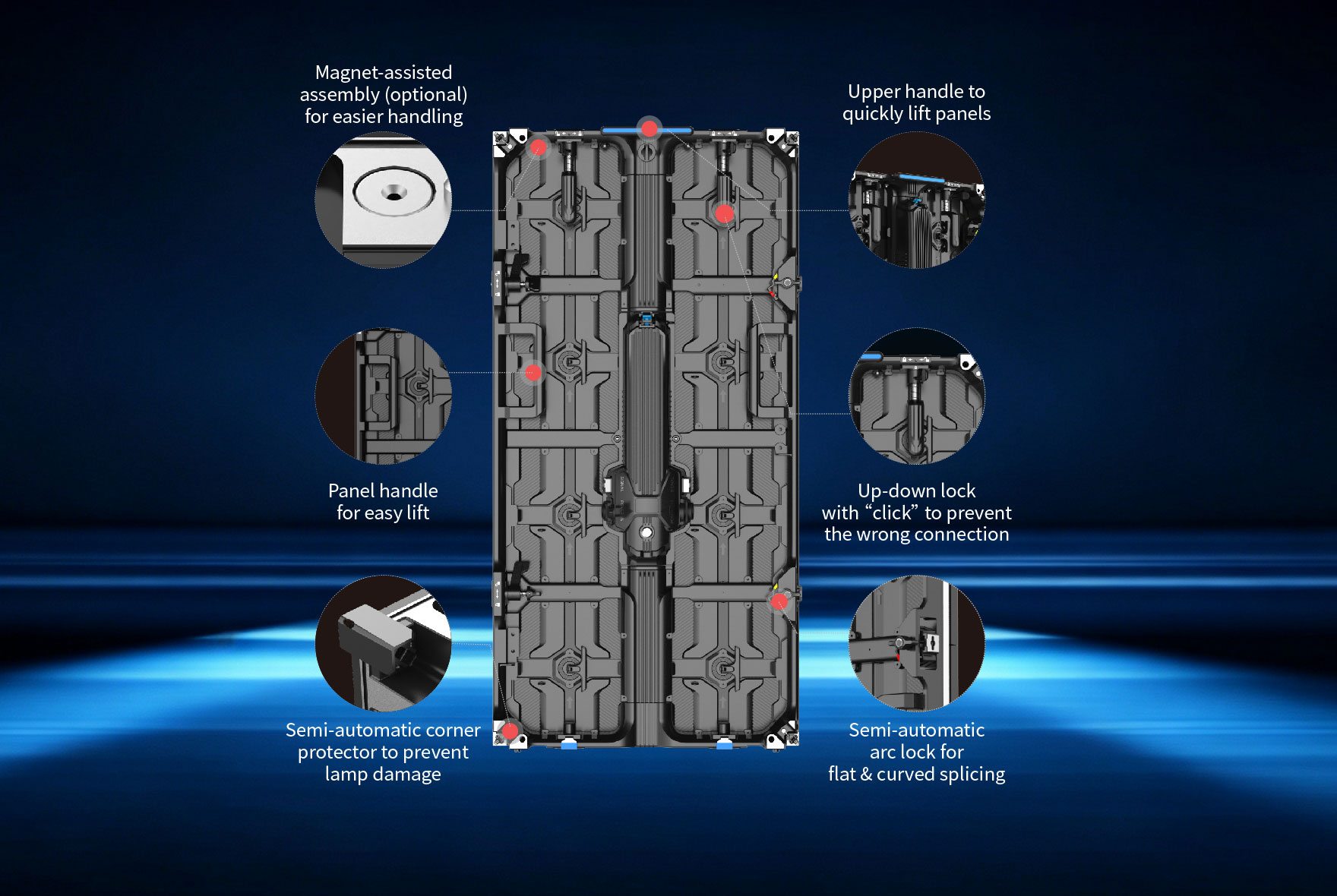

Integrated fully die-casting aluminum panels for high precision

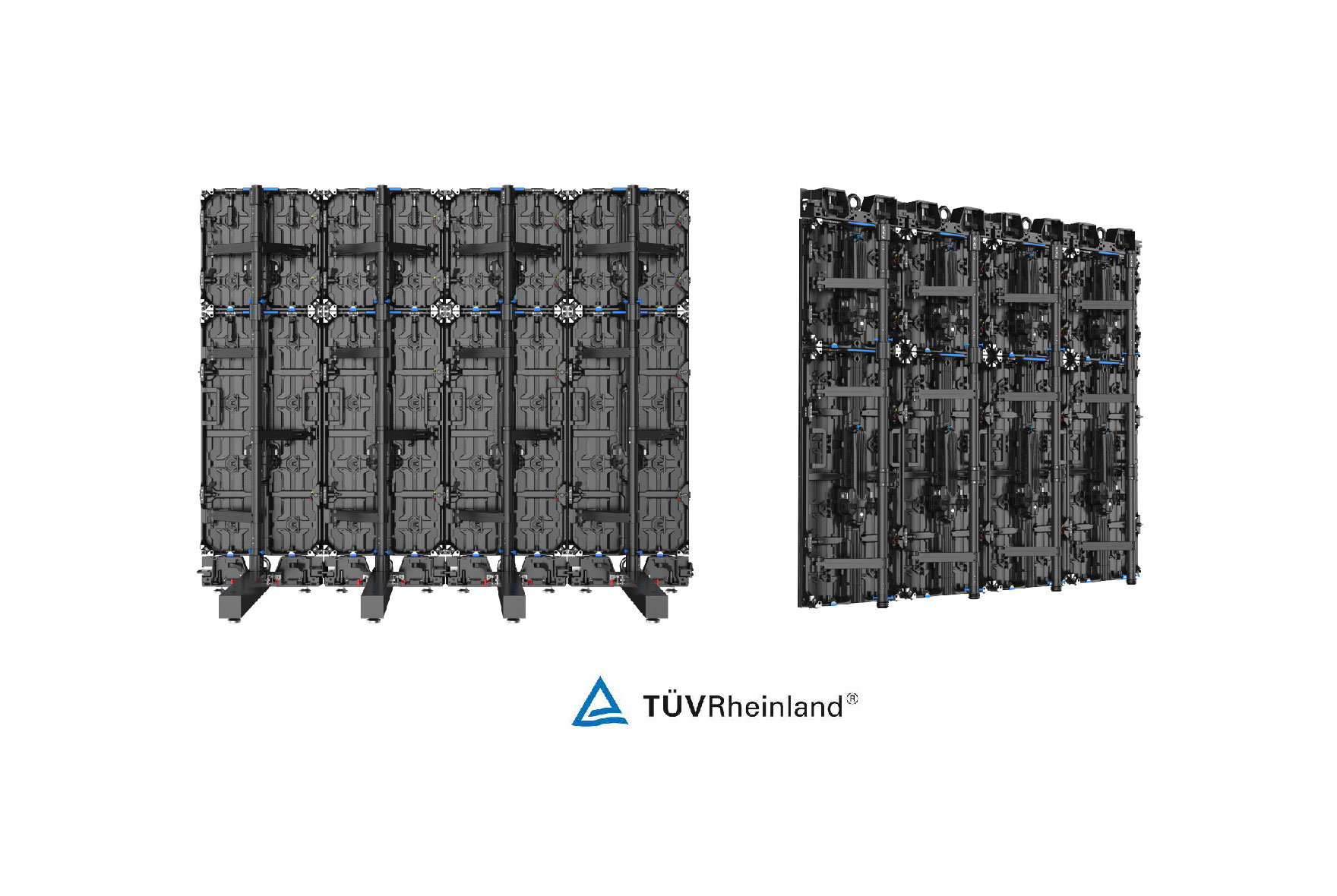

Hanging (TUV tensile test) and stacking (compression test) with 2-in-1 bars
Maximum hanging height is 15m (only panels) and 10m (panels with wind frame)

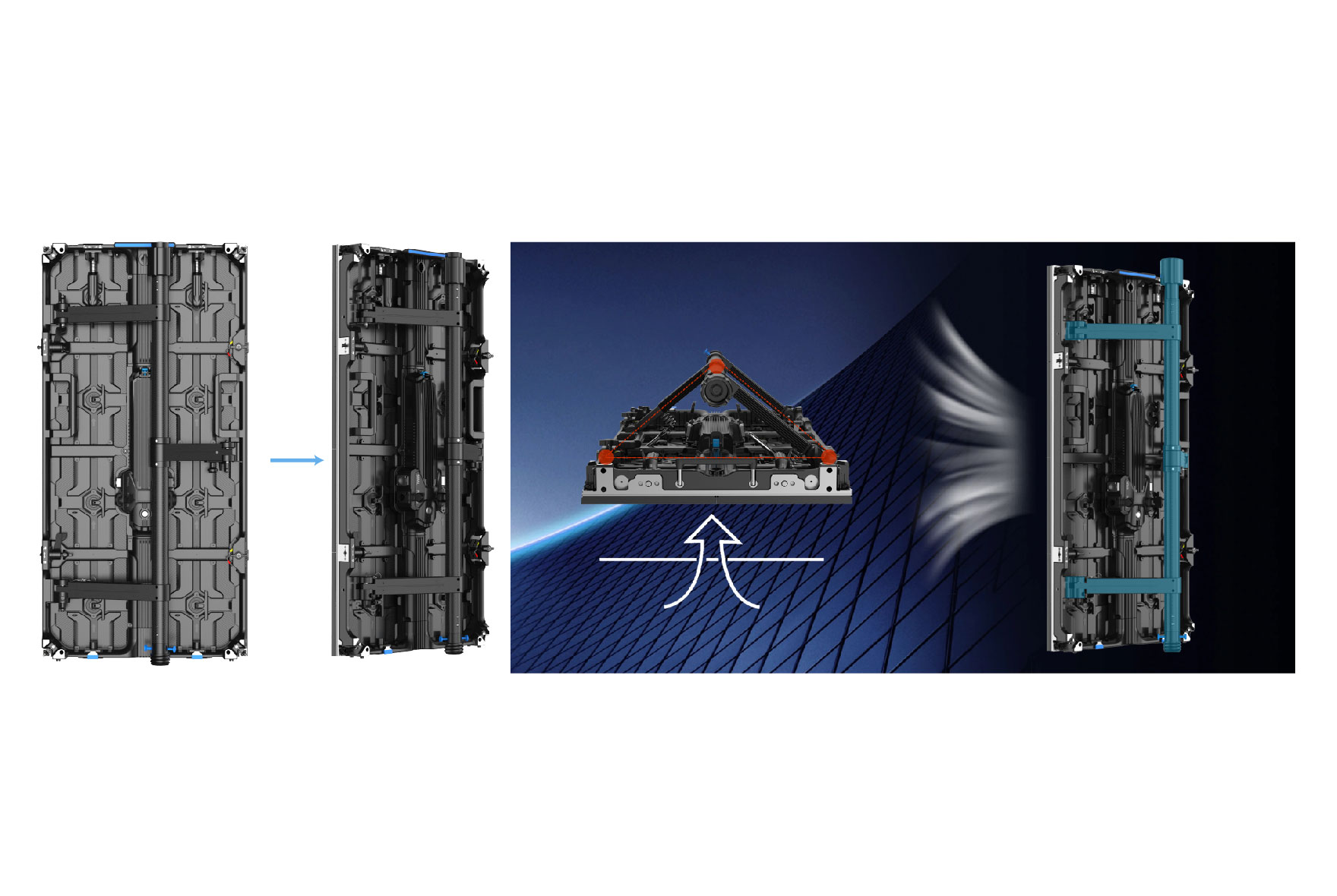

Climbable aluminum-alloy wind-resistant frame
Easy to assemble/disassemble from panels
TUV Wind Resistance Test (Typhoon Level 8, Wind Speed 20m/s)
Avoid screen’s swinging while hanging and as one of the back shelves while stacking

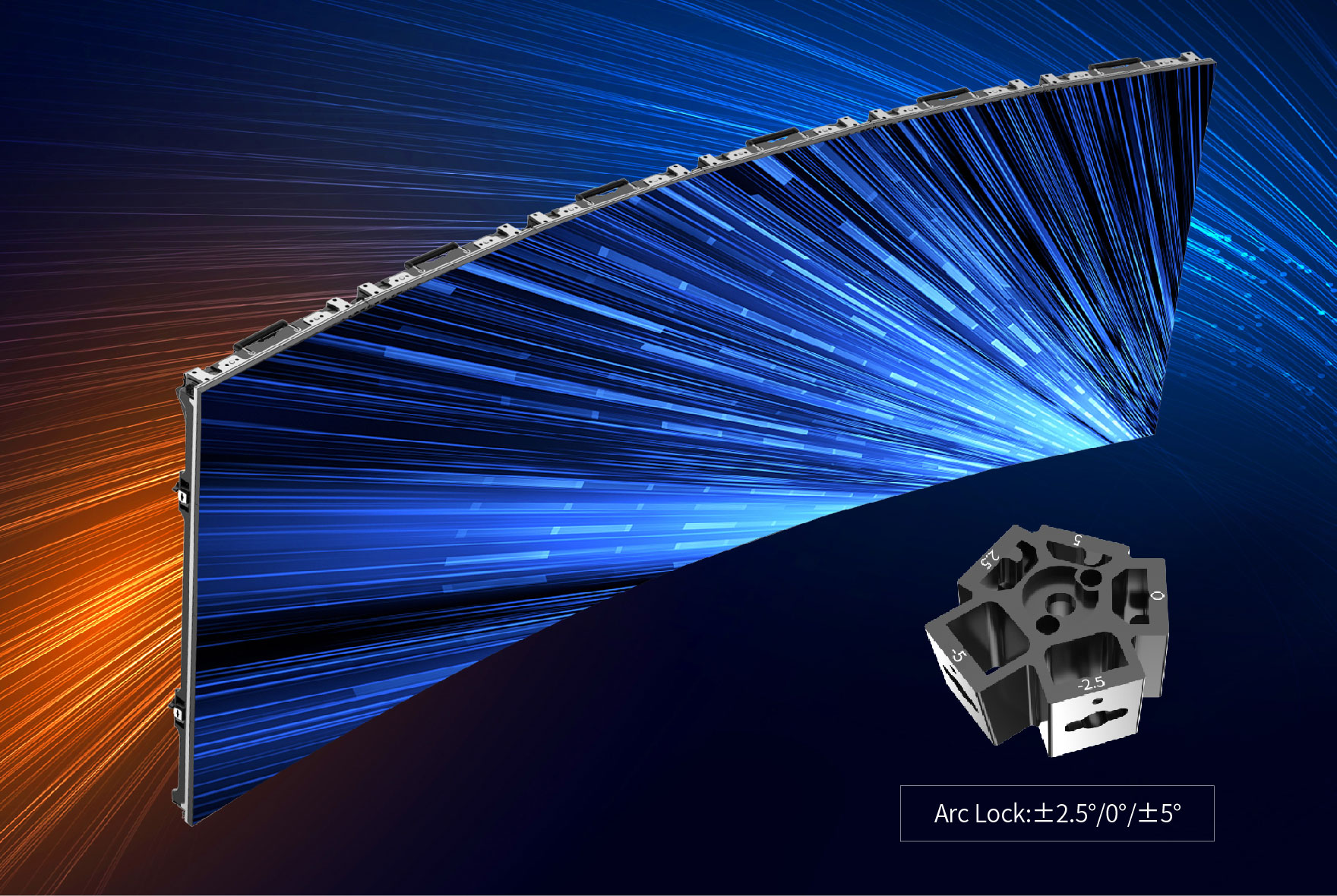

Standard arc lock:±2.5°/0/±5°, Optional arc lock: ±3°/0/±6°
A smaller arc lock, a larger radius, and more spaces
A smaller arc lock, no white line and dark line, better visual

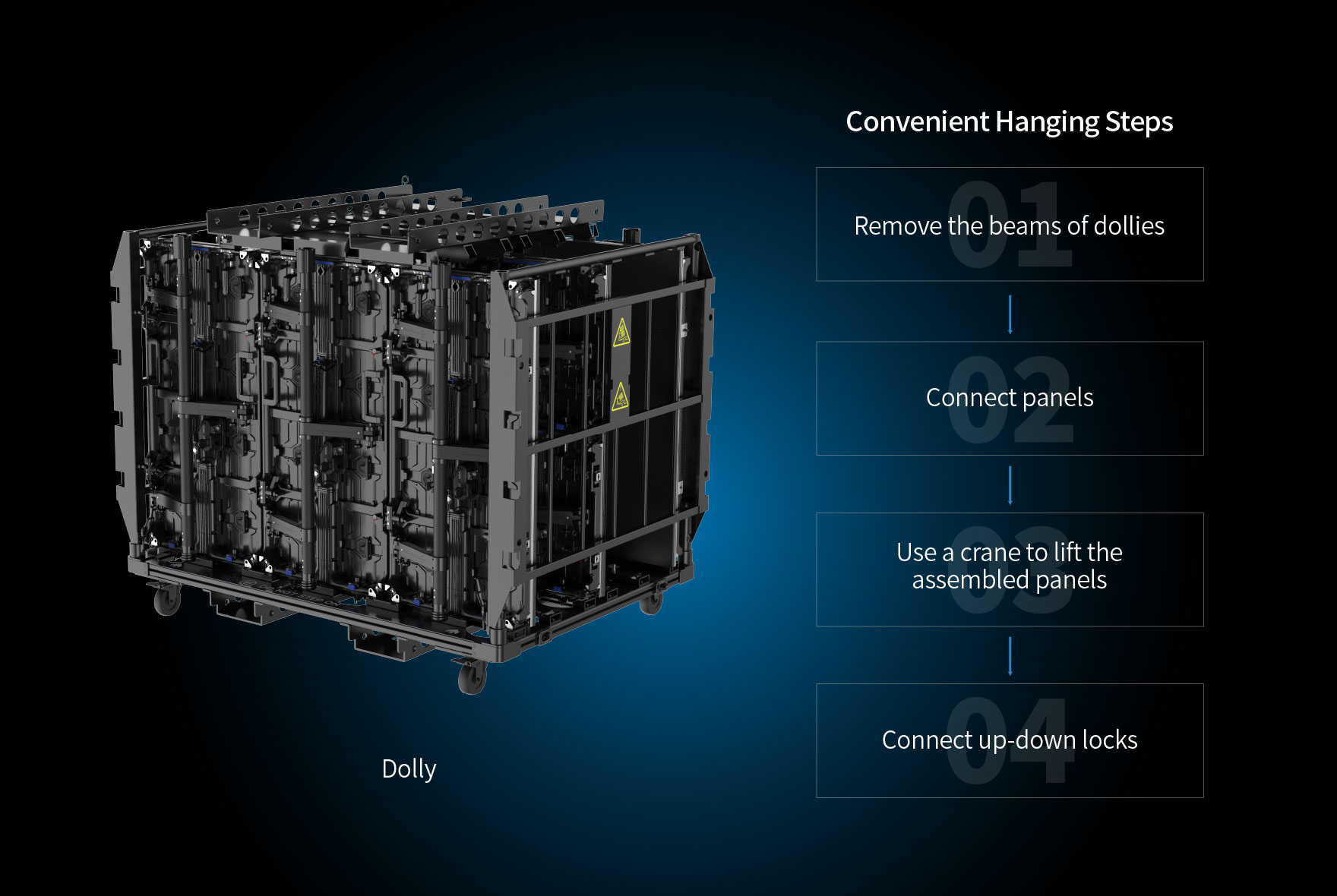

Dolly solution: weight 128 kg with 12 panels capacity
40HQ container: accommodate 40 Dollies, i.e. 480 panels
Model | Shine Pro2.9 |
Shine Pro3.9 |
Shine Pro4.8 |
Pixel Pitch | 2.9 | 3.9 | 4.8 |
Panel Size W*H*D (mm) | 500*500*74/500*1000*74 |
500*500*74/500*1000*74 |
500*500*74/500*1000*74 |
Panel Resolution W*H | 168*168/168*336 |
128*128/128*256 |
104*104/104*208 |
Panel Material |
Die-Casting Aluminum
|
Die-Casting Aluminum
|
Die-Casting Aluminum
|
Weight (Kg/pc) | 8.7/14 | 8.7/14 |
8.7/14 |
Brightness (nits) | 4500 | 5000 | 5000 |
Serviceability |
Rear |
Rear |
Rear |
