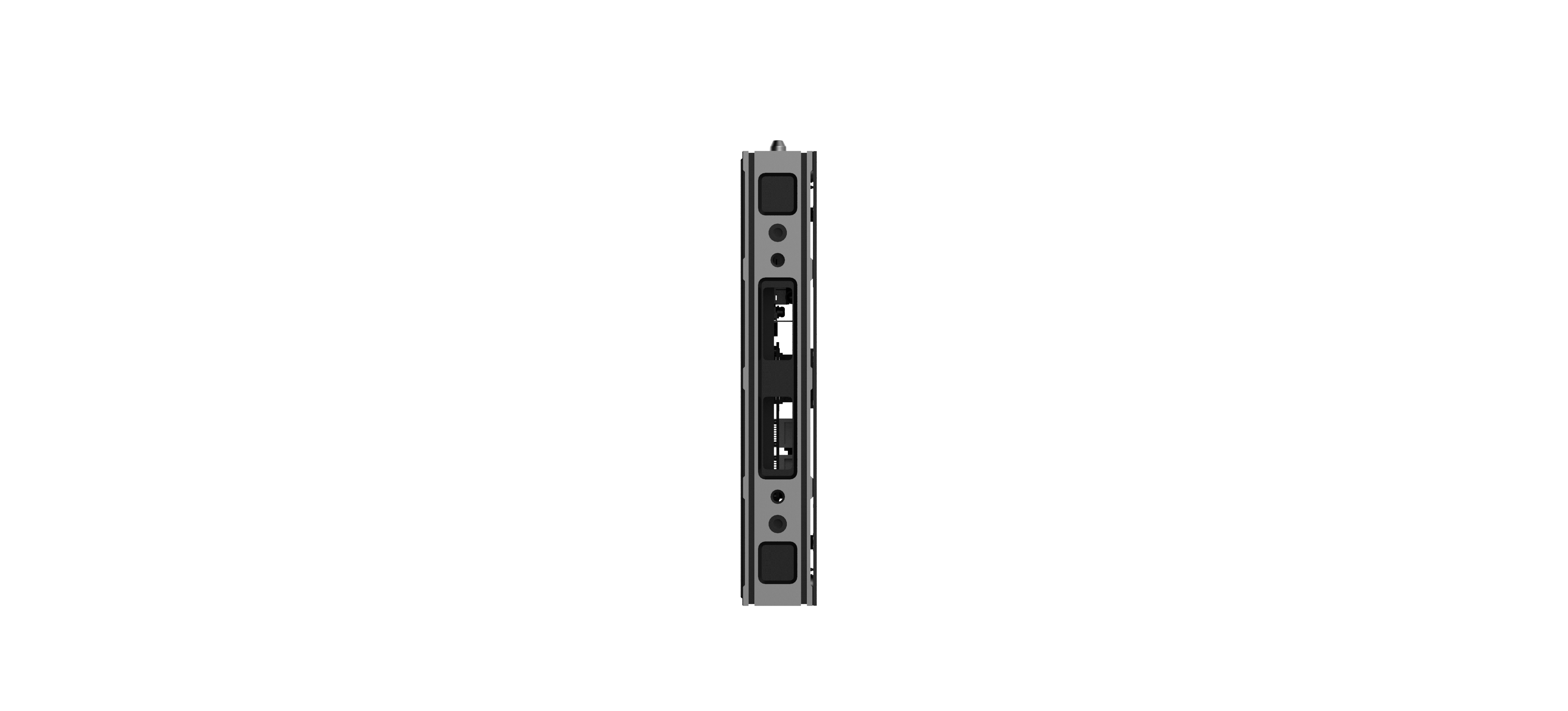

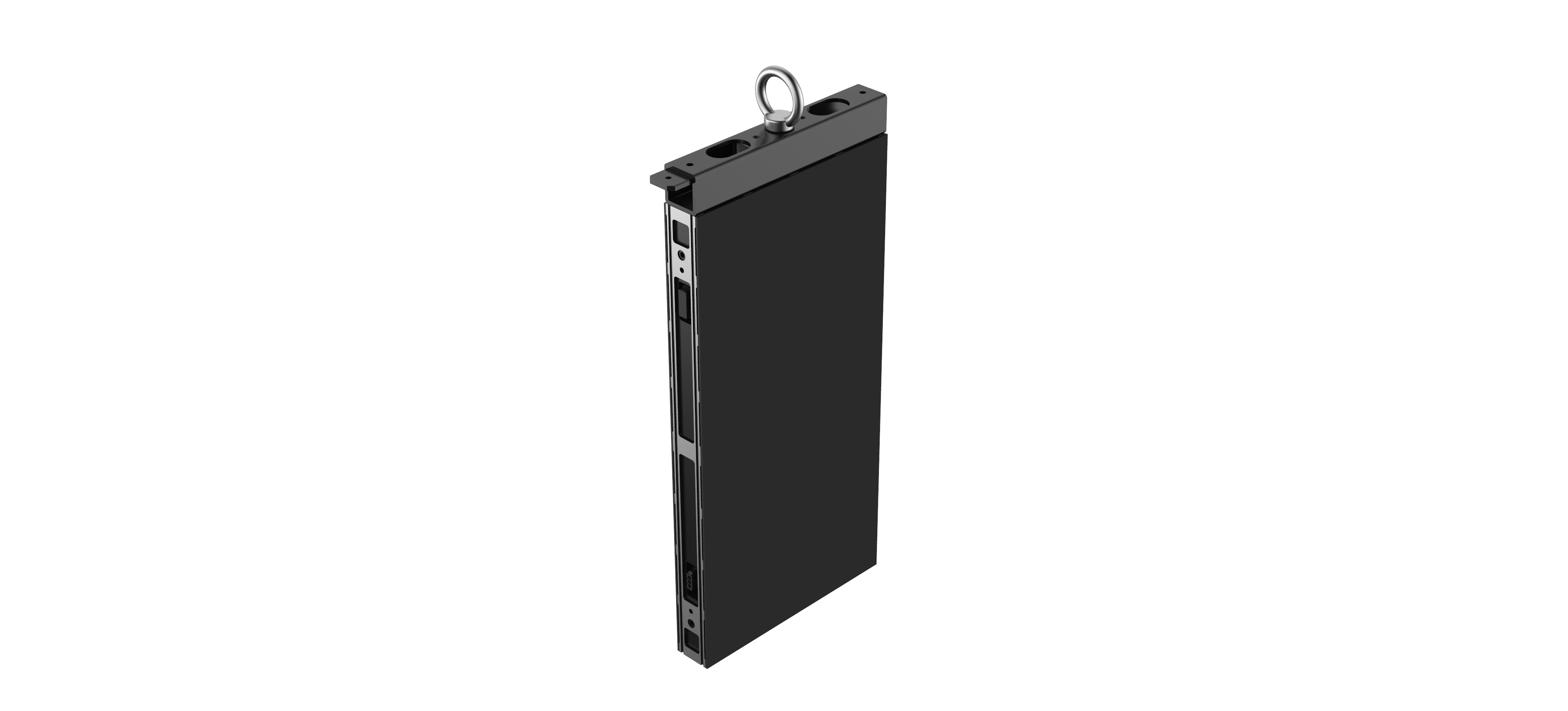

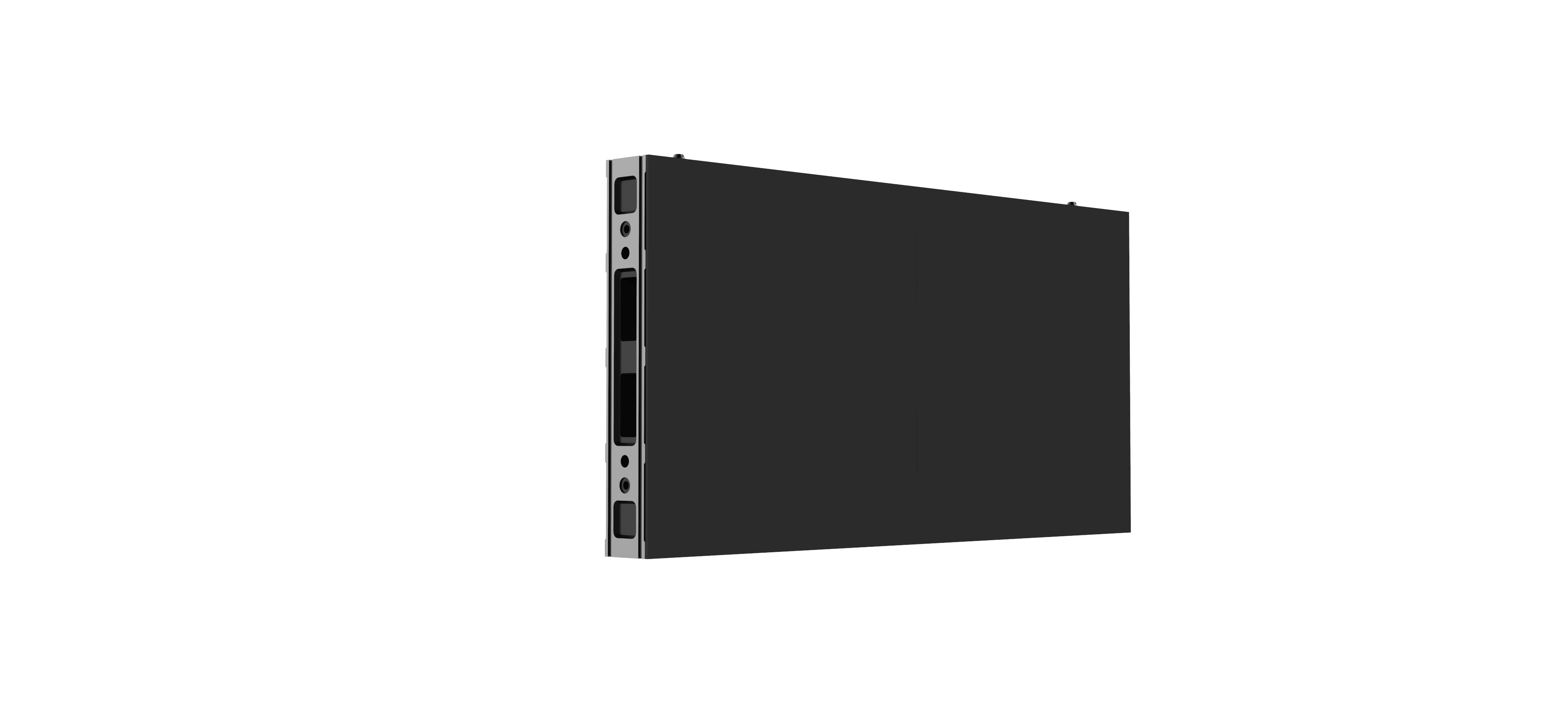

BIM Plus-T/TX Series

Indoor Commercial Dual-side Display


BIM Plus-T/TX Series

Indoor Commercial Dual-side Display



01
Dual Sides, Twin Impact

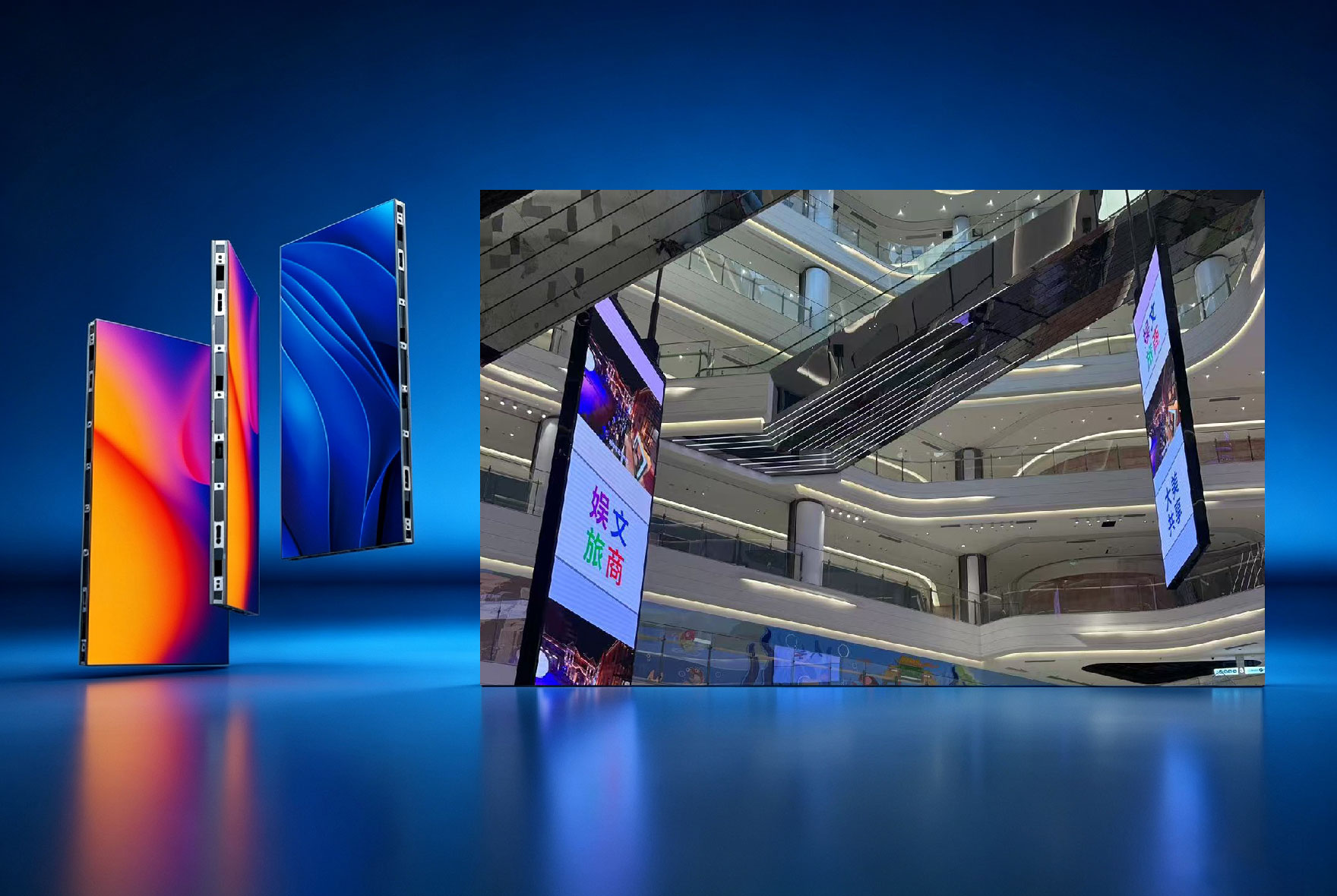

Switch between single-side(BIM Plus-T) and dual-side(BIM Plus-TX) mode for various applications

Dual-side mode(BIM Plus-TX) supports different pixel pitch, brightness levels and independent content on each side


02
Versatile Sizes Meet Different Needs

Three different panel sizes (500*1000/750*250/500*250mm) enable flexible and seamless splicing


03

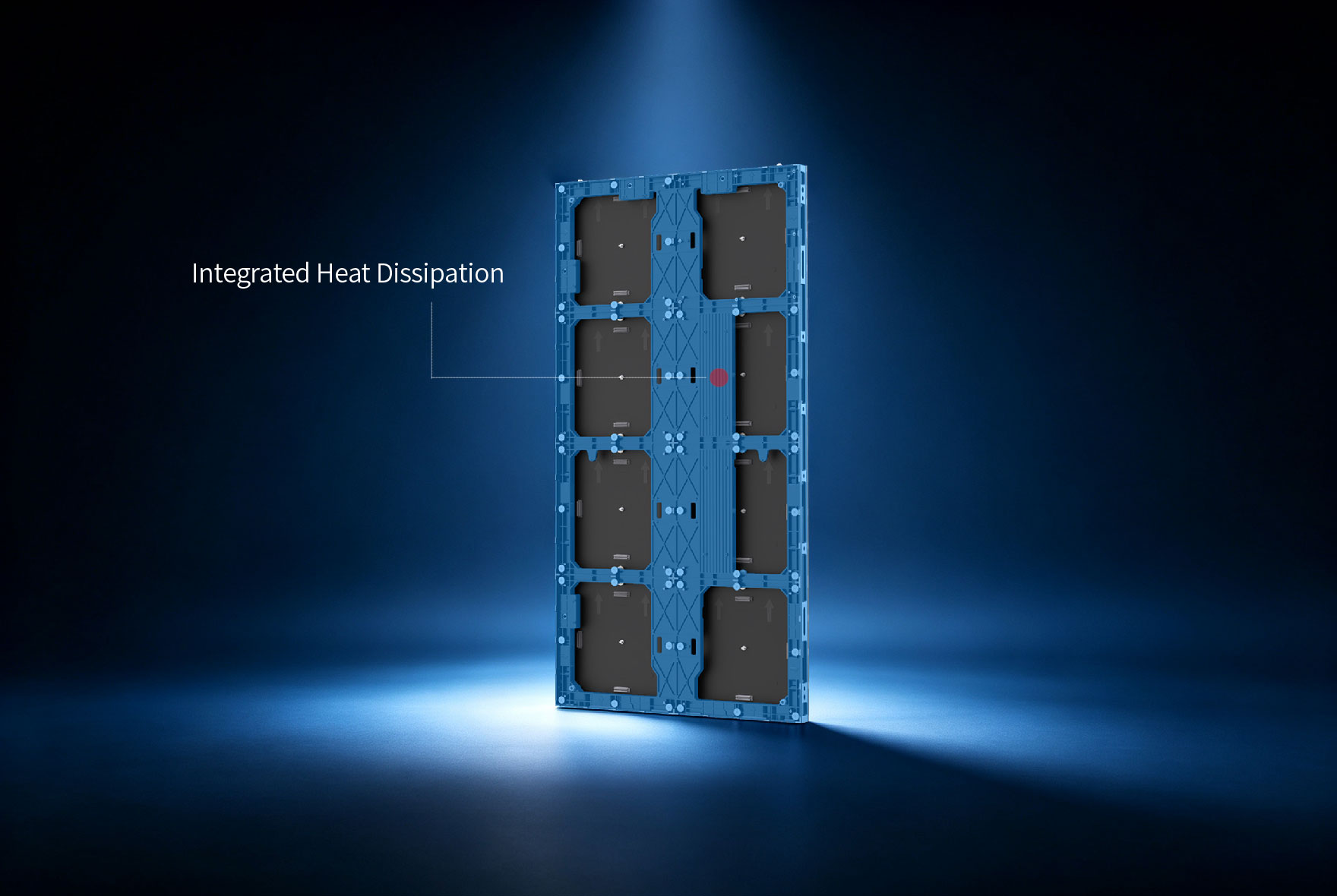

Massive Dissipation Structure

Die-casting aluminum board with heat dissipation ribs forms massive dissipation area, enhancing display uniformity

Multiple side ventilation holes enhance internal airflow


04
Unique Panel Design

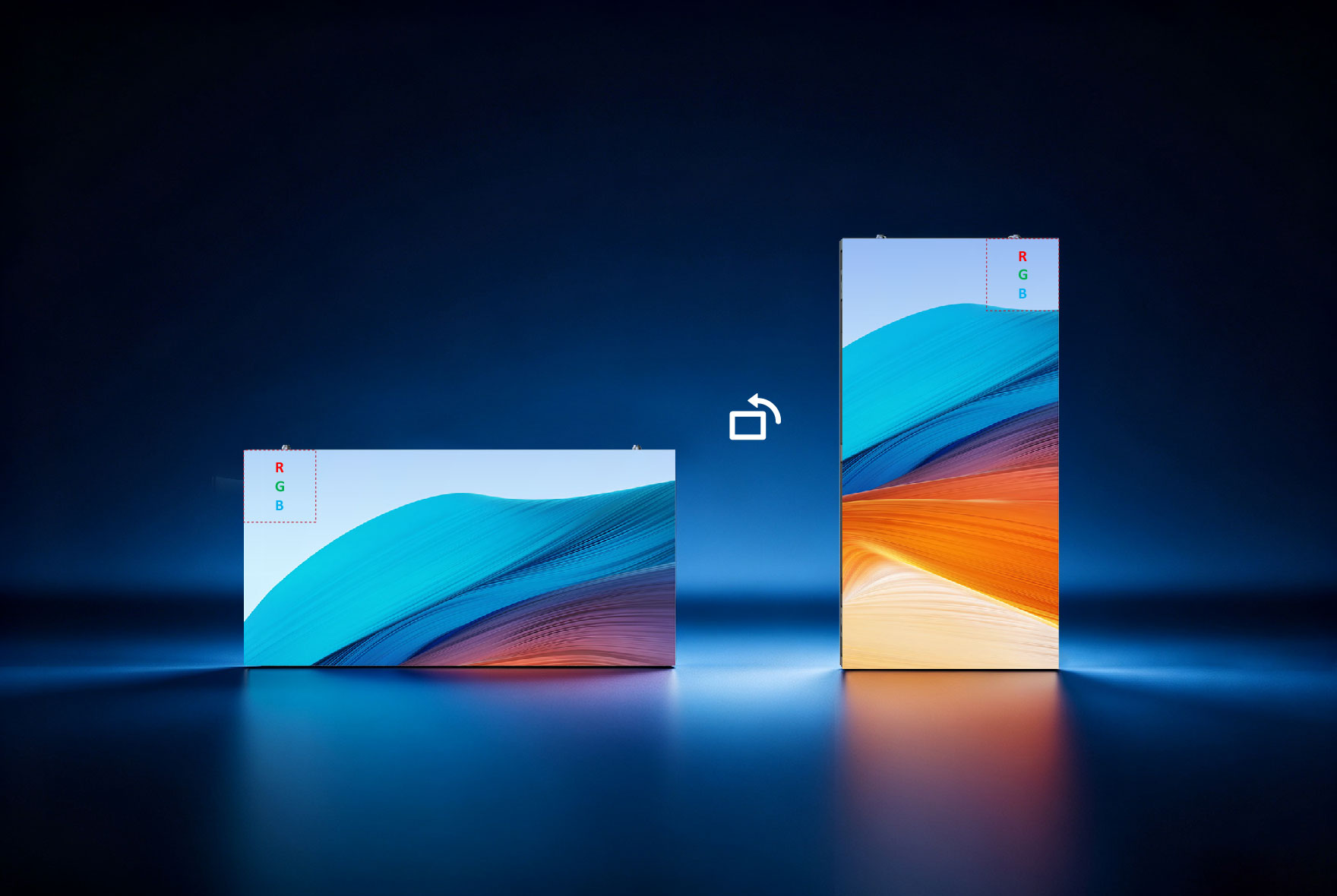

Supports 90°rotation with highly consistent color performance(optional)

Universal modules reduce spare part inventory

26kg/㎡ lightweight and 45mm thin cabinet reduces transportation & installation costs


05
Flexible Installation & Maintenance

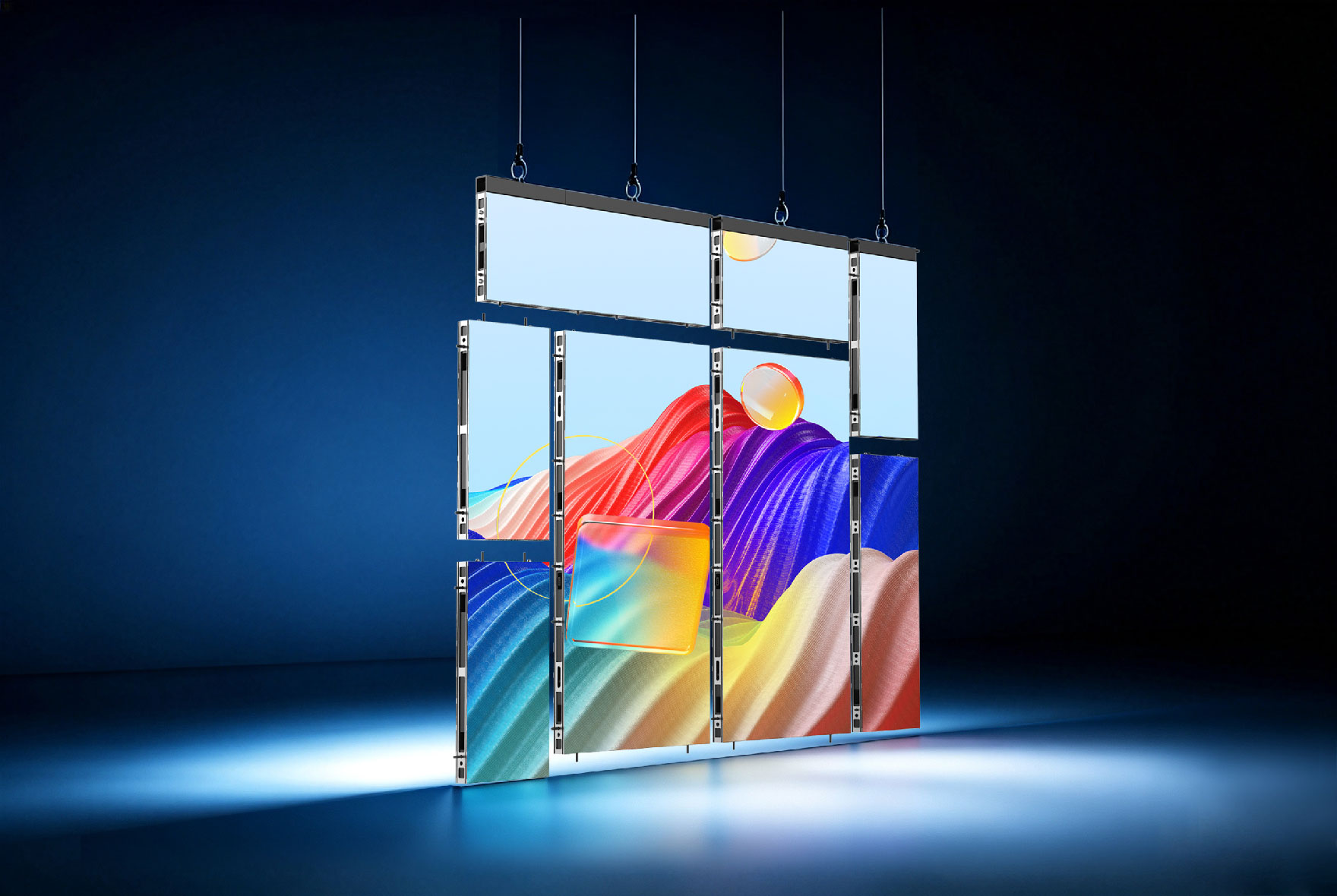

Enables hanging installation(up to 10 meters)

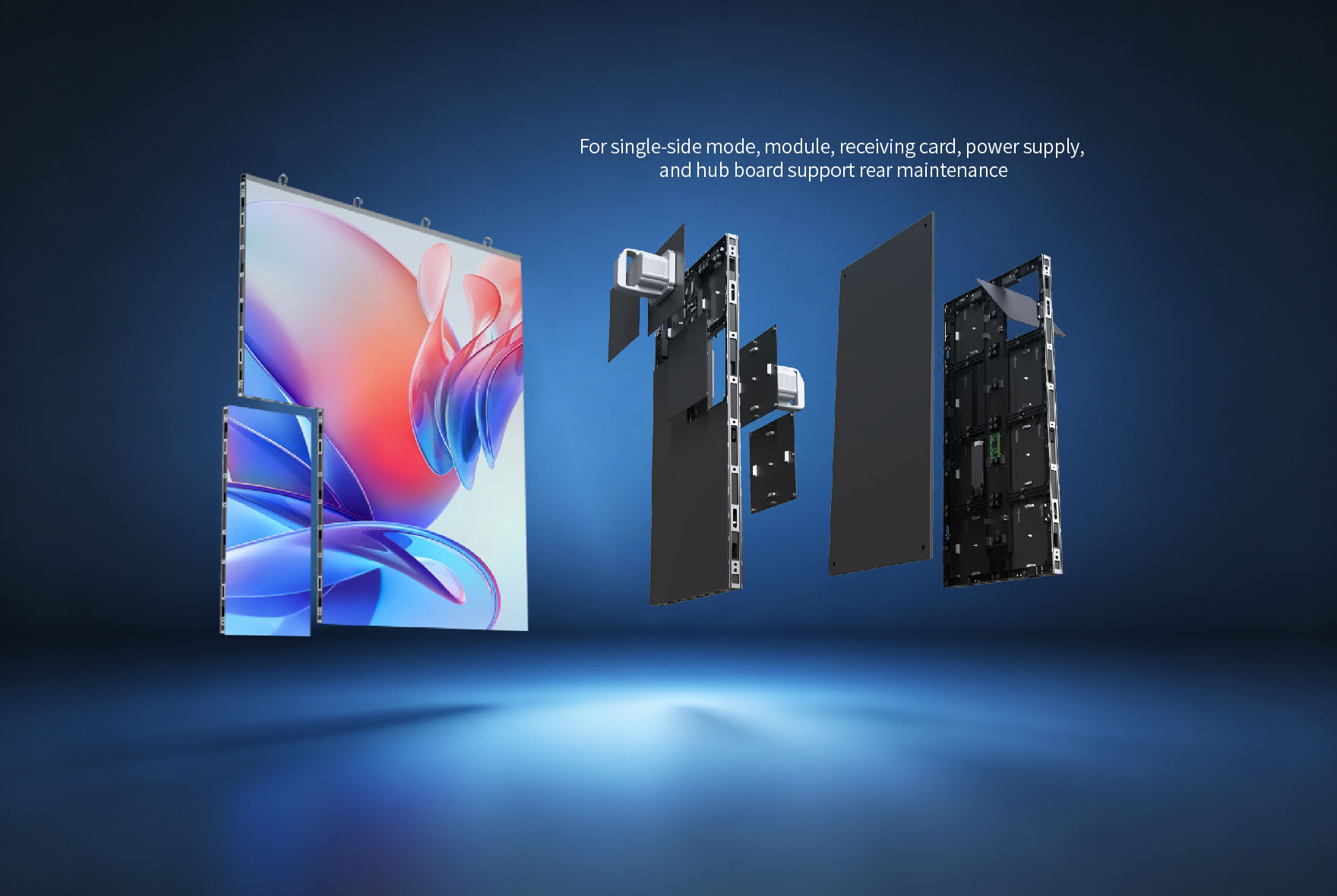

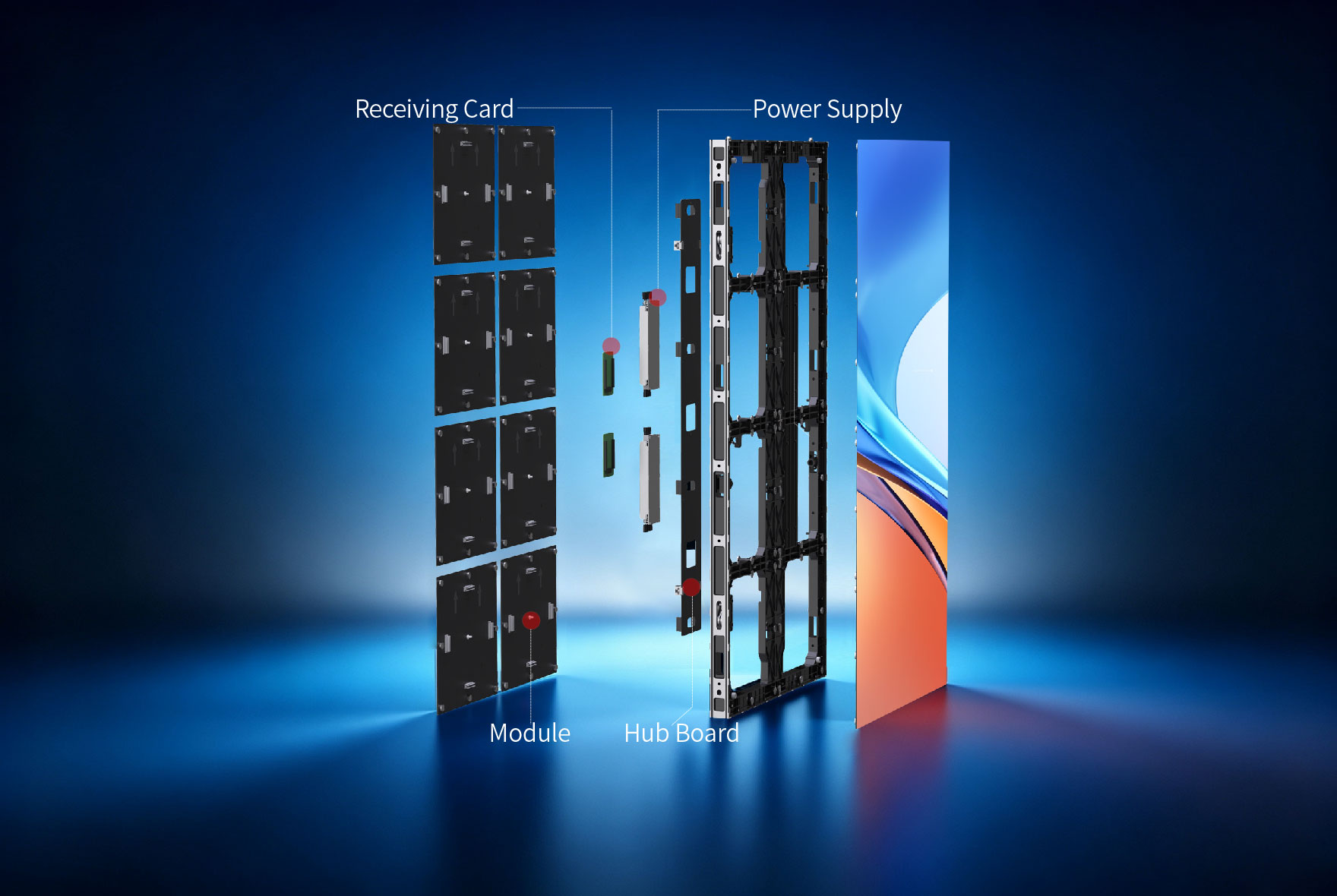

Supports front maintenance for dual-side mode(BIM Plus-TX) , rear maintenance for single-side mode(BIM Plus-T)


06
Stable Wireless Connection

Wireless module connectivity ensures efficient installation and maintenance, and secures higher stability during prolonged use

Parameter
      Display Mode
Single side
Double side
Model
BIM Plus-T1.9
BIM Plus-T2.6
BIM Plus-TX1.9
BIM Plus-TX2.6
Pixel Pitch 1.9 2.6 1.9 2.6
Panel Size W*H*D (mm) 500*1000*43/750*250*43/500*250*43
500*1000*45/750*250*45/500*250*45
Panel Resolution W*H
128*128
96*96
             128*128
96*96
Panel Material
Die-Casting Aluminum
Die-Casting Aluminum
Weight (Kg/pc) 13/6/4 13/6/4
Brightness (nits)
800/3500
      800/3500
           800/3500
800/3500
Serviceability Rear
Front


* Please kindly note that product specifications may vary according to different configurations. All rights reserved.
