Dazzle Ⅳ Series


Indoor and Outdoor Rental LED Display

Dazzle Ⅳ Series


Indoor and Outdoor Rental LED Display

01
Indoor & Outdoor Applications

Dazzle IV Series supports both indoor and outdoor use for different styles of staging and events.


02

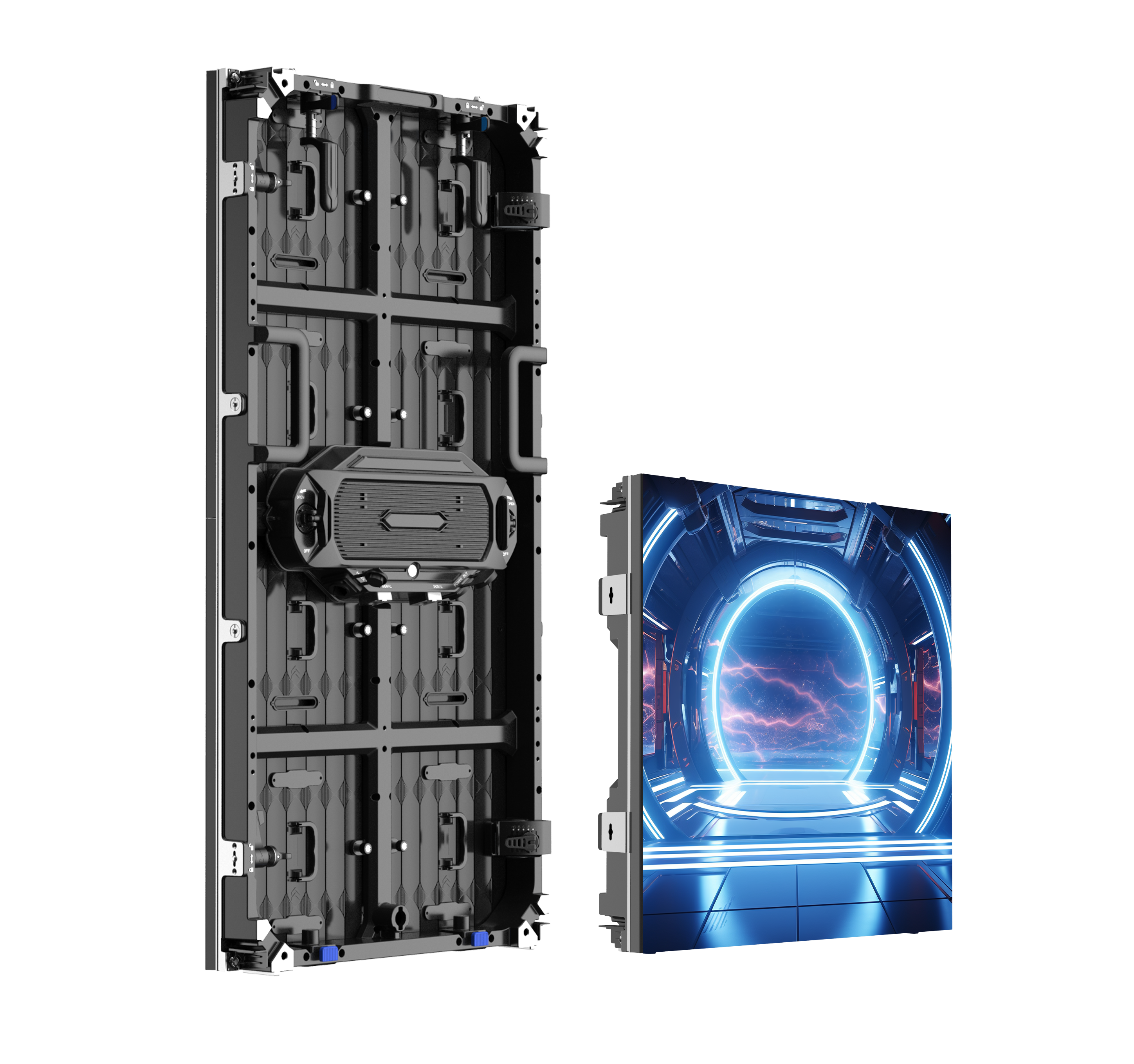

Universal Modules & Power Boxes

500*500 and 500*1000 panels: Universal modules and power boxes with the same power supply and hub card for only one kind of spare part.


03
Fast Installation

Fast installation with 1s up-down locks and positioning pins
Corner protectors and arc locks (optional)
Various accessories to choose for your needs


04
Easy Maintenance

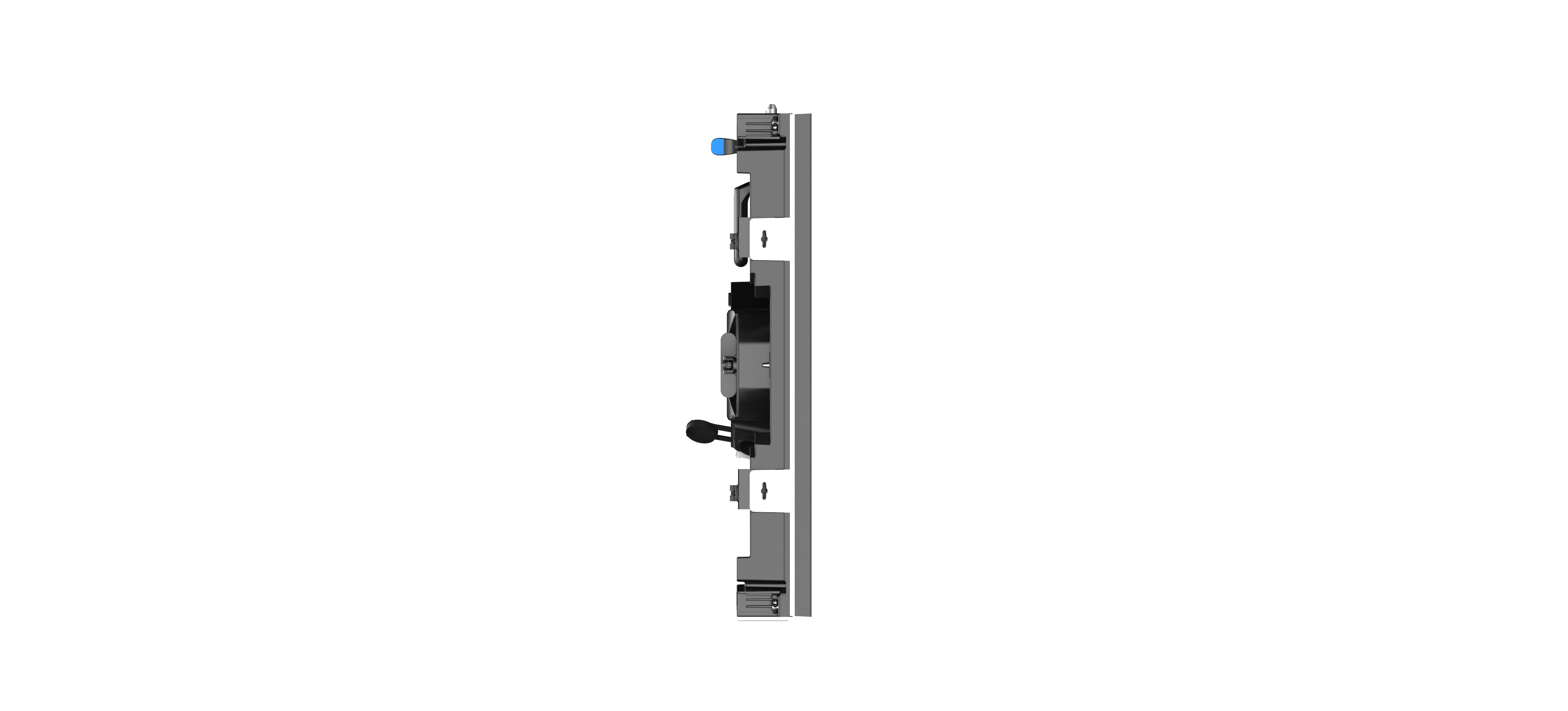

Panels and power box support rear maintenance
All-in-one power box: power supply, receiving card, and hub card for fast maintenance


05
Creative Splicing

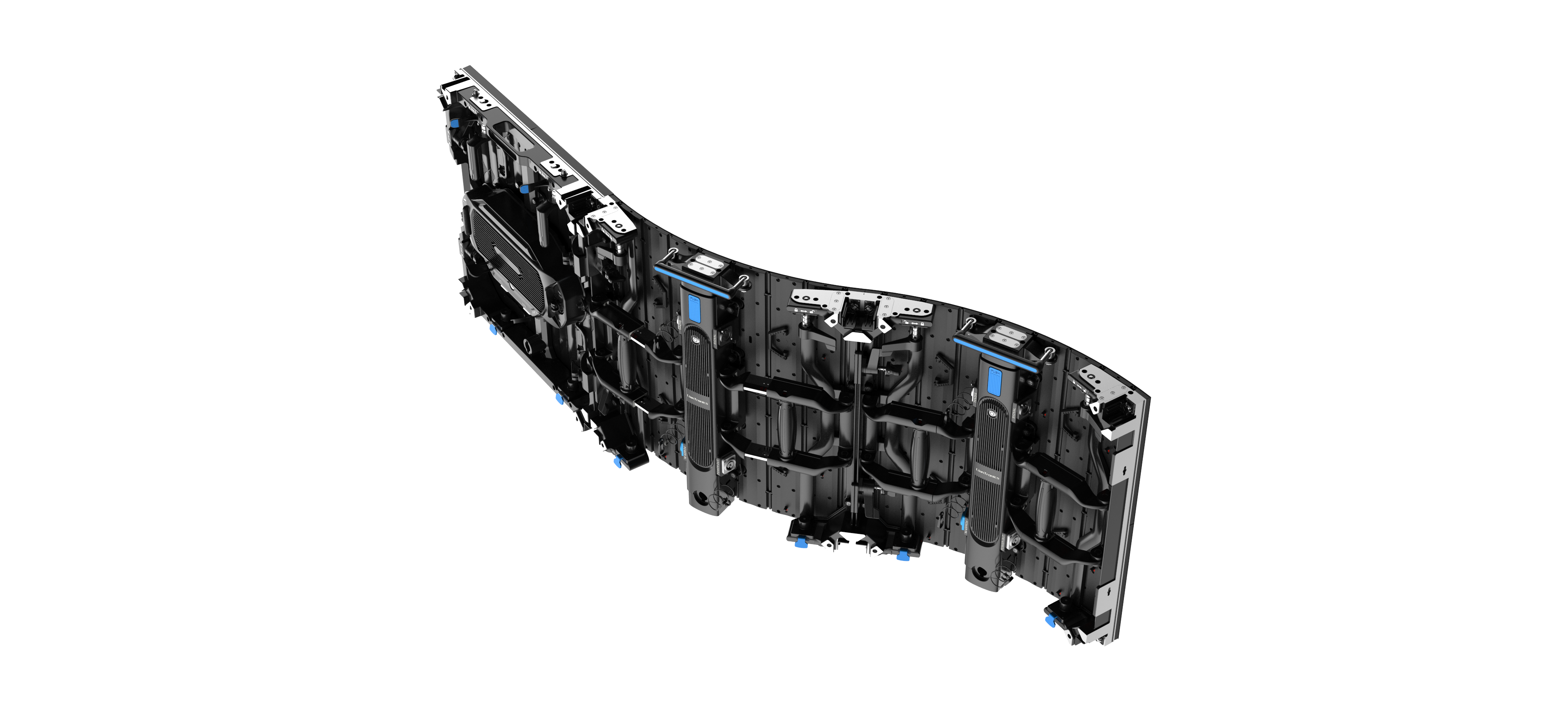

Optional curved splicing for versatile creative shapes

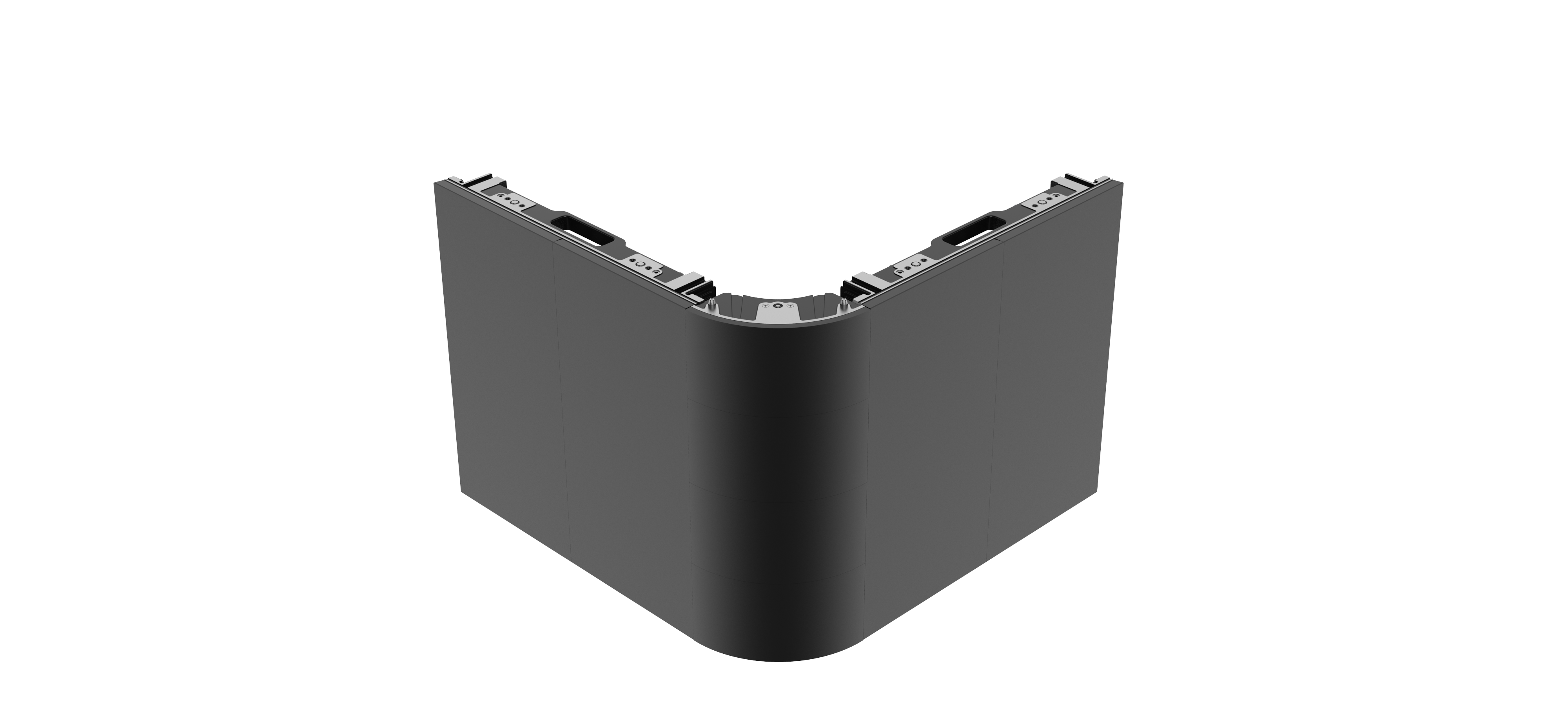

Mixed splicing with E-Corner Series for L-shaped splicing


06
Flexible Splicing

Allow flexible up-down splicing between 500*500 and 500*1000 panels
Optional climbable structures for convenient setup
Stacking and hanging with 10m maximum height

Parameter
Model DAⅣ2.6 DAⅣ3.9T
Pixel Pitch (mm) 2.6 3.9
Panel Size W*H*D (mm) 500*500*73/500*1000*73 500*500*73/500*1000*73
Panel Resolution W*H 192*192/192*384 128*128/128*256
Panel Material Die-casting Aluminum Die-casting Aluminum
Weight (Kg/pc) 8.5/15 8.5/15
Brightness (nits) 900 4000
Serviceability Rear Rear
* Please kindly note that product specifications may vary according to different configurations. All rights reserved.
