Hercules Series
Outdoor LED Digital Billboard
High Energy Efficiency | Unrivaled Brightness | Ultimate Visuals
15%
Power-Saving
10000nits
High Brightness
22mm
Thinness
90Kg/㎡
Weight

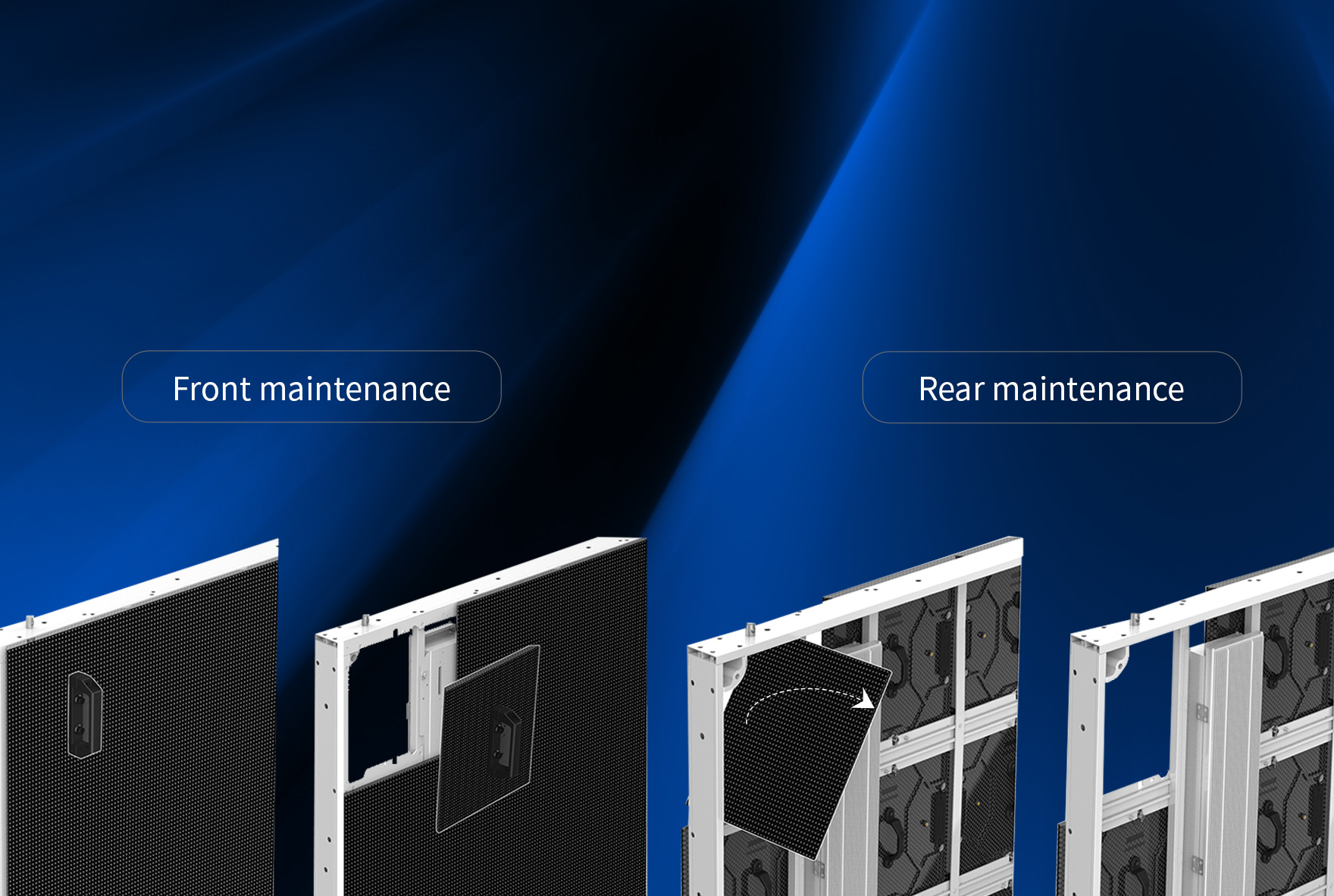

Easy Maintenance
All the components can be maintained from both front and rear.

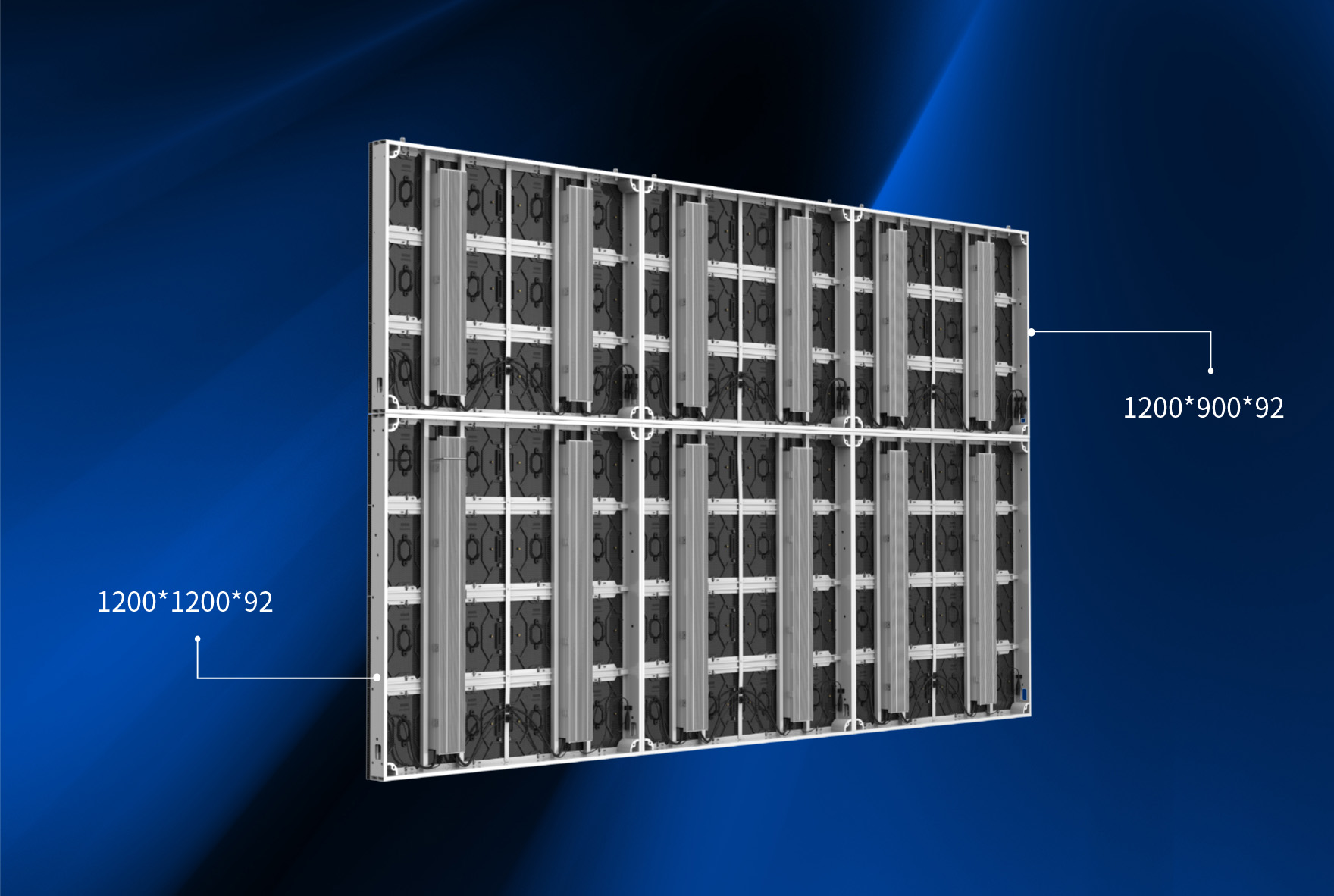

Fit Your Space Just Right
Multiple size options, cabinet mixed assembly and direct wall-mounting installation are all available to meet your various specific spatial needs.

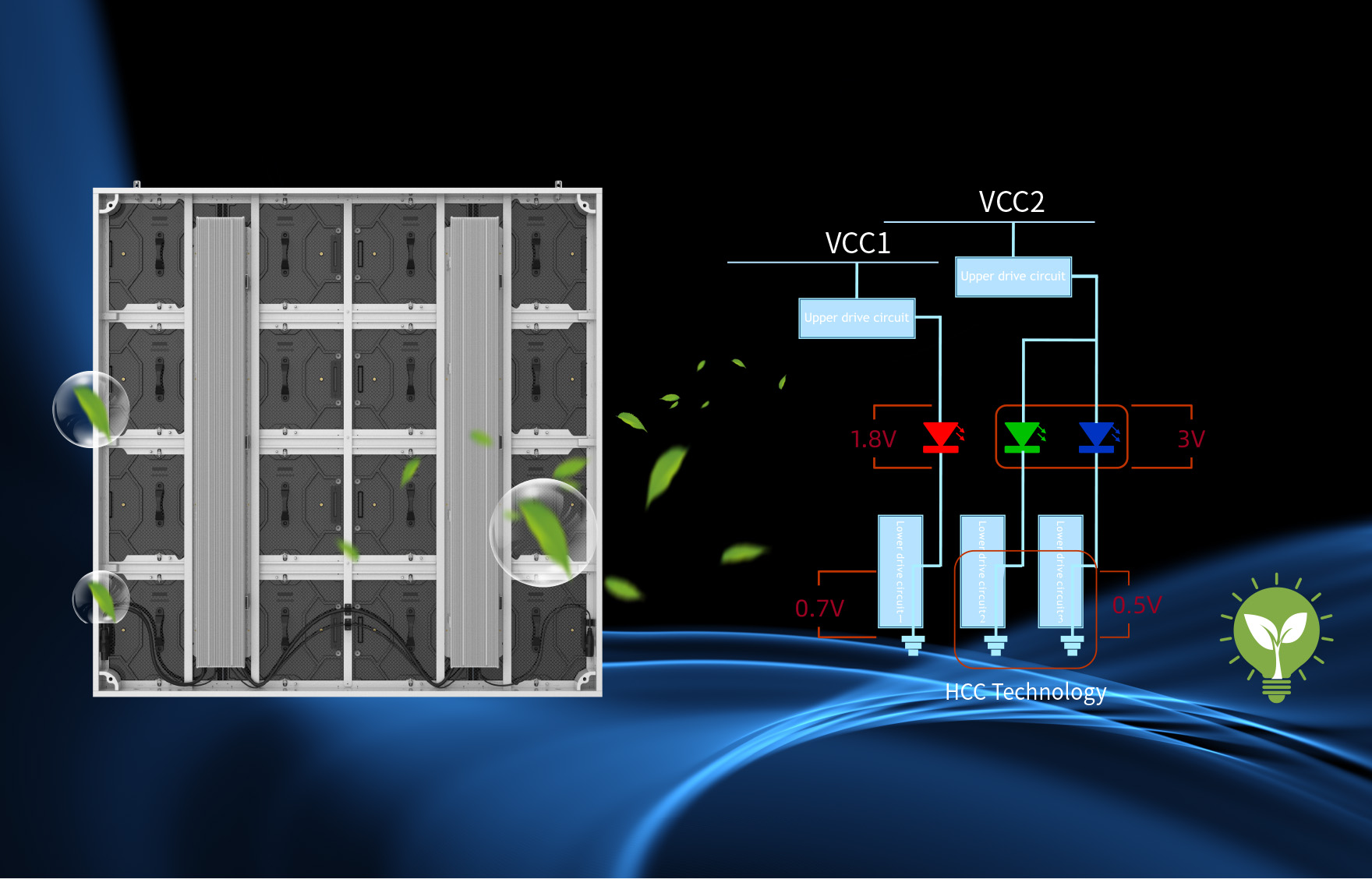

High Energy Efficiency
With dual-channel voltage input, High-powered Common Cathode （HCC) Technology reduces power consumption by 15% and improves power saving capability.
Unrivaled Brightness
Up to 10000nits high brightness ensures sharp and natural-looking images even under direct sunlight or complex outdoor ambient light.

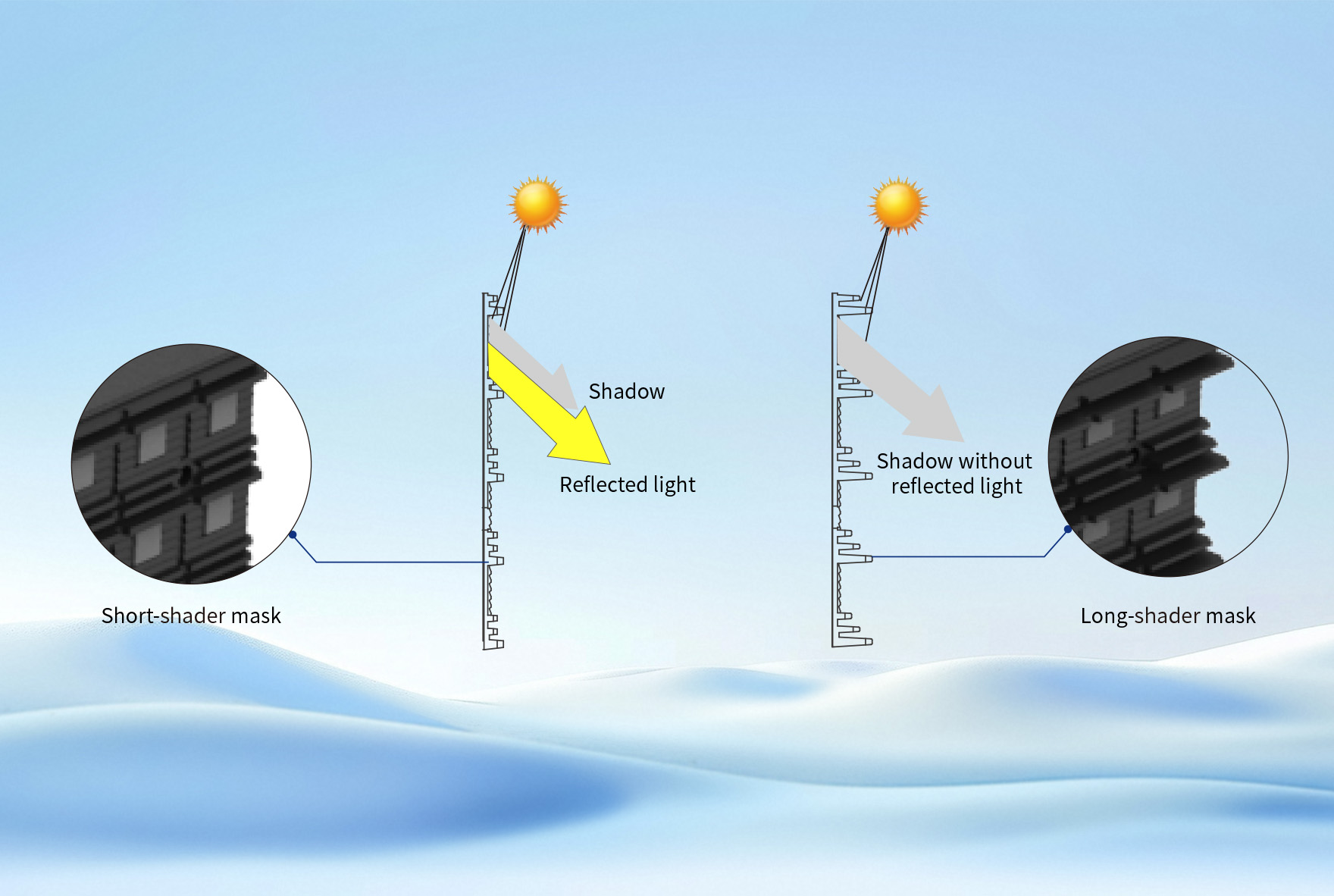

Ultimate Visuals
atented long-shader mask design and the underlying technologies grant Hercules Series unparalleled high contrast ratio and high refresh rate, delivering smooth broadcasting with more color subtlety, shading, and saturated colors.

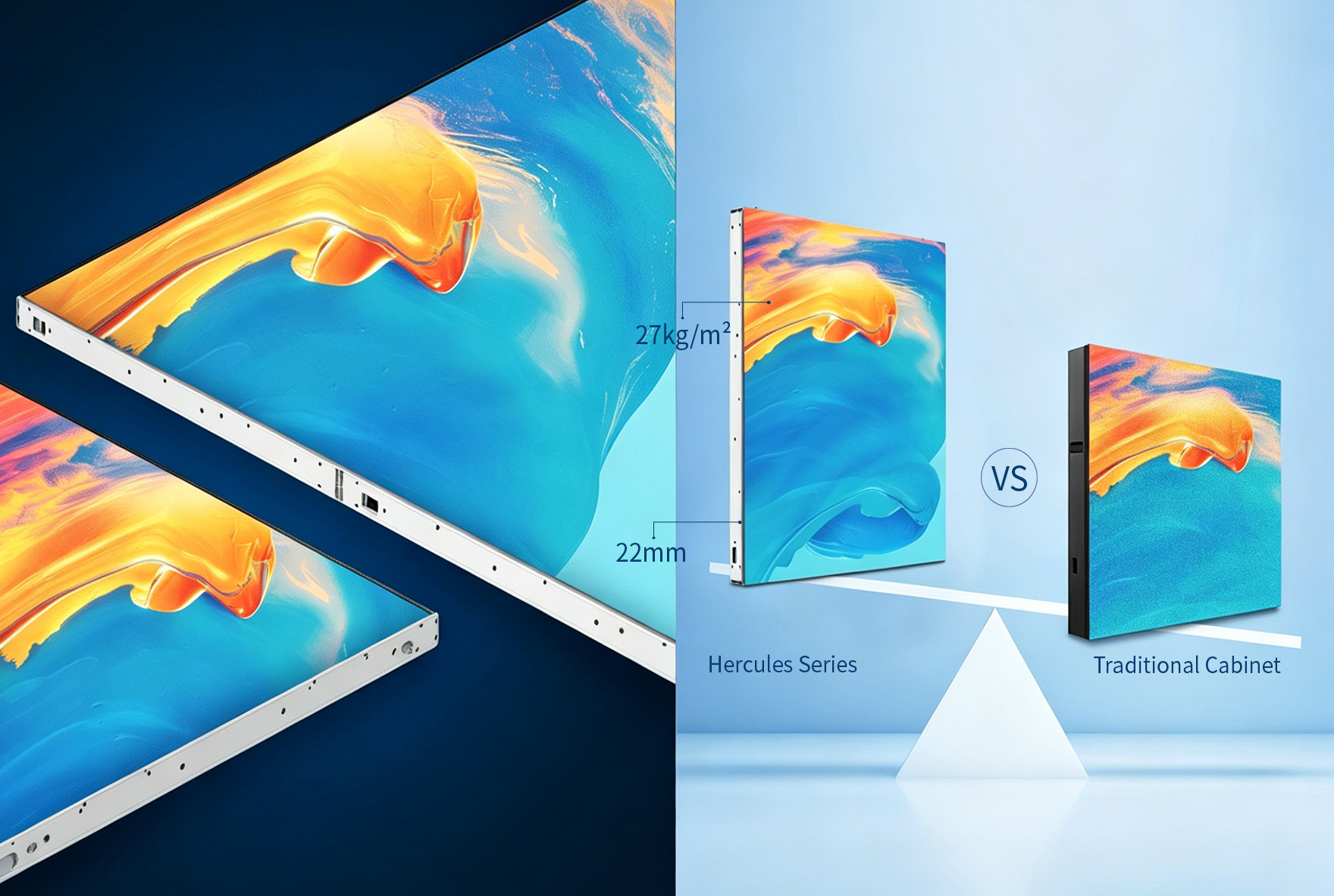

Ultra Thin & Light
Compared with conventional cumbersome outdoor billboard cabinet, Hercules Series lightweight body guarantees structure safety with less building load while reducing labor and transportation costs.
Product Specifications
*Swipe right to see all
| Model | Hercules6.8 | Hercules8.3 | Hercules10 |
| Pixel Pitch (mm) | 6.8 | 8.3 | 10 |
| Panel Resolution | 176*176 / 176*132 | 144*144 / 144*108 | 120*120 / 120*90 |
| Panel Size (mm) | 1200*1200*92 / 1200*900*92 | 1200*1200*92 / 1200*900*92 | 1200*1200*92 / 1200*900*92 |
| Panel Weight (kg/m2) | 27 | 27 | 27 |
| Module Size (mm) | 300*300 | 300*300 | 300*300 |
| Module Resolution | 44*44 | 36*36 | 30*30 |
| Brightness (nits) | 7000 | 10000 | 10000 |
| Serviceability | Panel Material | Panel Material | Panel Material |
| Panel Material | Front and Rear | Front and Rear | Front and Rear |
