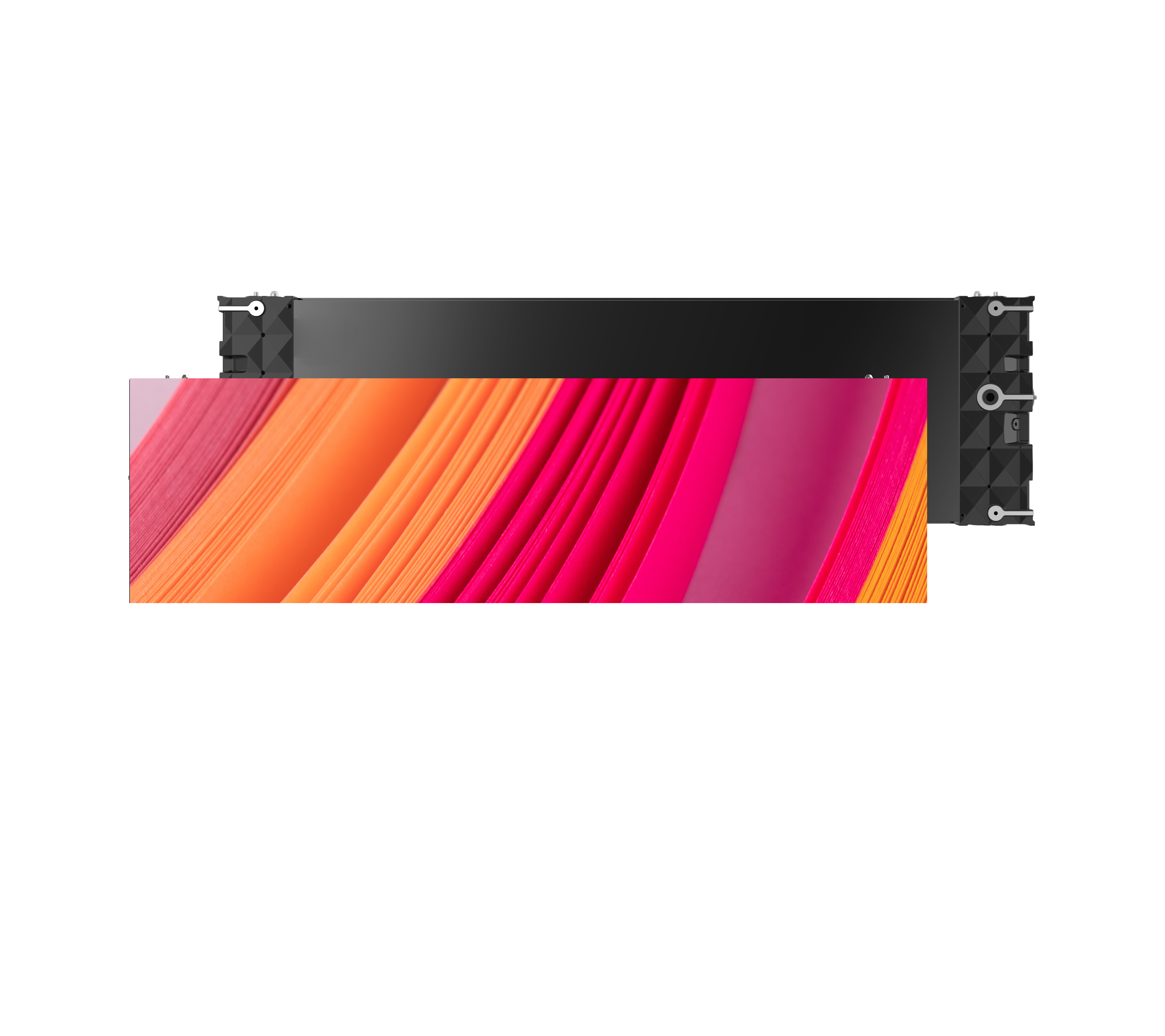

BIM Pro Series
Proven 16:9 Indoor Fixed LED Display
Light & Thin Ever | Higher Stability | Front Serviceability with Ease | 16:9 Golden Ratio | Customized Bevels, Flexible Splicing

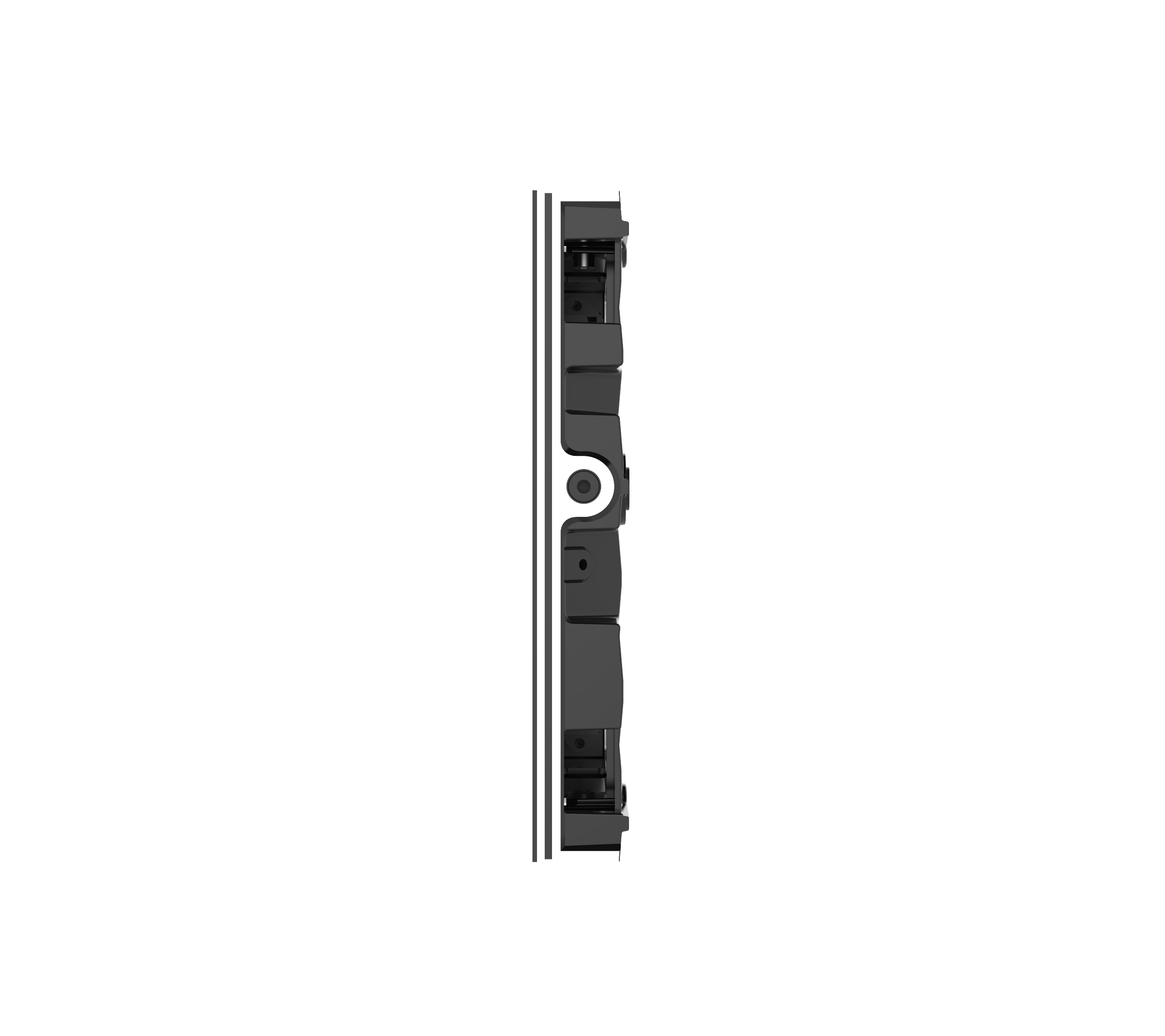

Light & Thin Ever
23Kg/㎡ and 42mm in thinness per panel cause no mounting burdens to your space
Higher Stability
The upgraded BIM Pro Series simplifies inner structure with cableless connection for higher-efficiency maintenance and less disconnection risk. It also supports dual backup of power and signal for further operation reliability improvement
Front Serviceability with Ease
Modules, power supply and receiving card can be maintained from the front to free your spatial restriction
16:9 Golden Ratio
16:9 aspect ratio inspired, BIM Pro Series allows easy and fast assembly of 2K/4K/8K mainstream LED walls
Various Sizes, Various Installation
BIM Pro Series provides different models with wide-range pixel pitches & various sizes, and furthermore allows installation of different kinds to meet your choice

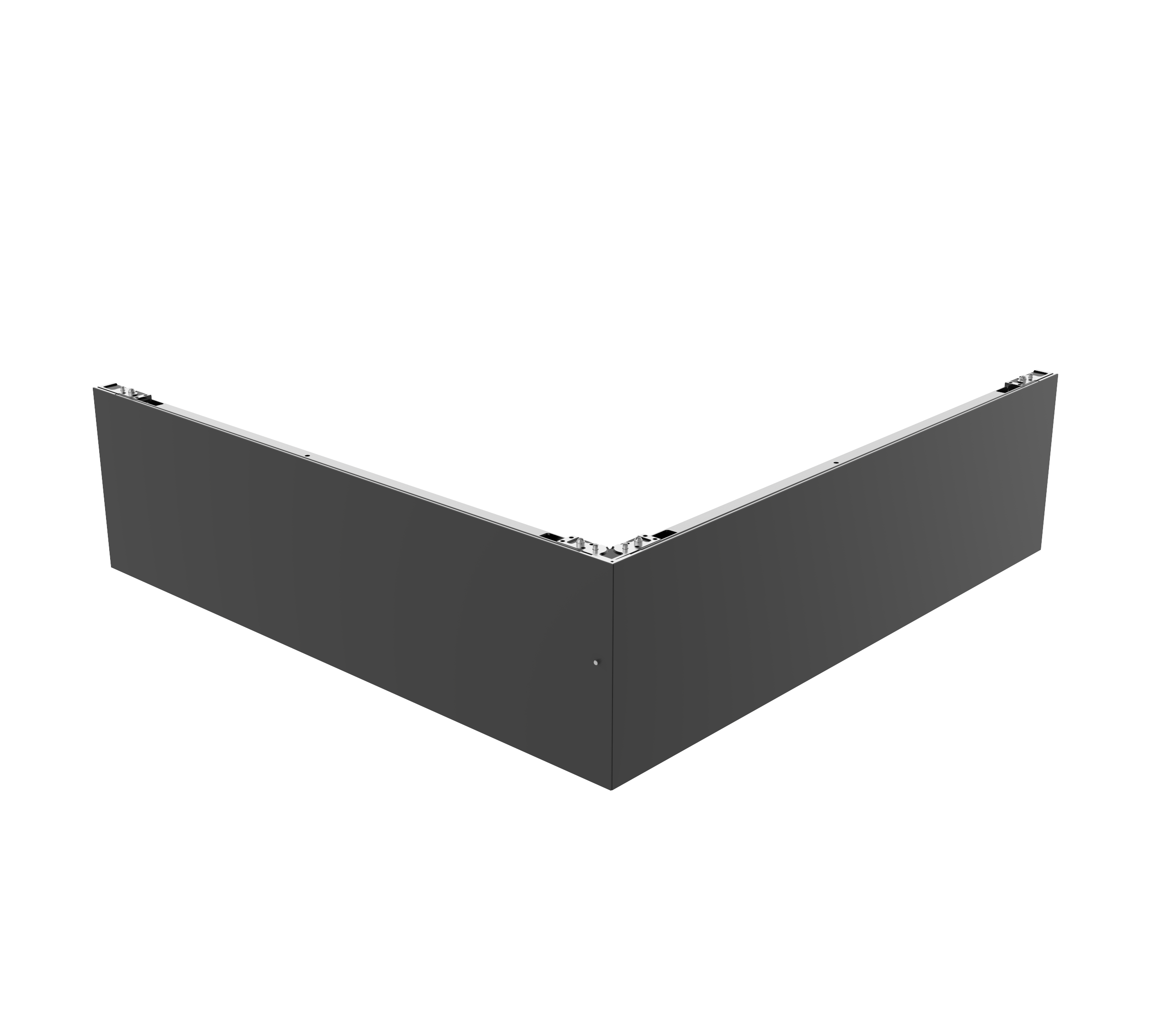

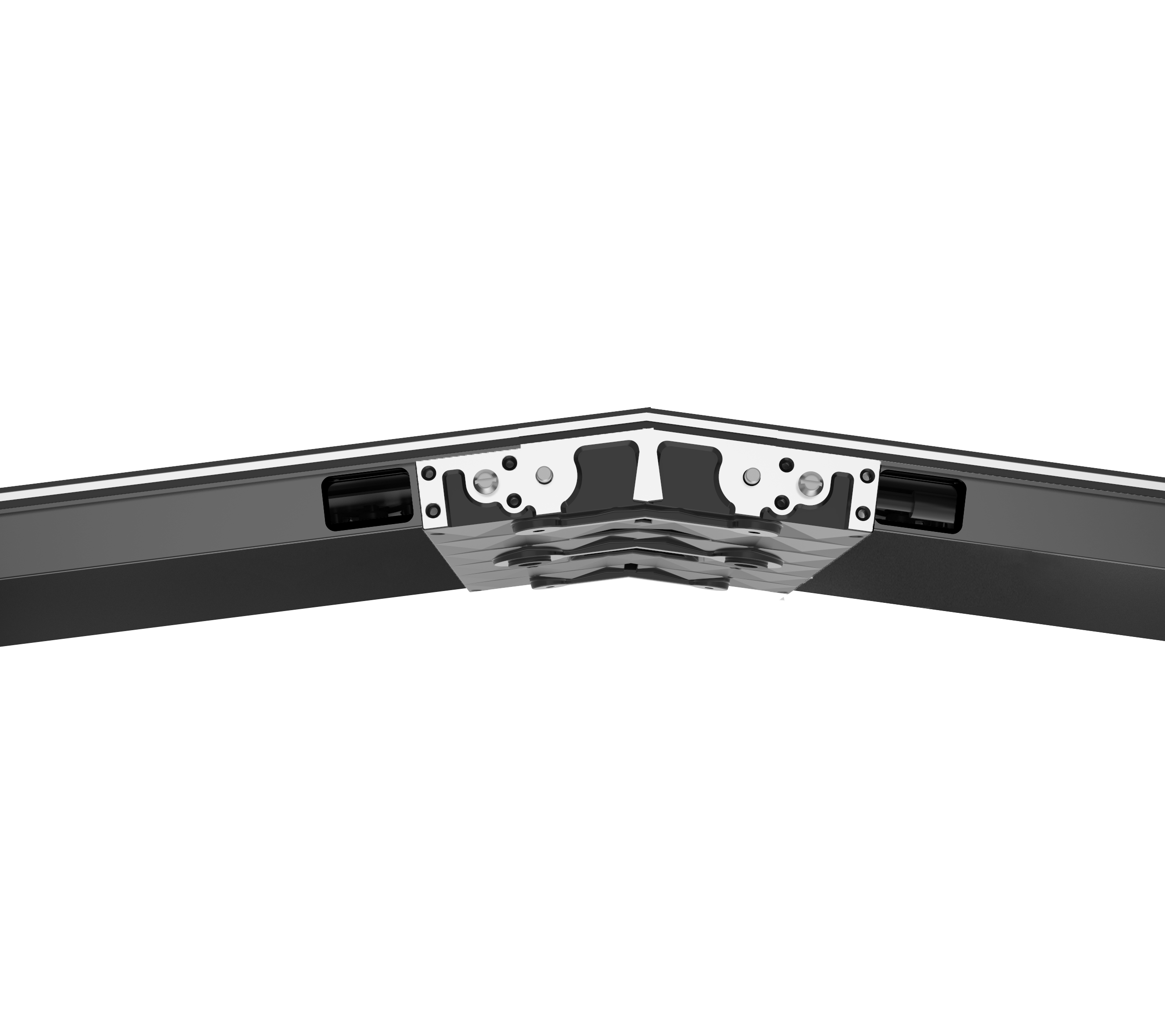

Customized Bevels, Flexible Splicing
Support bevel customization (0°-45°) for L-shaped, concave and convex splicing.
Product Specifications
*Swipe right to see all
| Model | BIM Pro1.6 | BIM Pro1.9 | BIM Pro2.6 | BIM Pro4 |
| Pixel Pitch (mm) | 1.6 | 1.9 | 2.6 | 4 |
| Panel Size (mm) | 1024*288*42 / 768*288*42 / 512*288*42 | |||
| Panel Resolution | 640*180/480*180/320*180 | 520*145/390*145/260*145 | 384*108/288*108/192*108 | 256*72/192*72/128*72 |
| Weight (Kg/pc) | 6.8/ 5.6 /4.8 | |||
| Brightness (nits) | 800 | 800/4000 | 800/3000 | 900/3000 |
| Panel Material | Aluminum extrusions | |||
| Serviceability | Front | |||
